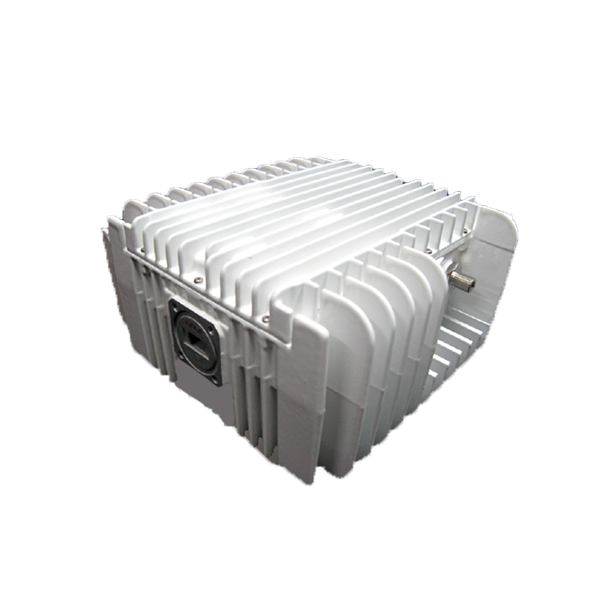

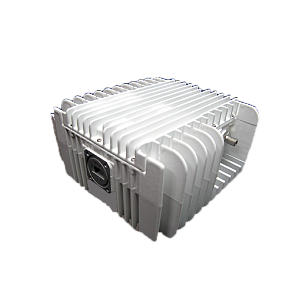

KEY SPECIFICATIONS
|
|
Product Family
|
ELEMENT
|
|
Band
|
Ku-Band
|
|
Output Power (Rated)
|
8W
|
|
Noise Figure
|
60 dB
|
|
Input Frequency - Band 1
|
L-Band: 950 - 1700 MHz
|
|
Output Frequency 1
|
Ku-Band: 13.75 - 14.50 GHz
|
|
|
|
RF SPECIFICATIONS
|
|
Output Power (Saturated)
|
8 W
|
|
Output Power( P1dB)
|
39 dBm min
|
|
Spectral Regrowth
|
-26 dBc
|
|
Noise Power Density
|
-90 dBm/Hz in Tx ; -156 dBm/Hz in Rx
|
|
LO Frequency 1
|
12.80 GHz
|
|
Phase Noise @ 100Hz offset
|
-65 dBc/Hz
|
|
Phase Noise @ 1KHz offset
|
-75 dBc/Hz
|
|
Phase Noise @ 10KHz offset
|
-85 dBc/Hz
|
|
Phase Noise @ 100KHz offset
|
-95 dBc/Hz
|
|
Conversion Gain
|
60 dBm
|
|
Gain Variation over operating band
|
+/- 4 dBm p-p max over full; +/- 1.5 dBm over 54MHz
|
|
Gain Variation over temperature
|
-4 dBm p-p
|
|
Input VSWR
|
2.0 : 1
|
|
Output VSWR
|
2.0 : 1
|
|
Spurious
|
-60 dBc @ 10 dBm (in band) ; -45 dBc @ 10 dBm (out of band)
|
|
AM/PM Conversion @2dB below rated power
|
2.5° / dBm
|
|
|
|
ELECTRICAL SPECIFICATIONS
|
|
Power Consumption @ P1dB
|
75W max
|
|
Power Requirements
|
18 - 60 V
|
|
|
|
INTERFACE SPECIFICATIONS
|
|
RF Input Connector
|
N-50 Ohm
|
|
RF Output Connector
|
WR-75
|
|
|
|
ENVIRONMENTAL SPECIFICATIONS
|
|
Temperature - Operational
|
-40°C to +55°C
|
|
Humidity
|
0-100% condensing
|
|
|
|
PHYSICAL SPECIFICATIONS
|
|
Cooling
|
Finned
|
|
Enclosed Accessories
|
O-ring (1 pc), Screws (4 pcs)
|
|
Dimensions (L x W x H)
|
176 x 169 x 101 mm
|
|
Weight
|
2.7 kg
|
