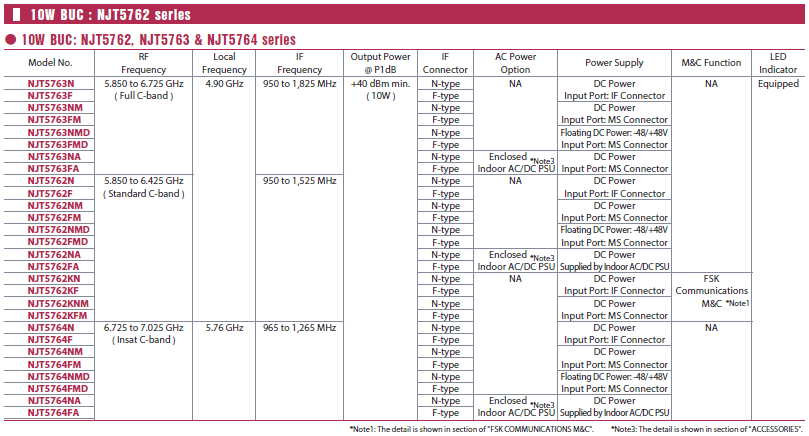

| Model No. | RF Frequency | Output Power | IF Connector | Power Requirement |
| NJT5763N | 5.85 to 6.725 GHz |
+40 dBm min. @ P1dB (10W) |
N-type(50Ω) |
Power Supplied from IF Connector |
| NJT5763F | F-type(75Ω) | |||
| NJT5763NM | N-type(50Ω) |
Power Supplied from MS Connector |
||
| NJT5763FM | F-type(75Ω) | |||
| NJT5763NA | N-type(50Ω) |
Power Supplied by AC/DC PSU PSU Page Link |
||
| NJT5763FA | F-type(75Ω) |

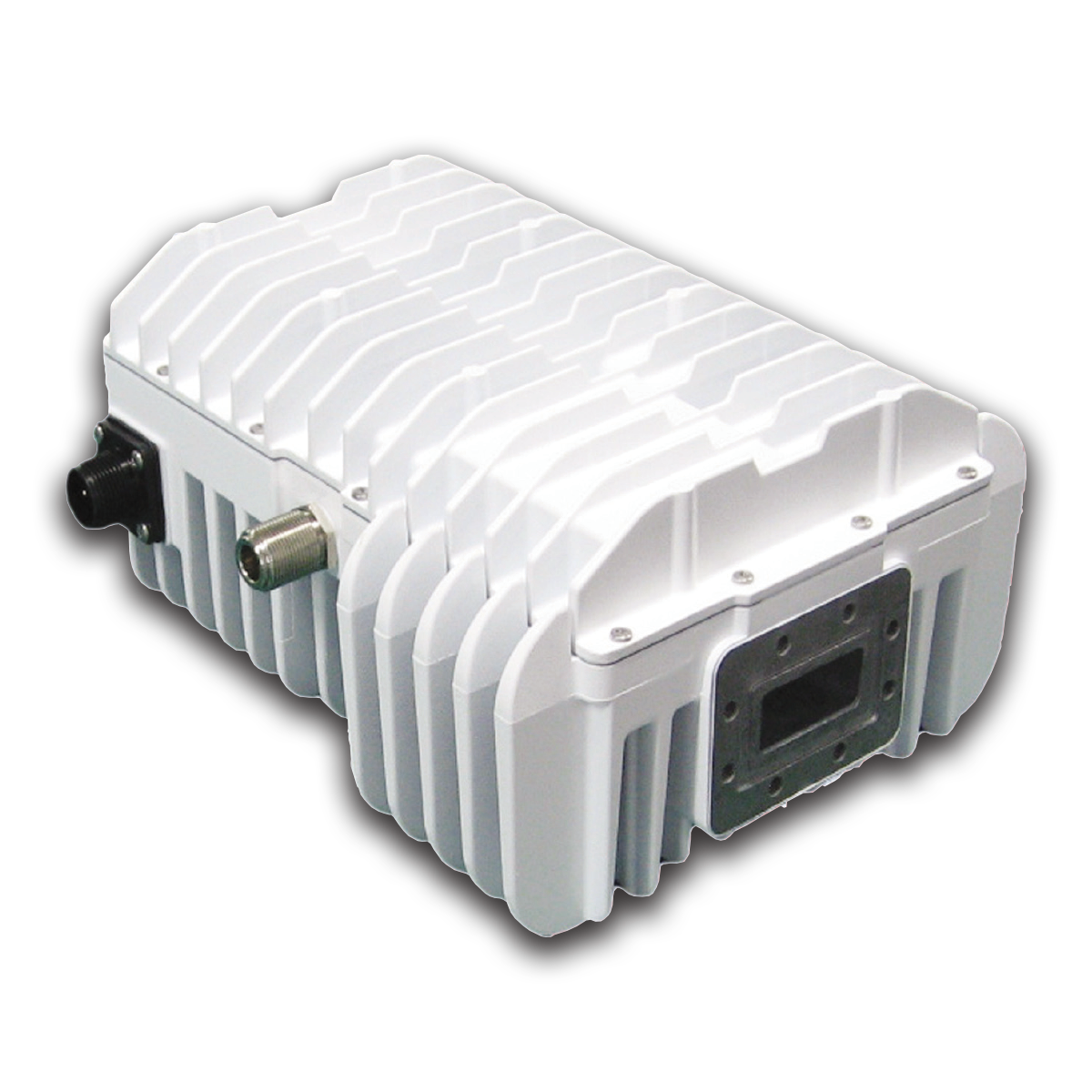

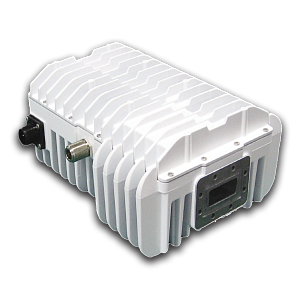

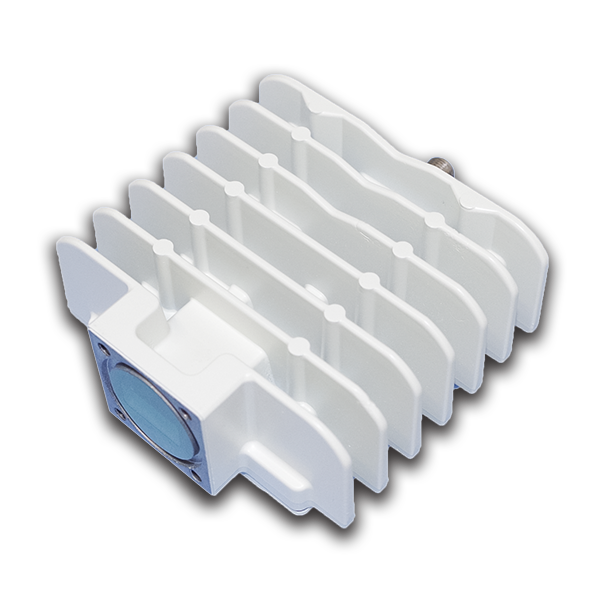

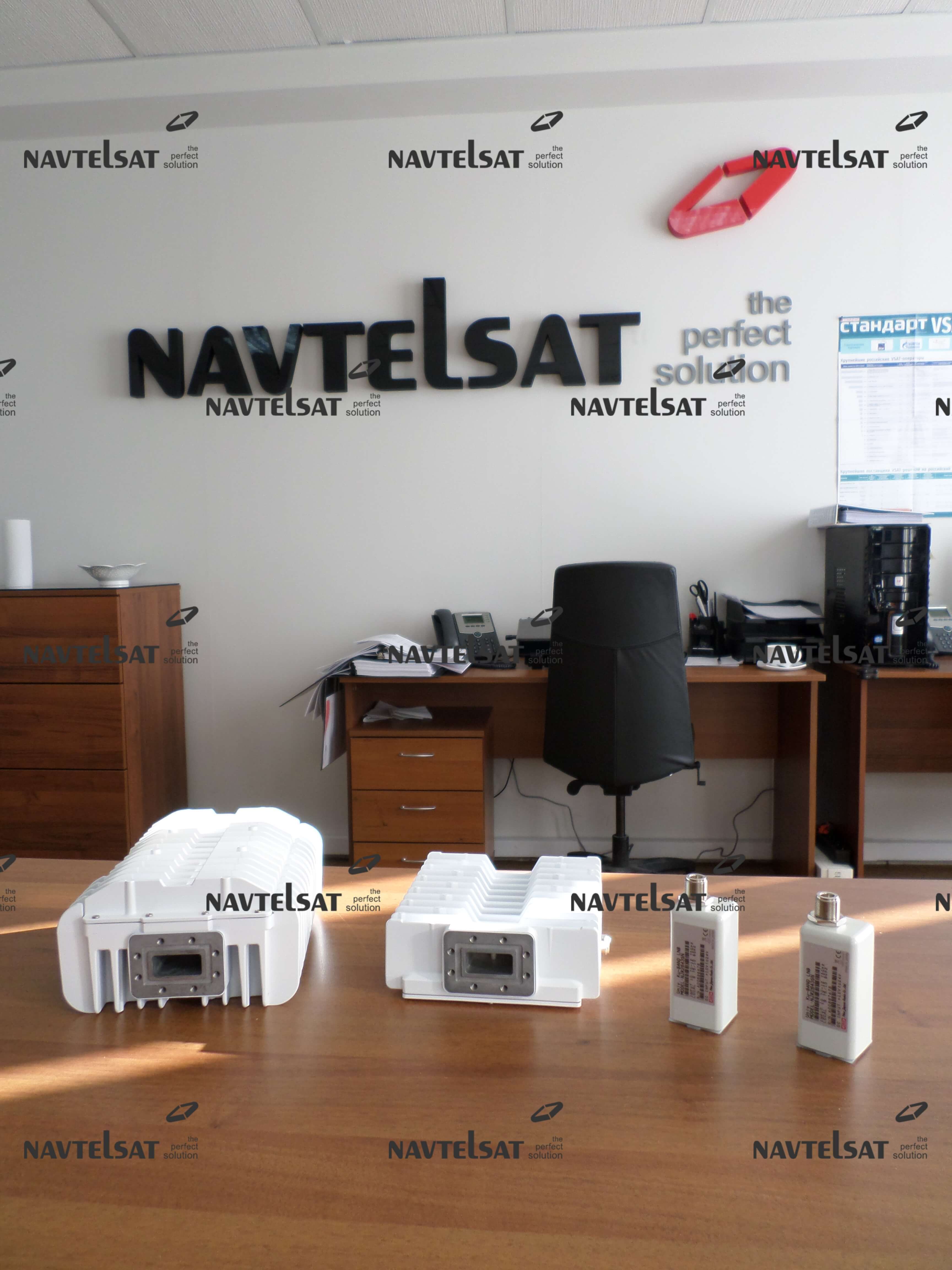

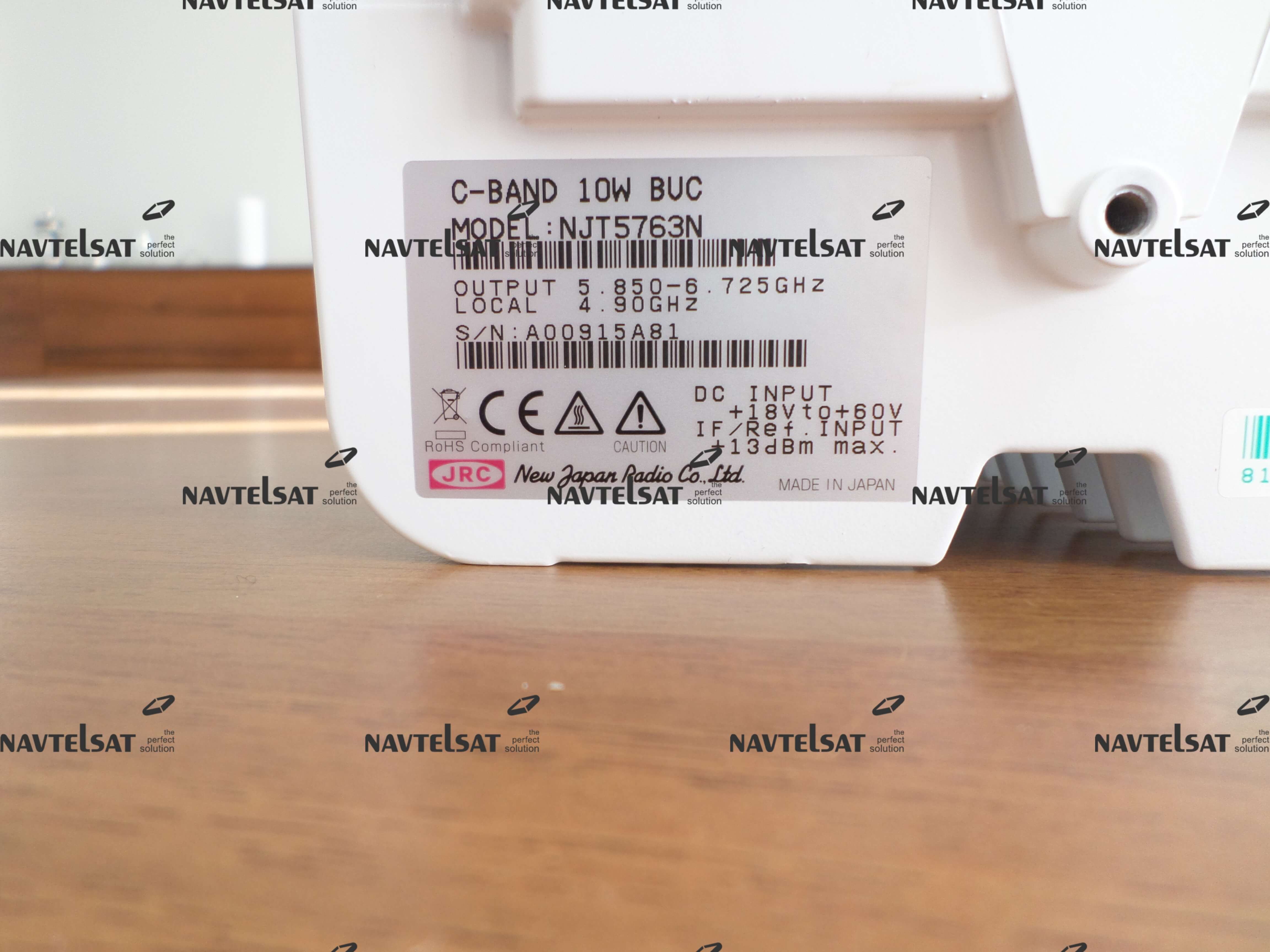

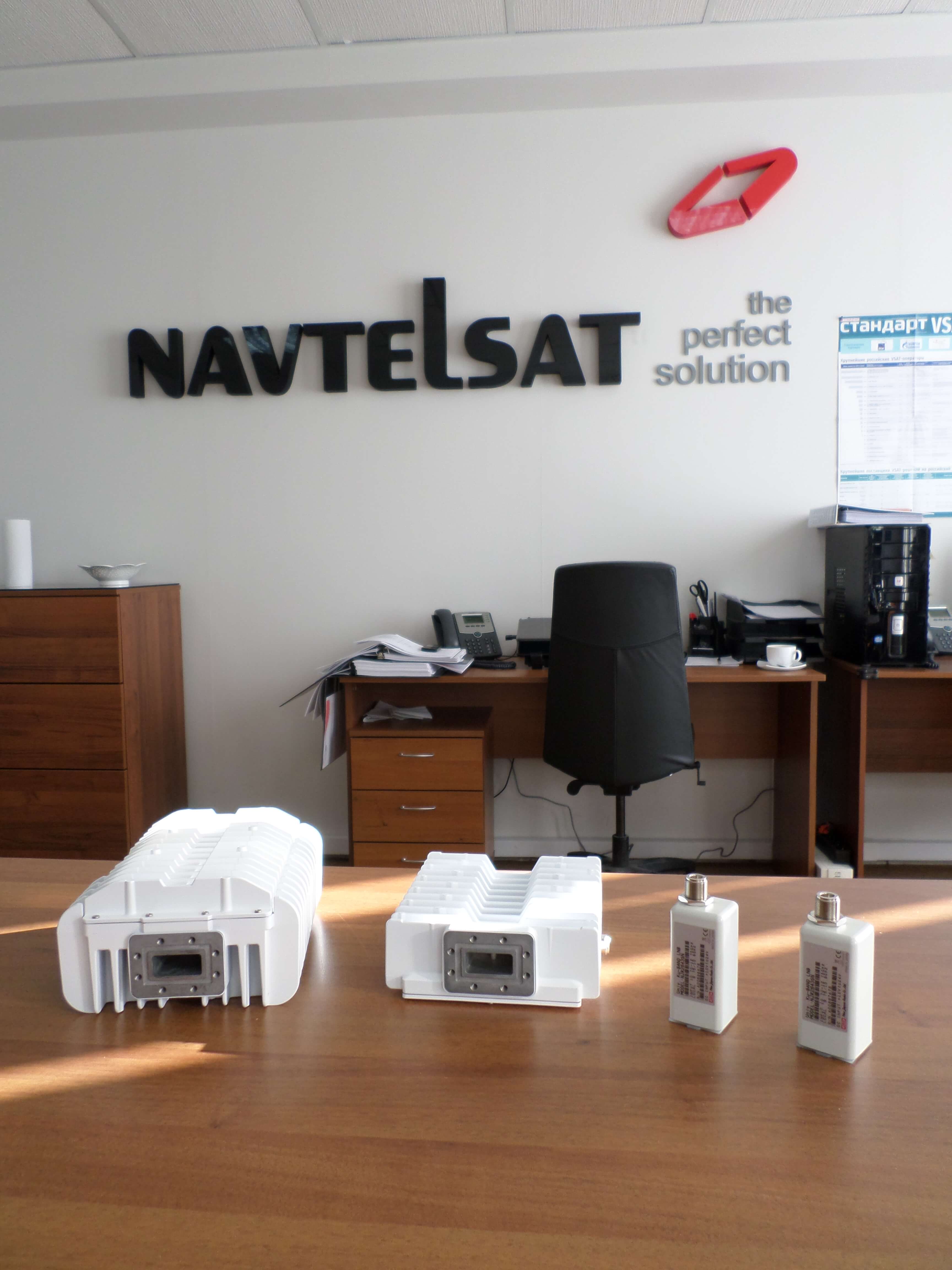

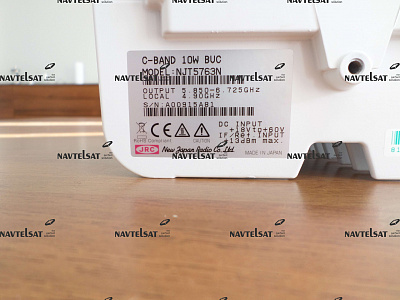

BUC NJT5763 series
- Производитель
- NJRC
- Диапазон
- C-band
- Тип оборудования
- BUC

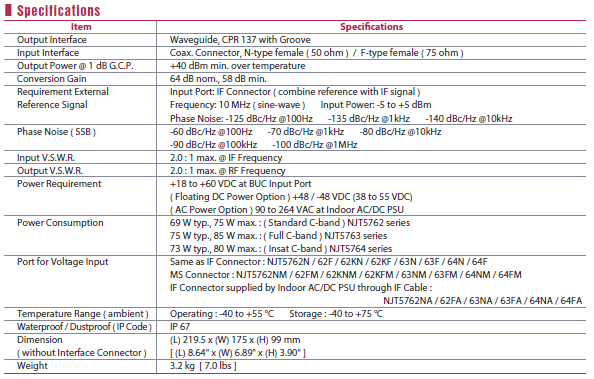

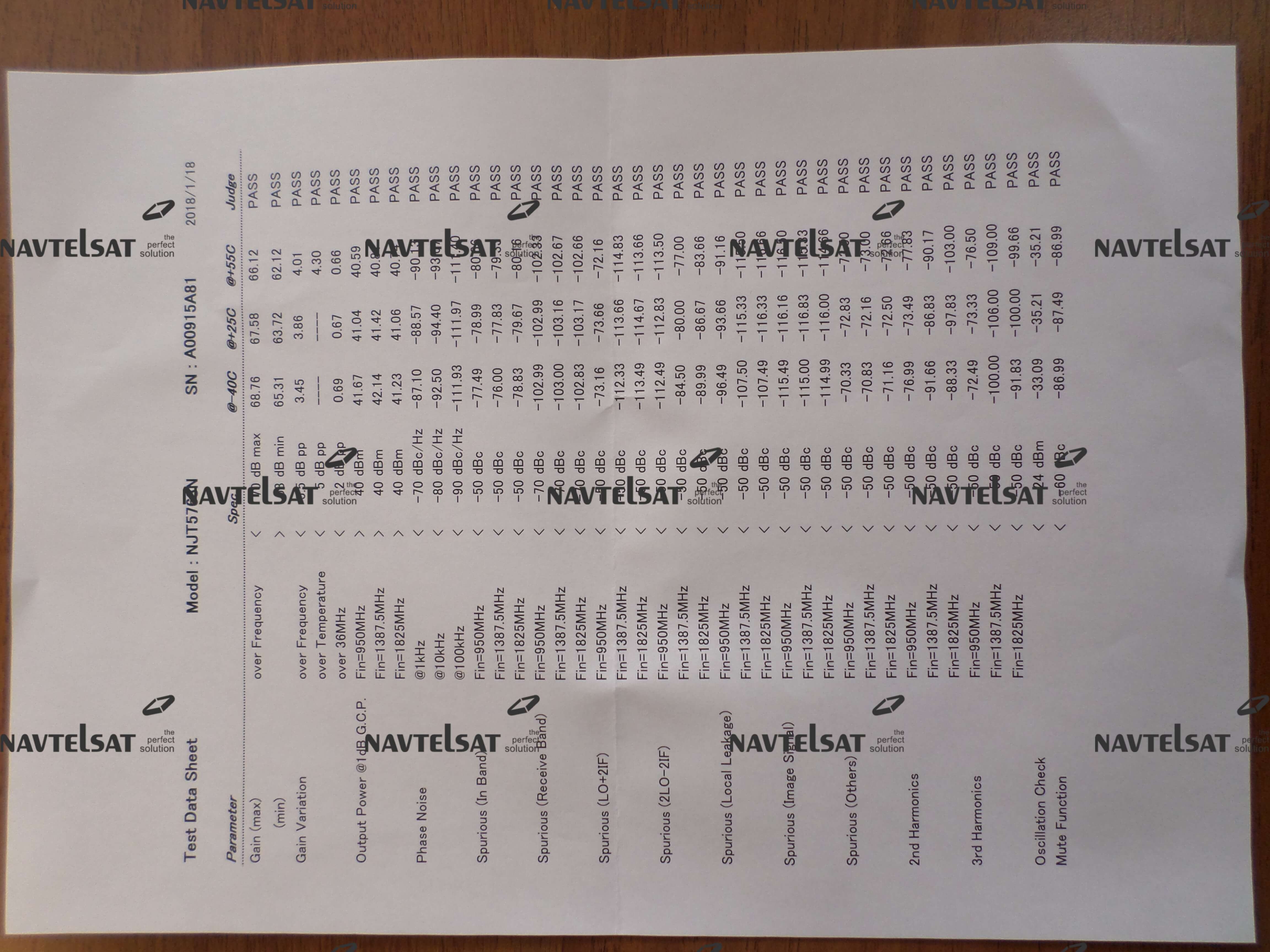

| Items | Parameters |
| RF Output Interface | Waveguide, CPR137 (with Groove) |
| IF Input Interfance | Coax. Connector, N-type Female (50 Ω) |
| Coax. Connector, F-type Female (75 Ω) | |
| P1dB Output Power (@ 1dB G.C.P.) | +40 dBm min. over temperature |
| IM3 | -24 dBc typ. @ total power = +40 dBm - 3 dB |
| Linear Gain | 64 dB nom., 58 dB min. |
| Input Power Voltage Requirement | +24 / +48 VDC (+18 to +60 VDC) [DC Power Products] |
| 90 to 264 VAC [AC Power Products] | |
| Power Consumption @ P1dB | 75 W typ., 85 W max. |
| Operating Temperature Range | -40 to +55 ℃ |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 3.2 kg |
|
Dimension (w/o Interfaces & Screws) |
(L) 219.5 x (W) 175 x (H) 99 mm |
