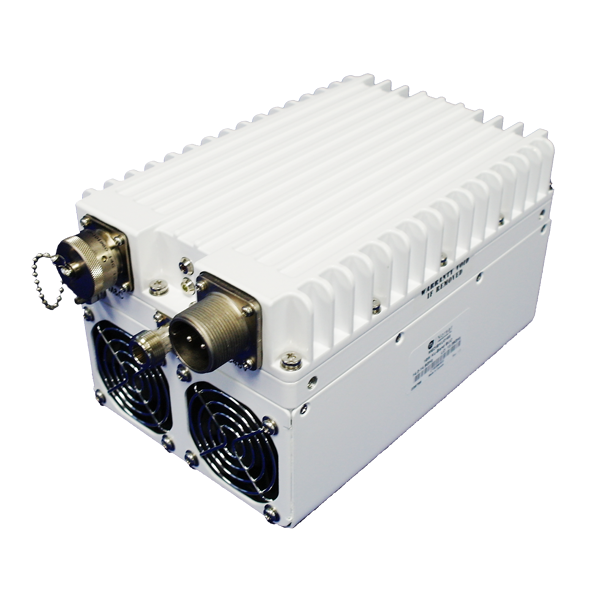

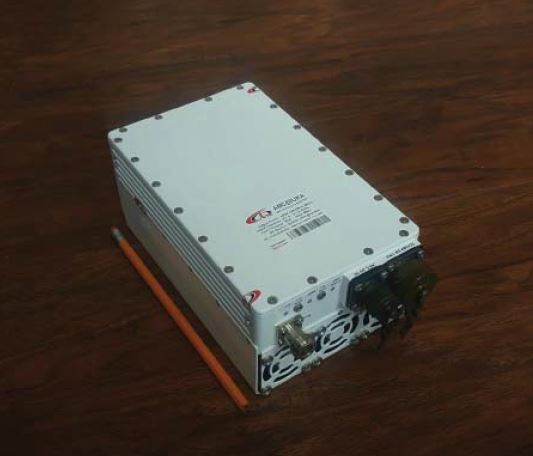

BUC ABC20UKA / ABC20UKAF
- Производитель
- Actox Corporation
- Диапазон
- Ka-band
- Тип оборудования
- BUC
RF frequency 27.5 - 31.0 GHz
Quad local oscillator 26.55, 27.4, 28.05 and 29.05 GHz
IF frequency 950 to 1,950 MHz
Output power 20W (+43 dBm min.)
IF connector N-type or F-type (fi eld-exchangeable)
Power supply :
auto-ranging via IF connector +36 VDC ~ +60 VDC, 260W max.
Output interface WR-28 G
Gain 65 dB typ. 60 dB min.
IMD3 (two tones) -25 dBc max. 2 signal 5 MHz apart at P-LINEAR
Spurious -50 dBc max
TX Gain variation ± 0.5 dB over 40 MHz
TX Gain stability over temperature range ± 1.8 dB over full band
± 1.5 dB typ., ± 1.8 dB max.
Phase noise -55 dBc/Hz max. @ 10 Hz
(Exceeds Intelsat’s standard IESS308/309) -65 dBc/Hz max. @ 100 Hz
-78 dBc/Hz max. @ 1 KHz
-85 dBc/Hz max. @ 10 KHz
-95 dBc/Hz max. @ 100 KHz
-115 dBc/Hz max @ 1 MHz
Noise power density Transmit -66 dBm/Hz (max)
Receive -157 dBm/Hz (max)
FSK Multiplexed on TX IFL, compatible with Compech and Paradigm
M&C Interface RS-232 and RS-485 and Ethernet (HTTP and SNMP ver. 3)
Noise fi gure 15 dB max
Input V.S.W.R. 2 : 1 max
Output V.S.W.R. 2 : 1 max.
Mute Shut off the HPA if L.O. unlocked
Temperature range (ambient) operating -40 deg C to +55 deg C
storage -55 deg C to +85 deg C
Vibration and shock Complies with MIL-STD-810E
Dimensions & housing 195 (L) x 122 (W) x 83.5 (H) mm
7.67” (L) x 4.8” (W) x 3.2” (H)
Weight 2.8 kg (6.17 lbs) max
