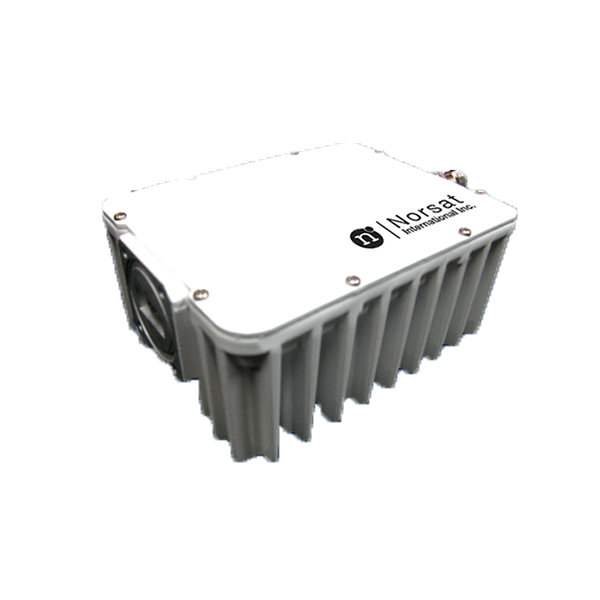

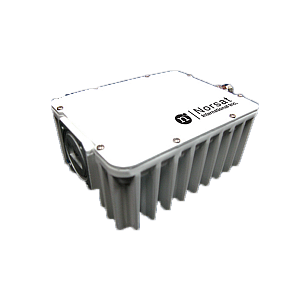

ELEMENT 4W Ku-Band BUC
- Производитель
- Norsat
- Диапазон
- Ku
- Тип оборудования
- BUC
| KEY SPECIFICATIONS | |
| Product Family | ELEMENT |
| Band | Ku-Band |
| Output Power (Rated) | 4W |
| Noise Figure | 58 dB |
| Input Frequency - Band 1 | L-Band: 950 - 1700 MHz |
| Output Frequency 1 | Ku-Band: 13.75 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 4 W |
| Output Power( P1dB) | 36 dBm min |
| Spectral Regrowth | -26 dBc |
| Noise Power Density | -90 dBm/Hz in Tx ; -156 dBm/Hz in Rx |
| LO Frequency 1 | 12.80 GHz |
| Phase Noise @ 100Hz offset | -65 dBc/Hz |
| Phase Noise @ 1KHz offset | -75 dBc/Hz |
| Phase Noise @ 10KHz offset | -85 dBc/Hz |
| Phase Noise @ 100KHz offset | -95 dBc/Hz |
| Conversion Gain | 58 dBm |
| Gain Variation over operating band | +/- 4 dBm p-p max over full; +/- 1.5 dBm over 54MHz |
| Gain Variation over temperature | -4 dBm p-p |
| Input VSWR | 2.0 : 1 |
| Output VSWR | 2.0 : 1 |
| Spurious | -60 dBc @ 10 dBm (in band) ; -45 dBc @ 10 dBm (out of band) |
| AM/PM Conversion @2dB below rated power | 2.5° / dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Consumption @ P1dB | 35W max |
| Power Requirements | 15 - 24 V |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N-50 Ohm |
| RF Output Connector | WR-75 |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40°C to +55°C |
| Humidity | 0-100% condensing |
| PHYSICAL SPECIFICATIONS | |
| Cooling | Finned |
| Enclosed Accessories | O-ring (1 pc), Screws (4 pcs) |
| Dimensions (L x W x H) | 129 x 95 x 58 mm |
| Weight | 700 g |
