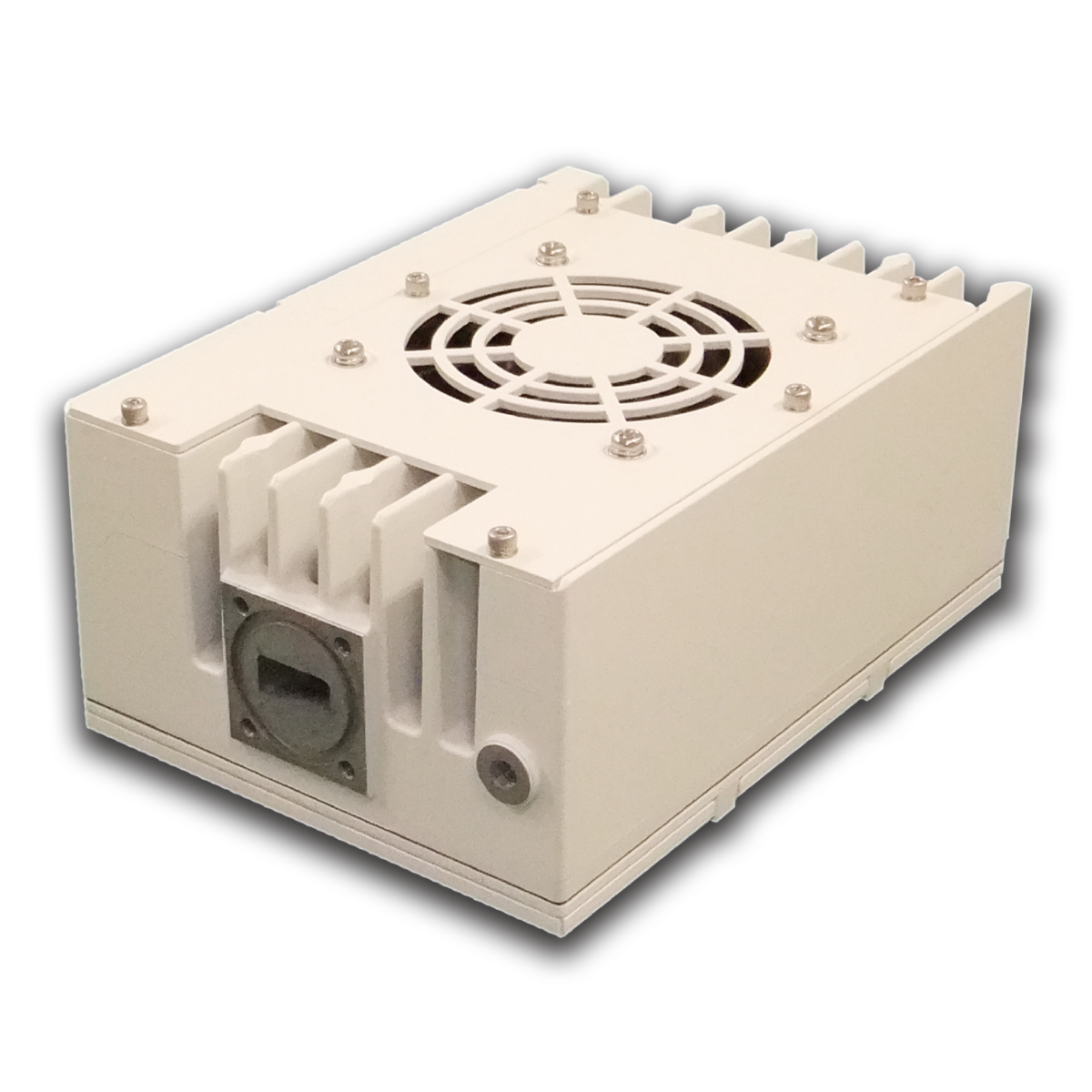

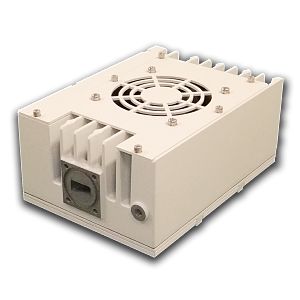

BUC NJT8319U series
- Производитель
- NJRC
- Диапазон
- Ku-band
- Тип оборудования
- BUC

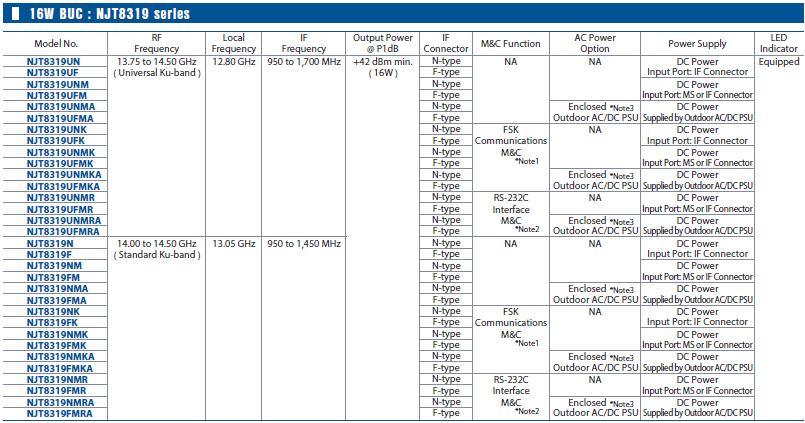

| Model No. | RF Frequency | Output Power | IF Connector | Power Requirement | M&C Option |
| NJT8319UN | 13.75 to 14.5 GHz |
+42 dBm min. @ P1dB (16W) |
N-type(50Ω) |
Power Supplied from IF Connector |
NA |
|---|---|---|---|---|---|
| NJT8319UF | F-type(75Ω) | ||||
| NJT8319UNM | N-type(50Ω) |
Power Supplied from MS Connector |
|||
| NJT8319UFM | F-type(75Ω) | ||||
| NJT8319UNMA | N-type(50Ω) |
Power Supplied by AC/DC PSU PSU Page Link |
|||
| NJT8319UFMA | F-type(75Ω) | ||||
| NJT8319UNK | N-type(50Ω) |
Power Supplied from IF Connector |
FSK Communications M&C | ||
| NJT8319UFK | F-type(75Ω) | ||||
| NJT8319UNMK | N-type(50Ω) |
Power Supplied from MS Connector |
|||
| NJT8319UFMK | F-type(75Ω) | ||||
| NJT8319UNMKA | N-type(50Ω) |
Power Supplied by AC/DC PSU PSU Page Link |
|||
| NJT8319UFMKA | F-type(75Ω) | ||||
| NJT8319UNMR | N-type(50Ω) |
Power Supplied from MS Connector |
RS-232C M&C | ||
| NJT8319UFMR | F-type(75Ω) | ||||
| NJT8319UNMRA | N-type(50Ω) |
Power Supplied by AC/DC PSU PSU Page Link |
|||
| NJT8319UFMRA | F-type(75Ω) |

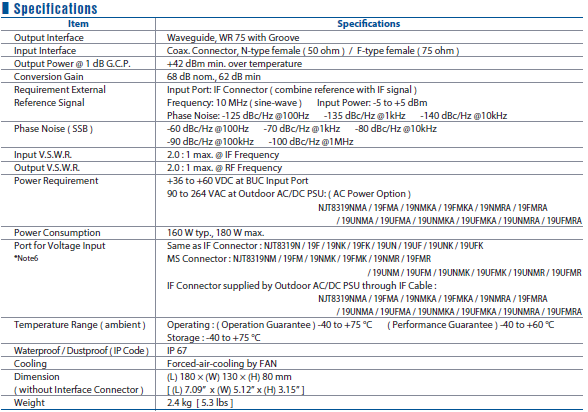

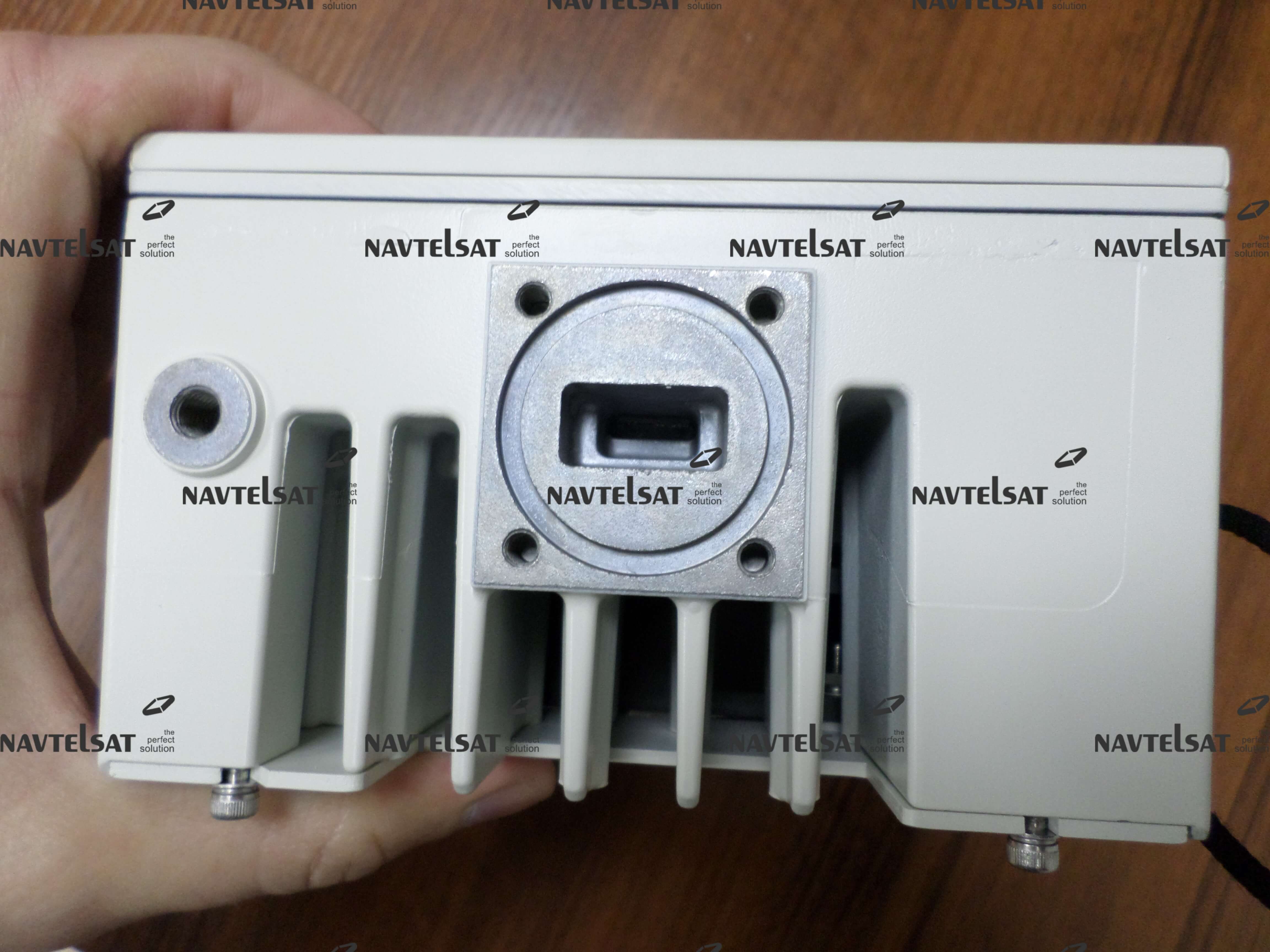

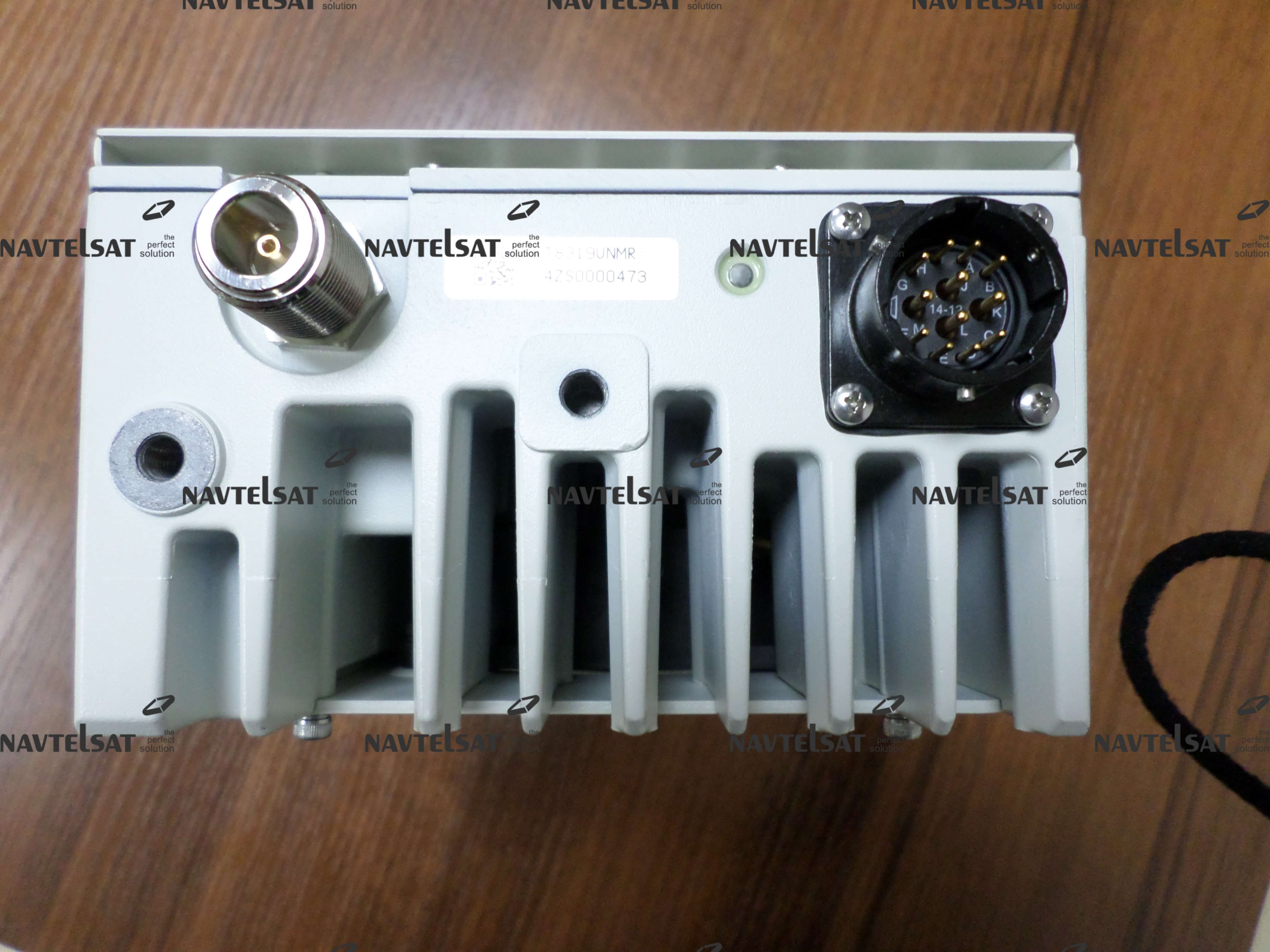

| Items | Parameters |
| RF Output Interface | Waveguide, WR75 (with Groove) |
|---|---|
| IF Input Interfance | Coax. Connector, N-type Female (50 Ω) |
| Coax. Connector, F-type Female (75 Ω) | |
| P1dB Output Power (@ 1dB G.C.P.) | +42 dBm min. over temperature |
| ACPR | -28 dBc max. @ Pout = +41 dBm |
| Linear Gain | 68 dB nom., 62 dB min. |
| Input Power Voltage Requirement | +48 VDC (+36 to +60 VDC) [DC Power Products] |
| 90 to 264 VAC [AC Power Products] | |
| Power Consumption @ P1dB | 160 W typ., 180 W max. |
| Operating Temperature Range | Operating Guarantee Range: -40 to +75 ℃ |
| Performance Guarantee Temperature Range: -40 to +55 ℃ | |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 2.4 kg |
|
Dimension (w/o Interfaces & Screws) |
(L) 180 x (W) 130 x (H) 80 mm |
