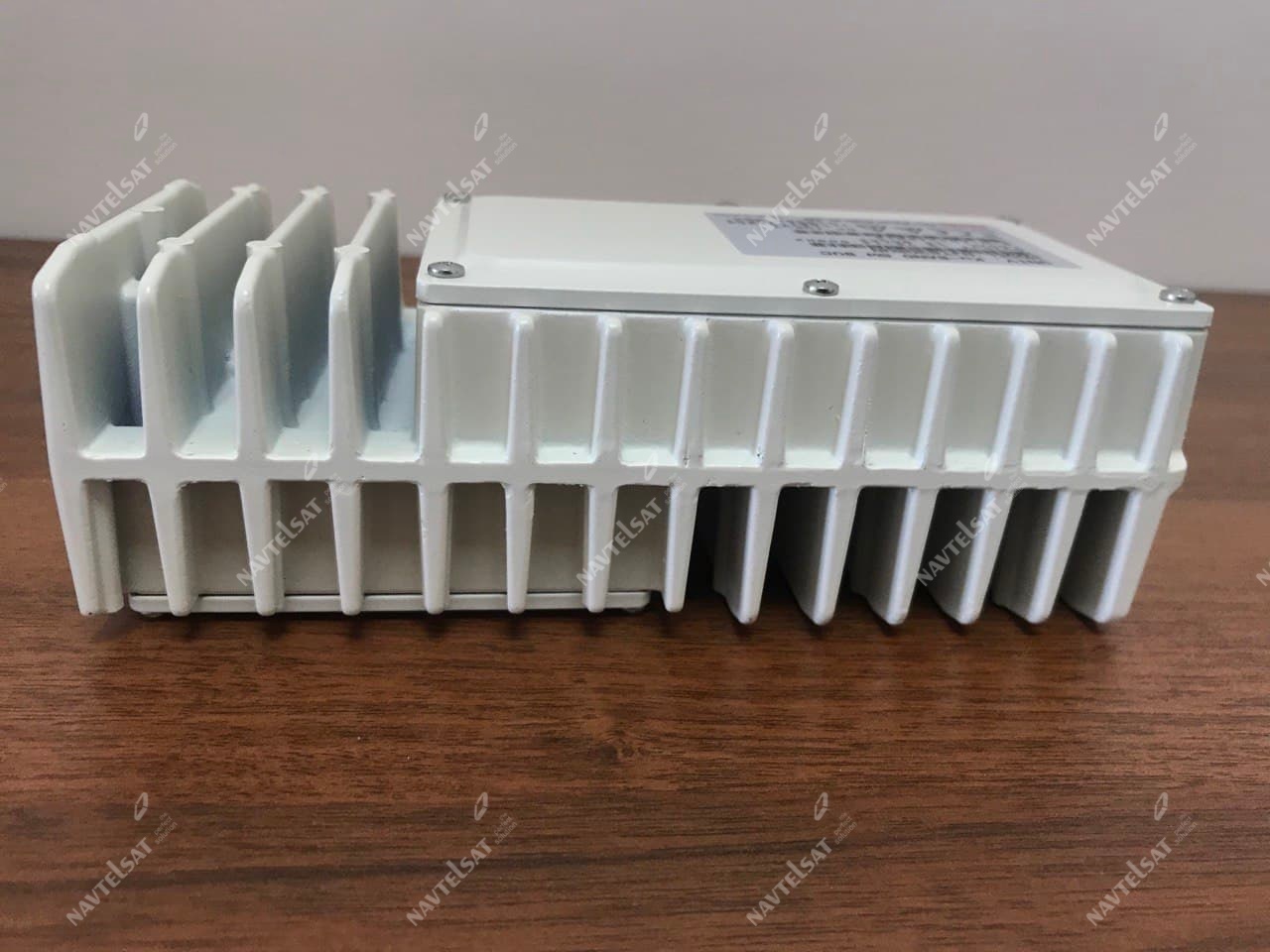

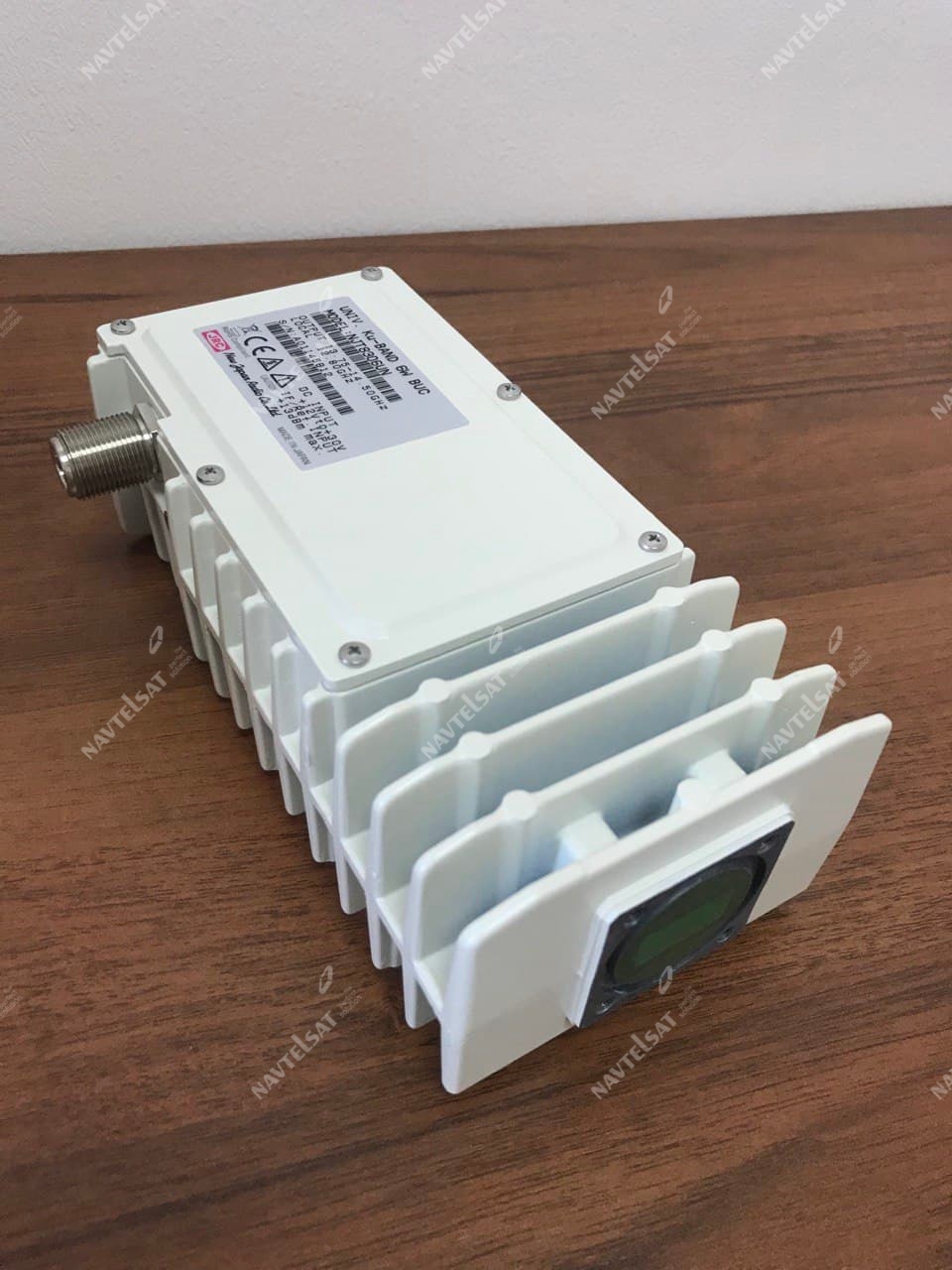

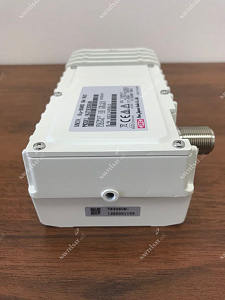

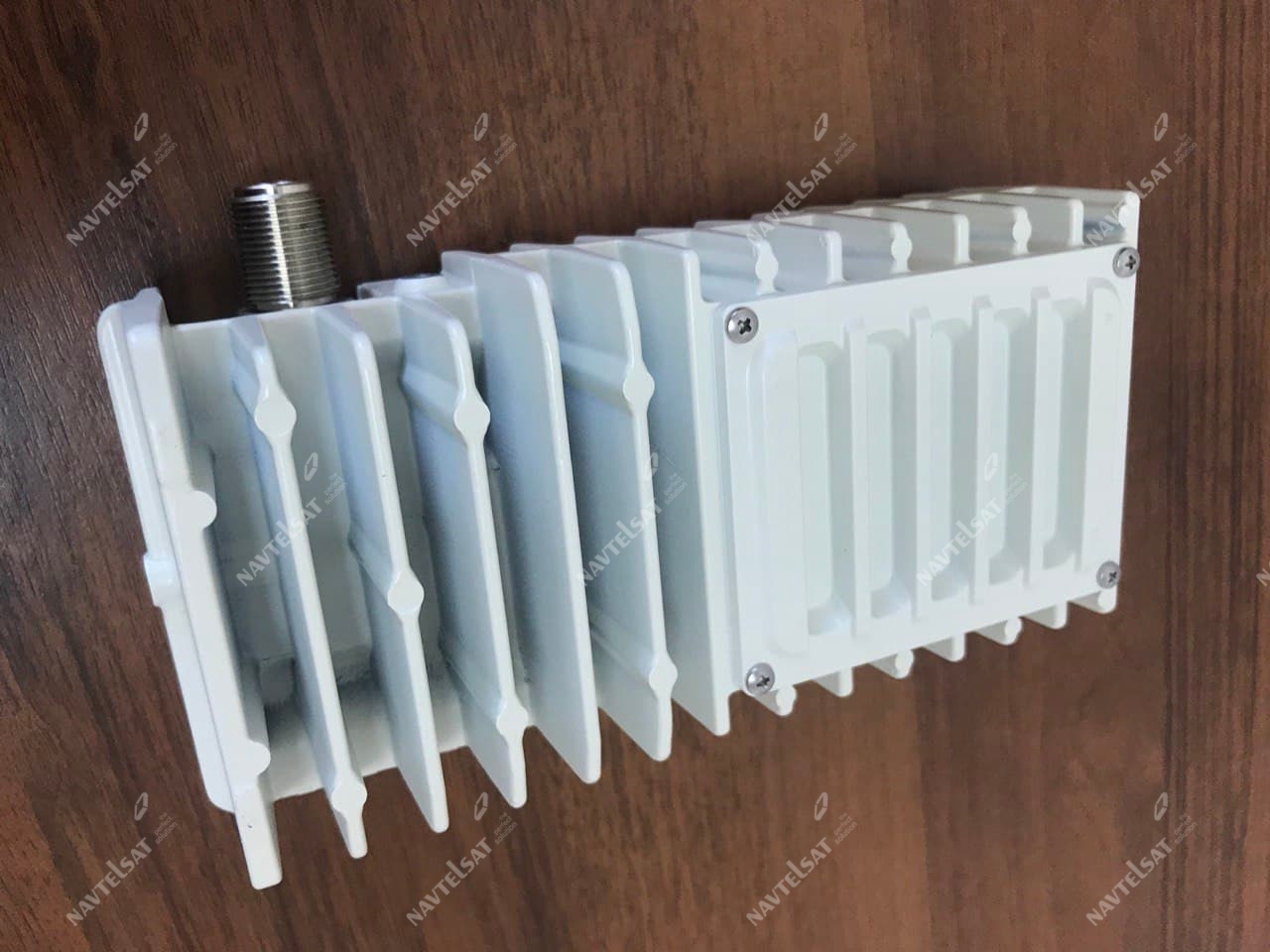

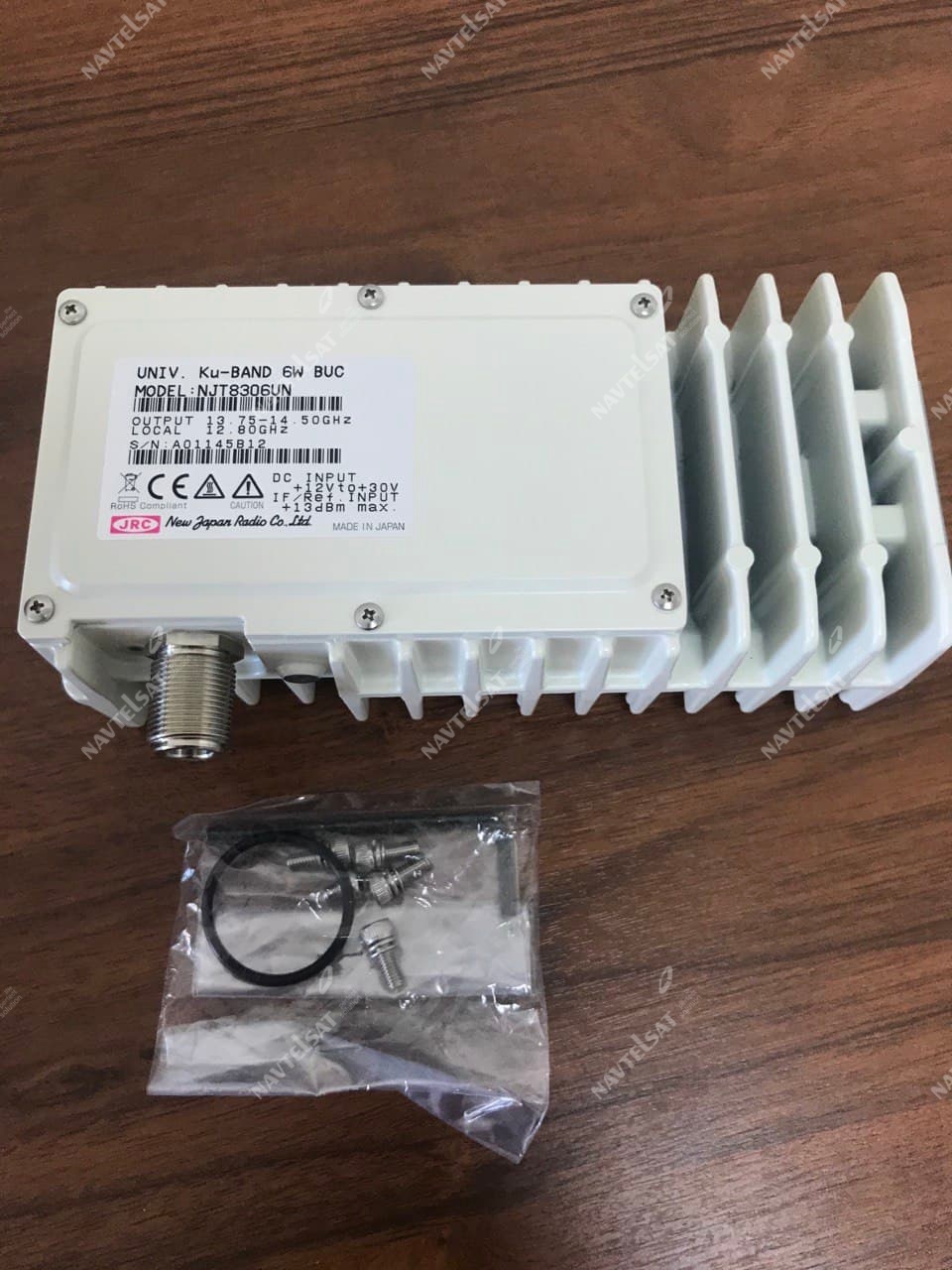

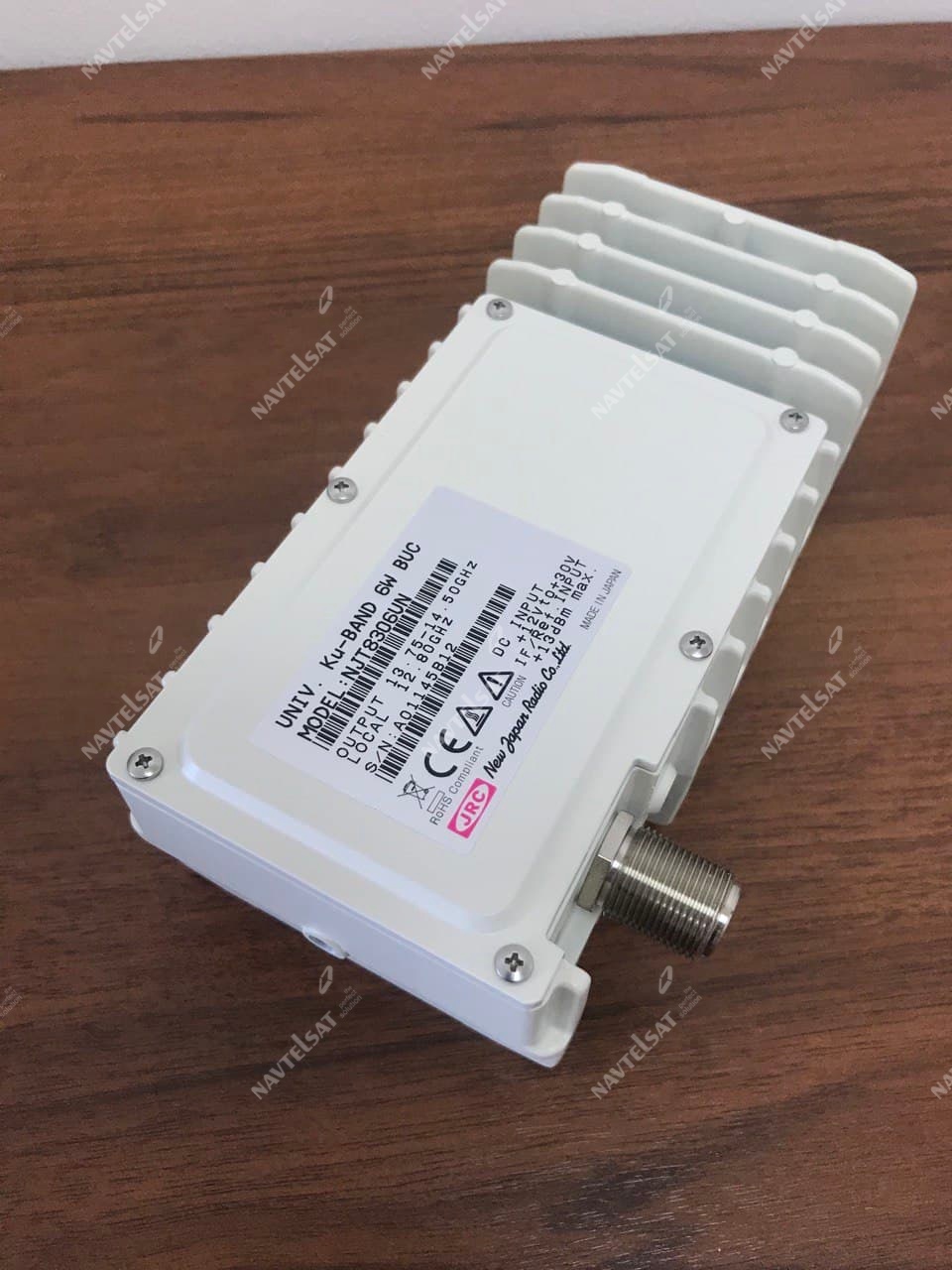

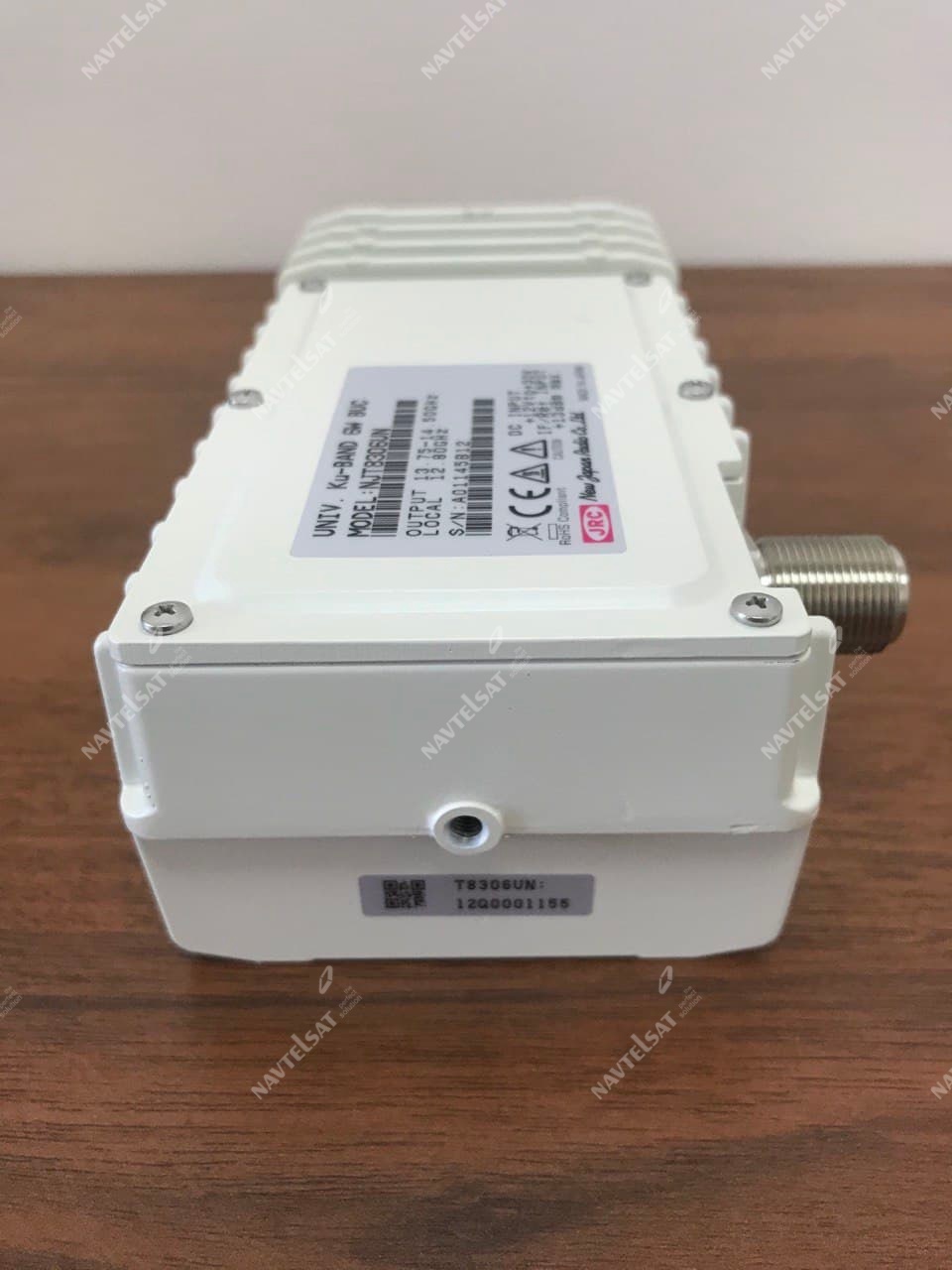

BUC NJT8306U series
- Производитель
- New Japan Radio Co.
- Диапазон
- Ku-band
- Тип оборудования
- BUC
| Model No. | RF Frequency | Output Power | IF Connector |
| NJT8306UN | 13.75 to 14.5 GHz |
+37.8 dBm min. @ P1dB (6W) |
N-type(50Ω) |
|---|---|---|---|
| NJT8306UF | F-type(75Ω) |

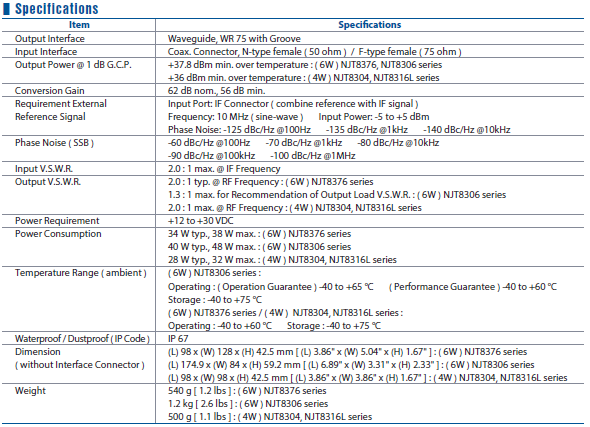

| Items | Parameters |
| RF Output Interface | Waveguide, WR75 (with Groove) |
|---|---|
| IF Input Interfance | Coax. Connector, N-type Female (50 Ω) |
| Coax. Connector, F-type Female (75 Ω) | |
| P1dB Output Power (@ 1dB G.C.P.) | +37.8 dBm min. over temperature |
| ACPR | -30 dBc typ., -24 dBc max. @ Pout = +37.8 dBm |
| Linear Gain | 62 dB nom., 56 dB min. |
| Input Power Voltage Requirement | +24 VDC (+12 to +30 VDC) |
| Power Consumption @ P1dB | 40 W typ., 48 W max. |
| Operating Temperature Range | Operating Guarantee Range: -40 to +65 ℃ |
| Performance Guarantee Temperature Range: -40 to +60 ℃ | |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 1.2 kg |
|
Dimension (w/o Interfaces & Screws) |
(L) 174.9 x (W) 84 x (H) 59.2 mm |
