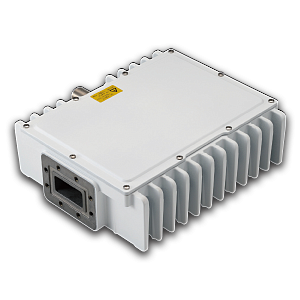

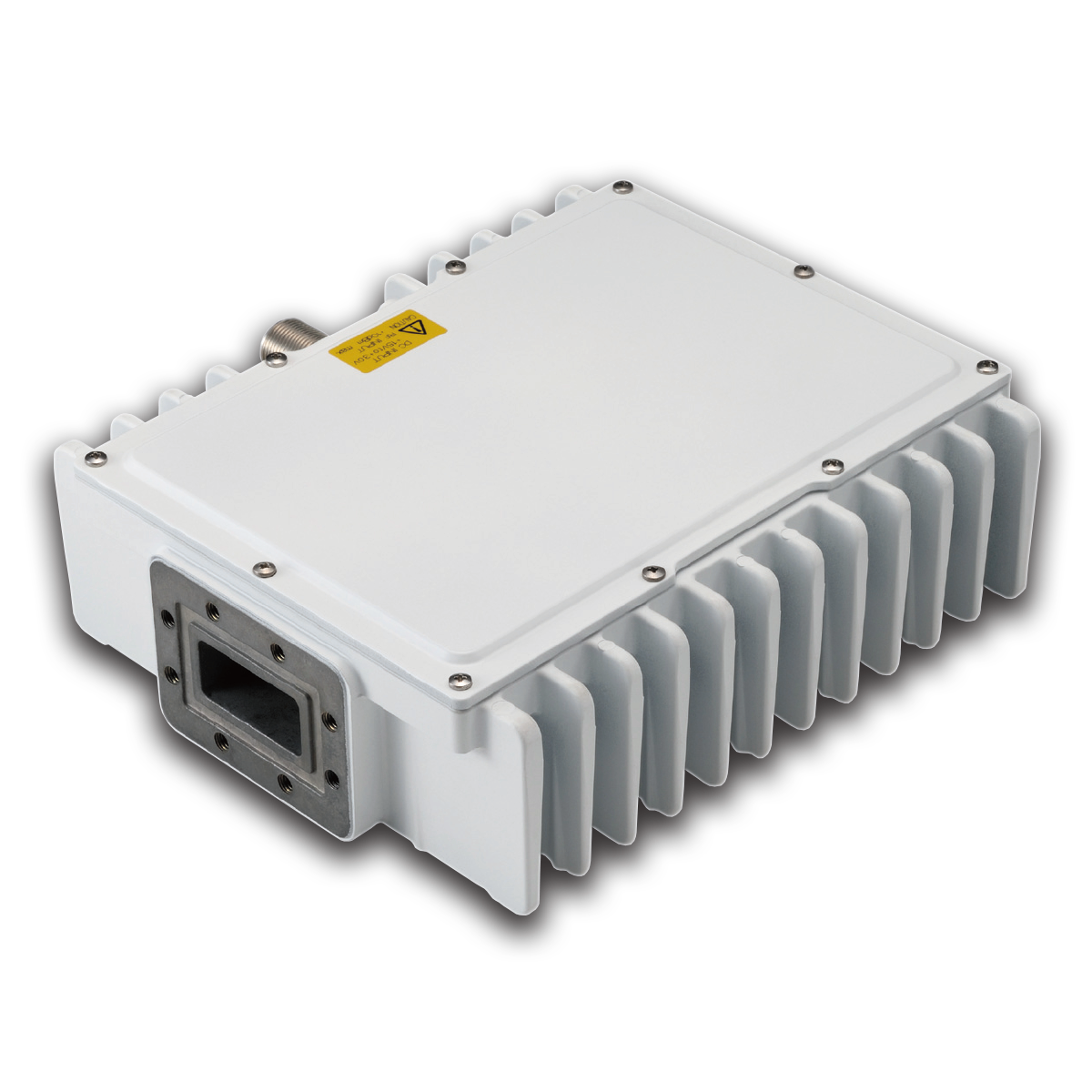

BUC NJT5669 series
- Производитель
- NJRC
- Диапазон
- C-band
- Тип оборудования
- BUC
| Model No. | RF Frequency | Output Power | IF Connector |
| NJT5669 | 5.85 to 6.425 GHz |
+37 dBm min. @ P1dB (5W) |
N-type(50Ω) |
|---|---|---|---|
| NJT5669F | F-type(75Ω) |
| Items | Parameters |
| RF Output Interface | Waveguide, CPR137 (with Groove) |
|---|---|
| IF Input Interfance | Coax. Connector, N-type Female (50 Ω) |
| Coax. Connector, F-type Female (75 Ω) | |
| P1dB Output Power (@ 1dB G.C.P.) | +37 dBm min. over temperature |
| Linear Gain | 61 dB nom. |
| Input Power Voltage Requirement | +24 VDC (+15 to +30 VDC) |
| Power Consumption @ P1dB | 48 W max. |
| Operating Temperature Range | -40 to +55 ℃ |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 1.7 kg |
|
Dimension (w/o Interfaces & Screws) |
(L) 190.6 x (W) 160 x (H) 59 mm |
