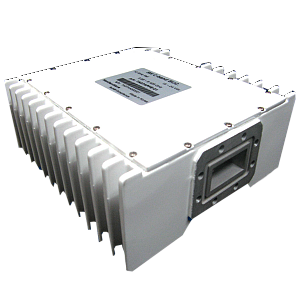

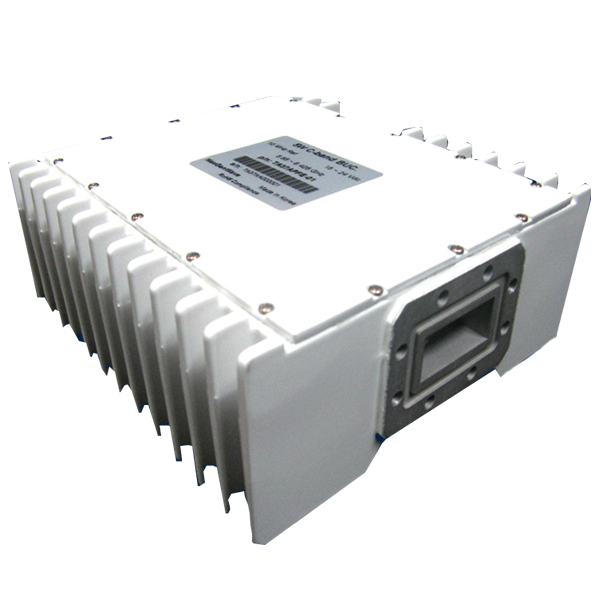

ELEMENT 5W C-Band BUC
- Производитель
- Norsat
- Диапазон
- C-band
- Тип оборудования
- BUC
|
KEY SPECIFICATIONS |
|
|
Product Family |
ELEMENT |
|
Band |
C-Band |
|
Output Power (Rated) |
5W |
|
Noise Figure |
61 dB |
|
Input Frequency - Band 1 |
L-Band: 950 – 1525 MHz |
|
Output Frequency 1 |
C-Band: 5.850 - 6.425 GHz |
|
|
|
|
RF SPECIFICATIONS |
|
|
Output Power (Saturated) |
5 W |
|
Output Power( P1dB) |
37 dBm min |
|
Noise Power Density |
-90 dBm/Hz in Tx ; -156 dBm/Hz in Rx |
|
LO Frequency 1 |
4.90 GHz |
|
Phase Noise @ 100Hz offset |
-65 dBc/Hz |
|
Phase Noise @ 1KHz offset |
-75 dBc/Hz |
|
Phase Noise @ 10KHz offset |
-85 dBc/Hz |
|
Phase Noise @ 100KHz offset |
-95 dBc/Hz |
|
Conversion Gain |
61 dBm |
|
Gain Variation over operating band |
+/- 4 dBm p-p max over full; +/- 1.5 dBm over 54MHz |
|
Gain Variation over temperature |
-4 dBm p-p |
|
Input VSWR |
2.0 : 1 |
|
Output VSWR |
2.0 : 1 |
|
Spurious |
-60 dBc (in band) ; -50 dBc (out of band) |
|
|
|
|
ELECTRICAL SPECIFICATIONS |
|
|
Power Consumption @Psat |
55W max |
|
Power Requirements |
15 - 24 V |
|
|
|
|
INTERFACE SPECIFICATIONS |
|
|
RF Input Connector |
N-50 Ohm |
|
RF Output Connector |
CPR137G |
|
|
|
|
ENVIRONMENTAL SPECIFICATIONS |
|
|
Temperature - Operational |
-40°C to +55°C |
|
Humidity |
0-100% condensing |
|
|
|
|
PHYSICAL SPECIFICATIONS |
|
|
Cooling |
Finned |
|
Enclosed Accessories |
O-ring (1 pc), Screws (4 pcs) |
|
Dimensions (L x W x H) |
176 x 161.5 x 65 mm |
|
Weight |
1.8 kg |
