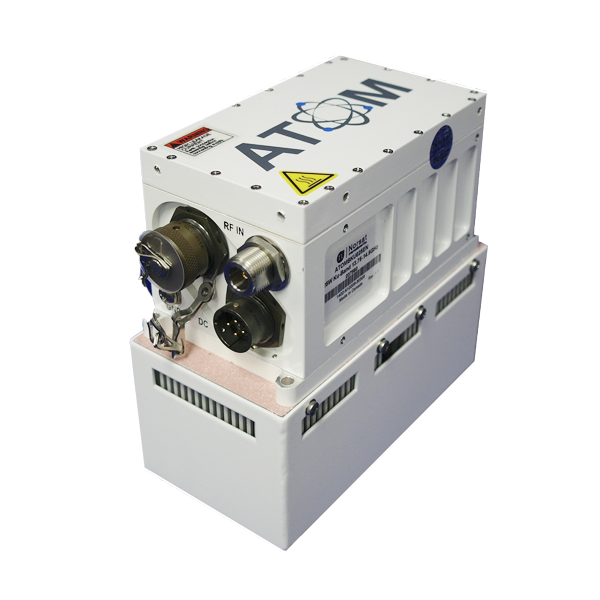

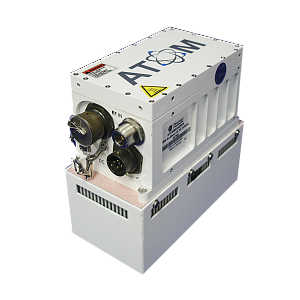

ATOM 20W Ku-Band BUC
- Производитель
- Norsat
- Диапазон
- Ku
- Тип оборудования
- BUC
| KEY SPECIFICATIONS | |
| Product Family | ATOM |
| Band | Ku-Band |
| Output Power (Rated) | 20W |
| Input Frequency - Band 1 | L-Band: 950 - 1700 MHz |
| Output Frequency 1 | Ku-Band: 13.75 - 14.50 GHz |
| RF SPECIFICATIONS | |
| Output Power (Saturated) | 44 dBm min. |
| Output Power( P1dB) | 43 dBm min. |
| LO Frequency 1 | 12.80 GHz |
| Phase Noise @ 1KHz offset | -72 dBc/Hz |
| Phase Noise @ 10KHz offset | -82 dBc/Hz |
| Phase Noise @ 100KHz offset | -92 dBc/Hz |
| Phase Noise @ 1MHz offset | -102 dBc/Hz |
| Gain Variation over operating band | ≤ 6.0 dB p-p |
| Gain Variation over temperature | ≤ 3.0 dB p-p |
| Input VSWR | 2.0 : 1 max. |
| Output VSWR | 2.0 : 1 max. |
| Spurious | In-Band: ≤ -55 dBc; Out-of-Band: ≤ -60 dBc |
| ELECTRICAL SPECIFICATIONS | |
| Input Voltage | 18V to + 56V DC |
| Power Consumption @Psat | 165 W max. |
| Power Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 4 Pins. 58-533723-4P |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | N- 50 Ohm |
| RF Output Connector | WR-75 waveguide grooved |
| M & C SPECIFICATIONS | |
| M & C Interface | RS-485 & RS-232 |
| M & C Connector | MIL-26482 Series 1 receptacle, Shell Size 12, 10 Pins. 58-533723-10P |
| Mute Control | Fully configurable |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature - Operational | -40 to +60°C |
| Temperature - Storage | -50 to +80°C |
| Humidity | 100% condensing |
| PHYSICAL SPECIFICATIONS | |
| Cooling | External Baseplate |
| Enclosed Accessories | Screws, Gasket, M&C Connector, Power Connector |
| Dimensions (L x W x H) | 170 x 86 x 157 mm |
| Weight | < 2.3 kg |
