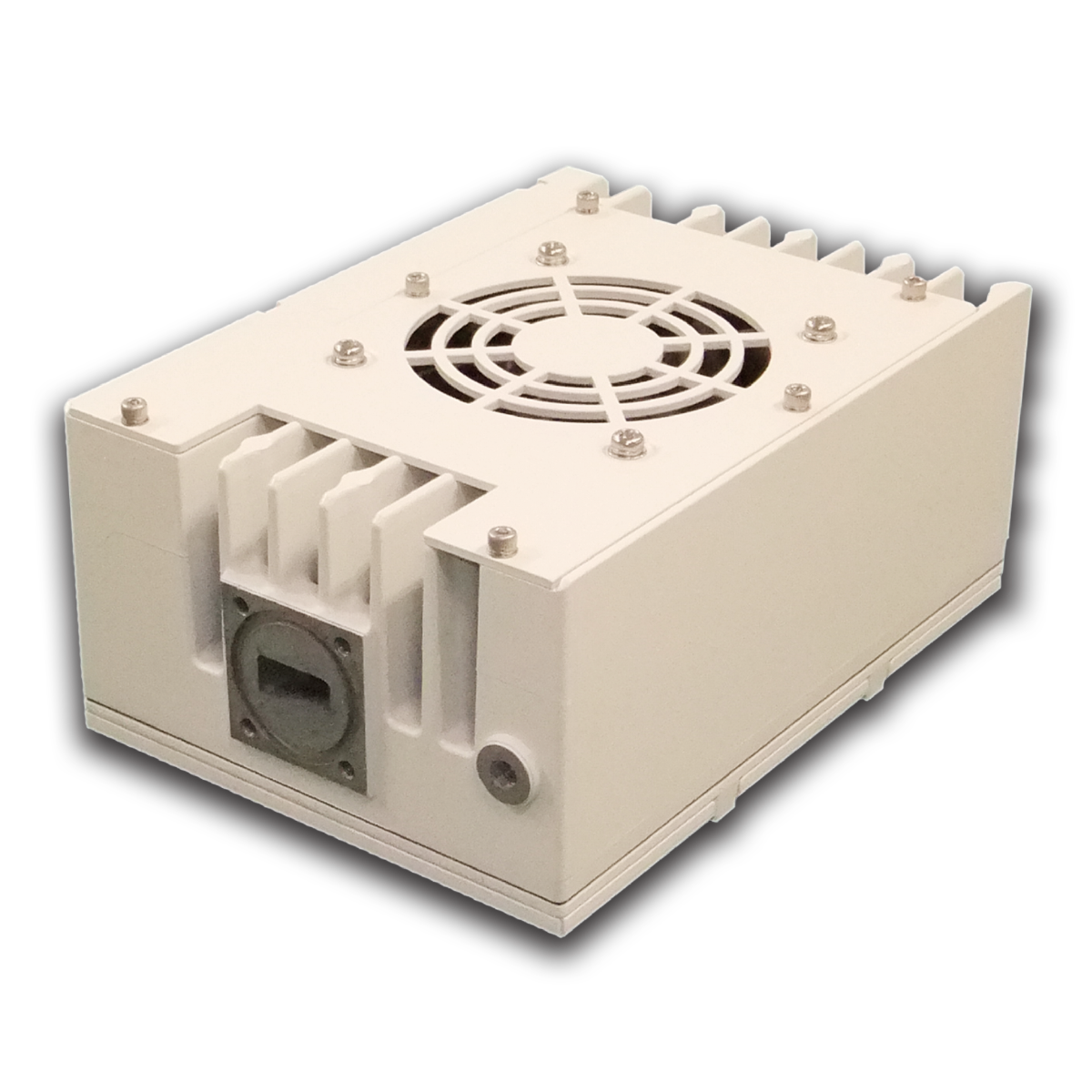

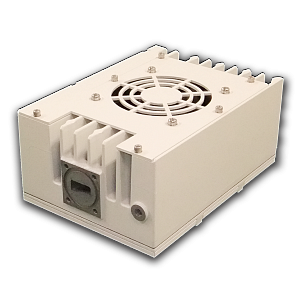

BUC NJT8318U series
- Производитель
- NJRC
- Диапазон
- Ku-band
- Тип оборудования
- BUC

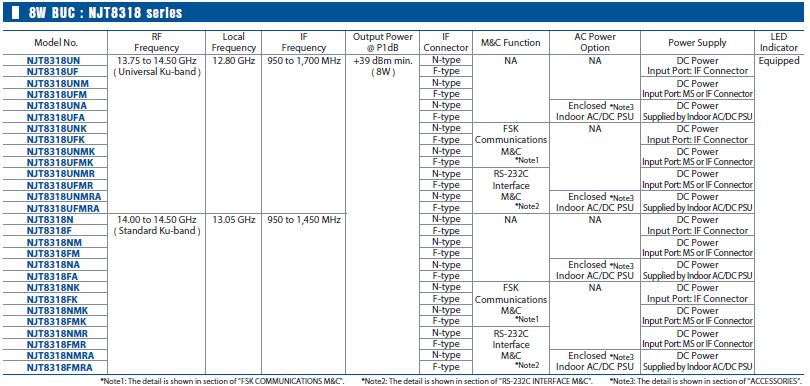

| Model No. | RF Frequency | Output Power | IF Connector | Power Requirement | M&C Option |
| NJT8318UN | 13.75 to 14.5 GHz |
+39 dBm min. @ P1dB (8W) |
N-type(50Ω) |
Power Supplied from IF Connector |
NA |
|---|---|---|---|---|---|
| NJT8318UF | F-type(75Ω) | ||||
| NJT8318UNM | N-type(50Ω) |
Power Supplied from MS Connector |
|||
| NJT8318UFM | F-type(75Ω) | ||||
| NJT8318UNA | N-type(50Ω) |
Power Supplied by AC/DC PSU PSU Page Link |
|||
| NJT8318UFA | F-type(75Ω) | ||||
| NJT8318UNK | N-type(50Ω) |
Power Supplied from IF Connector |
FSK Communications M&C | ||
| NJT8318UFK | F-type(75Ω) | ||||
| NJT8318UNMK | N-type(50Ω) |
Power Supplied from MS Connector |
|||
| NJT8318UFMK | F-type(75Ω) | ||||
| NJT8318UNMR | N-type(50Ω) |
Power Supplied from MS Connector |
RS-232C M&C | ||
| NJT8318UFMR | F-type(75Ω) | ||||
| NJT8318UNMRA | N-type(50Ω) |
Power Supplied by AC/DC PSU PSU Page Link |
|||
| NJT8318UFMRA | F-type(75Ω) |

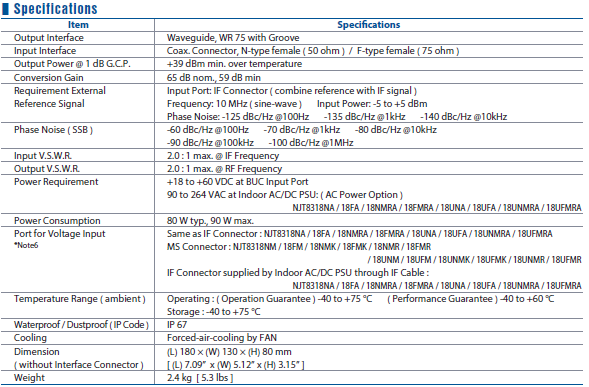

| Items | Parameters |
| RF Output Interface | Waveguide, WR75 (with Groove) |
|---|---|
| IF Input Interfance | Coax. Connector, N-type Female (50 Ω) |
| Coax. Connector, F-type Female (75 Ω) | |
| P1dB Output Power (@ 1dB G.C.P.) | +39 dBm min. over temperature |
| ACPR | -28 dBc max. @ Pout = +38 dBm |
| Linear Gain | 65 dB nom., 59 dB min. |
| Input Power Voltage Requirement | +24 / +48 VDC (+18 to +60 VDC) [DC Power Products] |
| 90 to 264 VAC [AC Power Products] | |
| Power Consumption @ P1dB | 79 W typ., 93 W max. |
| Operating Temperature Range | Operating Guarantee Range: -40 to +75 ℃ |
| Performance Guarantee Temperature Range: -40 to +55 ℃ | |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 2.4 kg |
|
Dimension (w/o Interfaces & Screws) |
(L) 180 x (W) 130 x (H) 80 mm |
