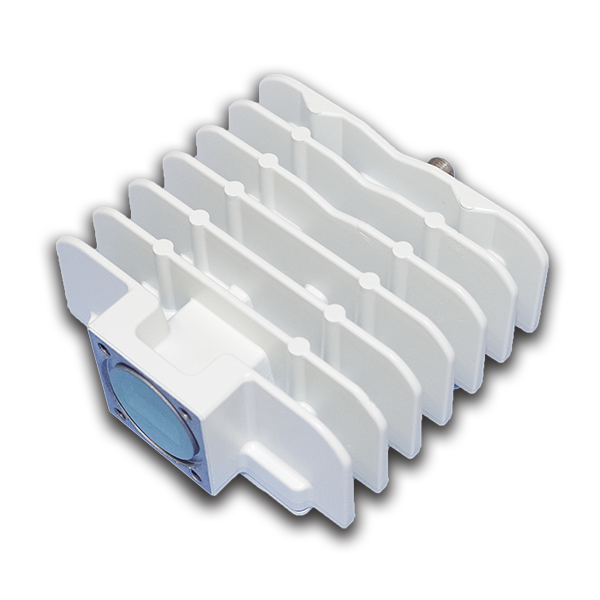

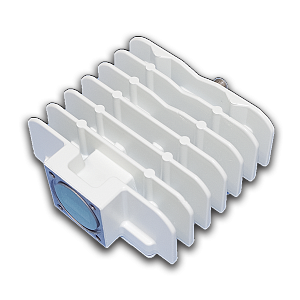

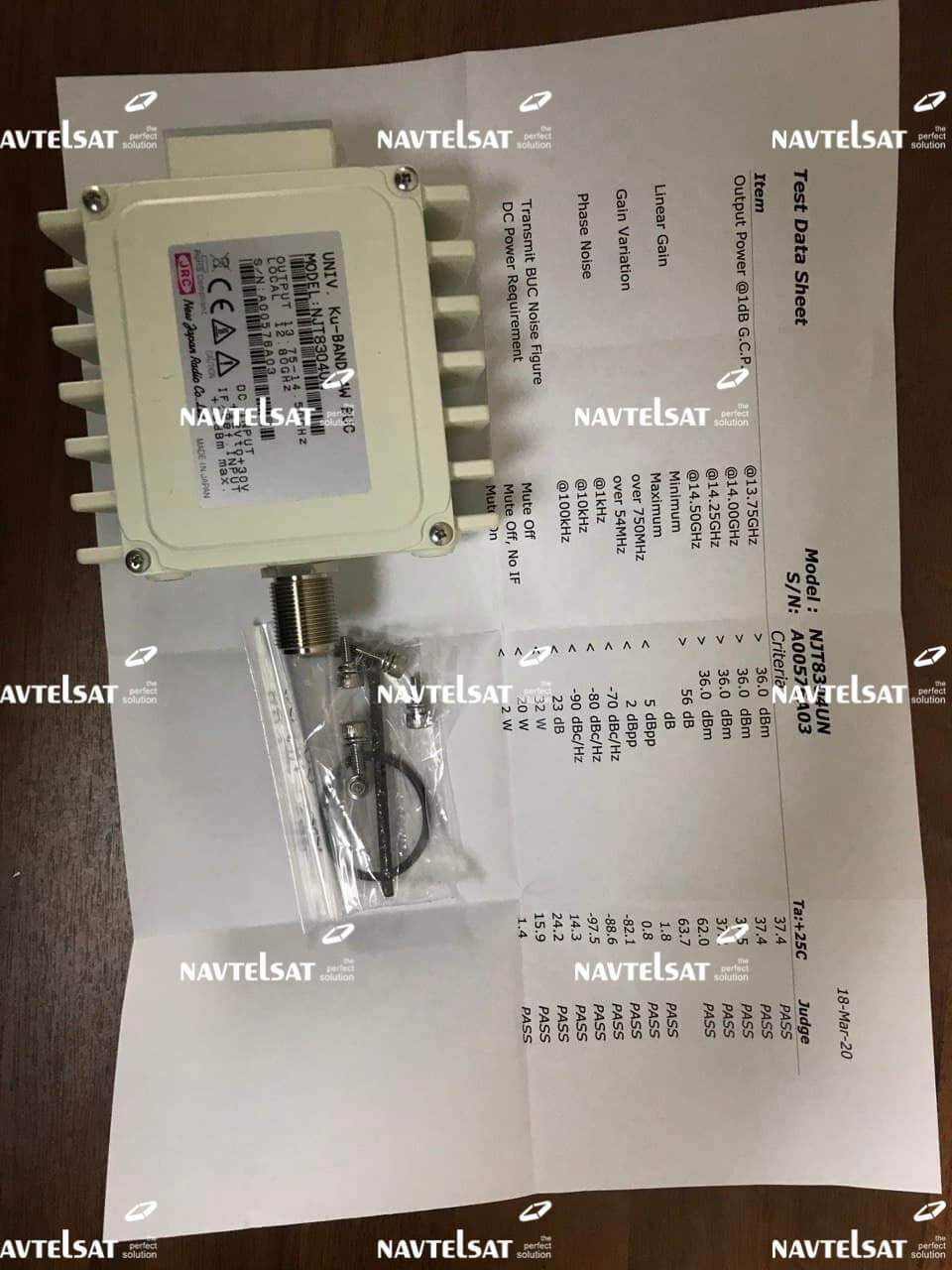

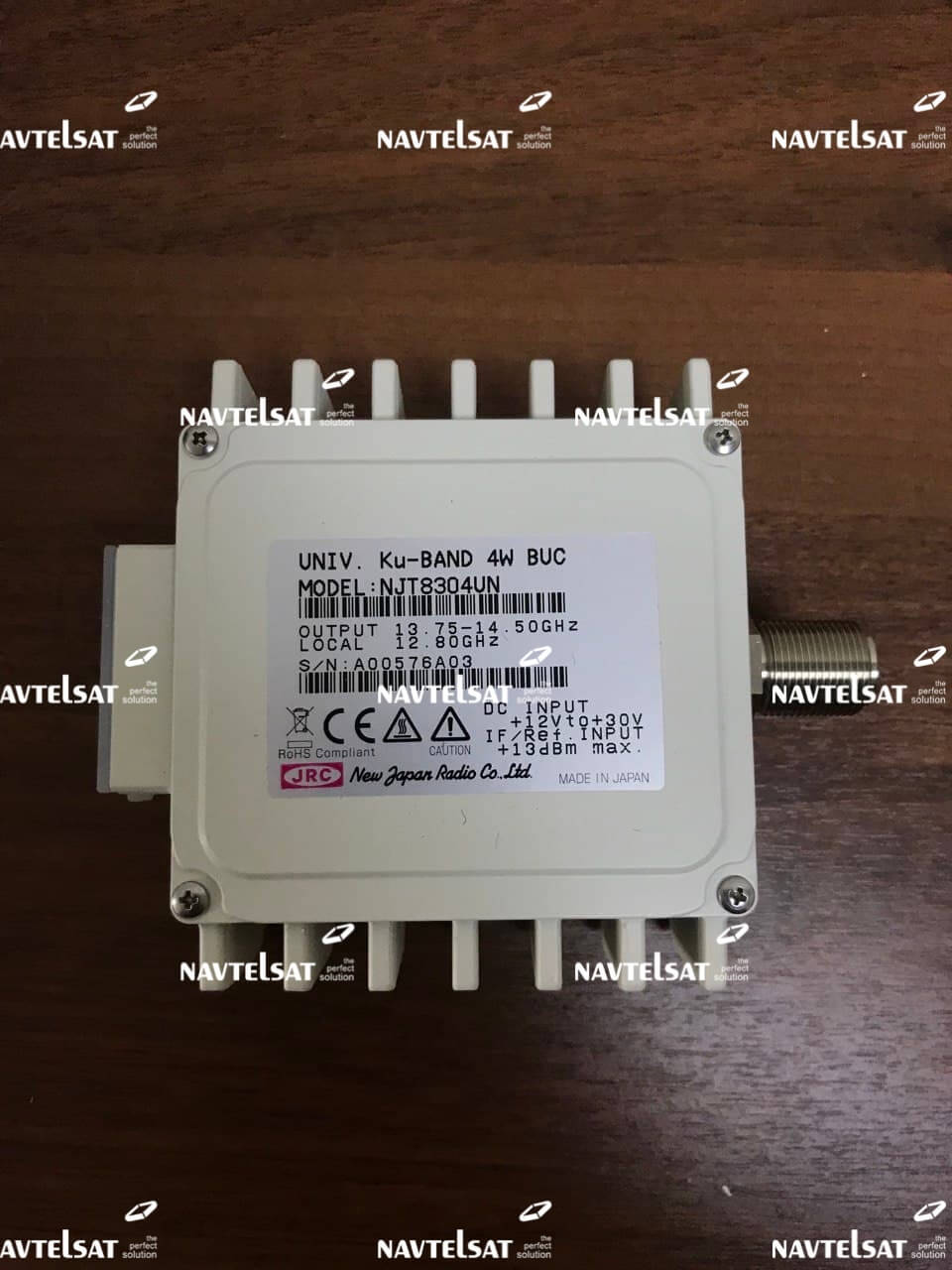

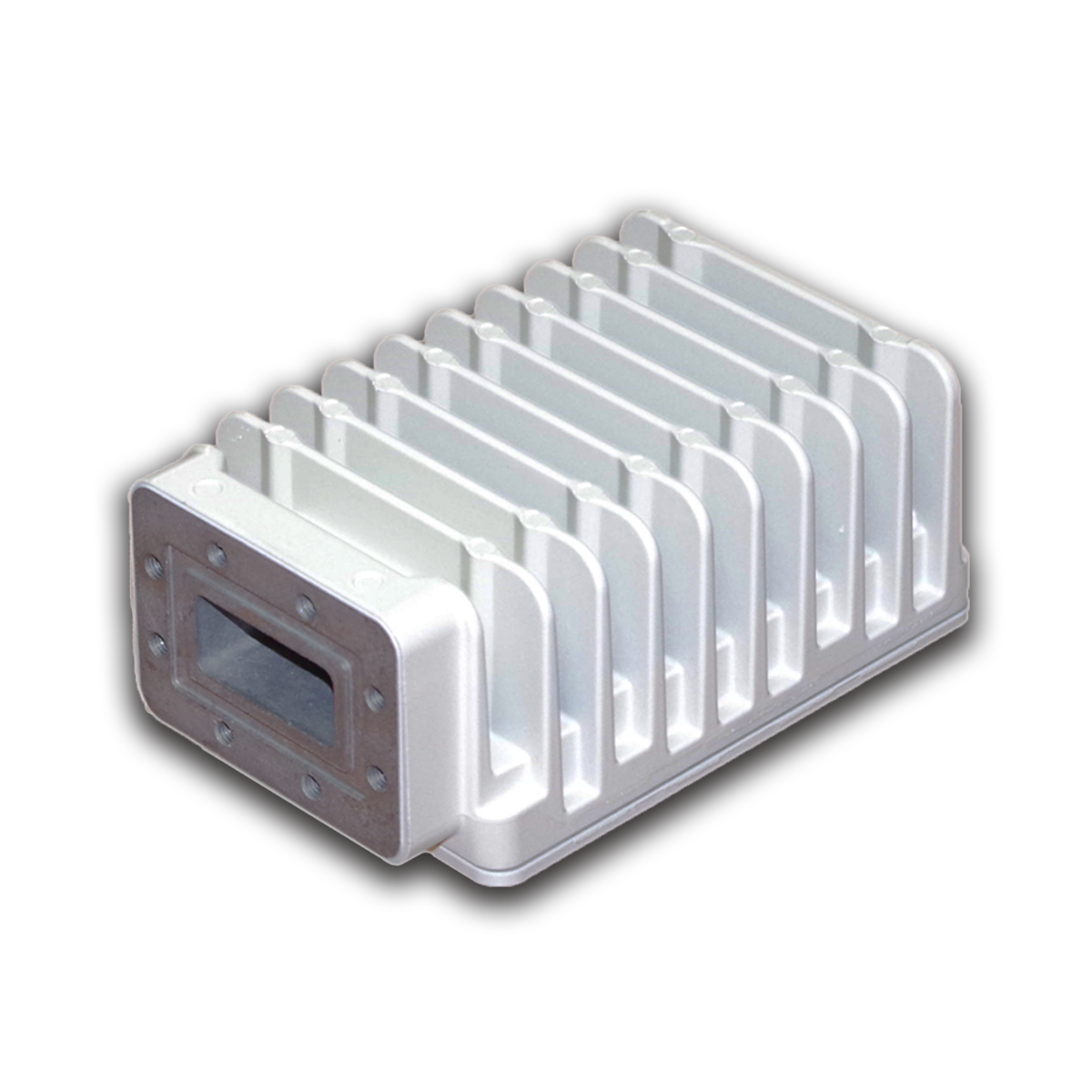

BUC NJT8304U series
- Производитель
- NJRC
- Диапазон
- Ku-band
- Тип оборудования
- BUC

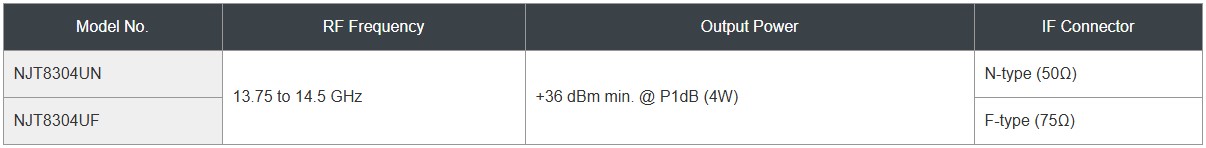

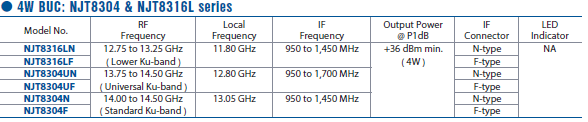

| Model No. | RF Frequency | Output Power | IF Connector |
| NJT8304UN | 13.75 to 14.5 GHz |
+36 dBm min. @ P1dB (4W) |
N-type(50Ω) |
|---|---|---|---|
| NJT8304UF | F-type(75Ω) |

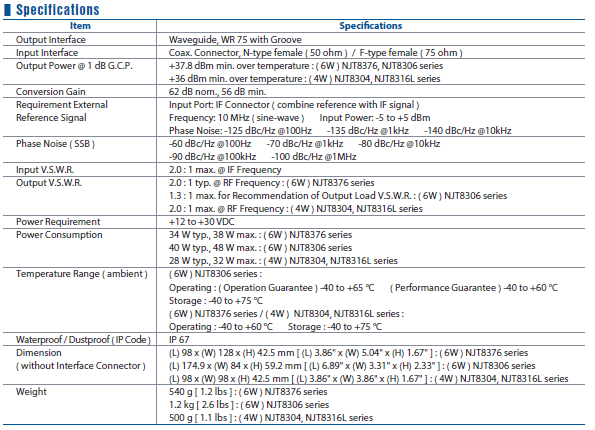

| Items | Parameters |
| RF Output Interface | Waveguide, WR75 (with Groove) |
|---|---|
| IF Input Interfance | Coax. Connector, N-type Female (50 Ω) |
| Coax. Connector, F-type Female (75 Ω) | |
| P1dB Output Power (@ 1dB G.C.P.) | +36 dBm min. over temperature |
| ACPR | -26 dBc max. @ Pout = +35.5 dBm |
| Linear Gain | 62 dB nom., 56 dB min. |
| Input Power Voltage Requirement | +24 VDC (+12 to +30 VDC) |
| Power Consumption @ P1dB | 28 W typ., 32 W max. |
| Operating Temperature Range | -40 to +60 ℃ |
| Waterproof / Dustproof (IP-code) | IP67 |
| Weight | 500 g |
|
Dimension (w/o Interfaces & Screws) |
(L) 98 x (W) 98 x (H) 42.5 mm |
