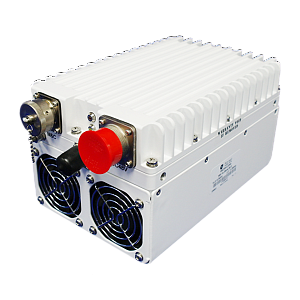

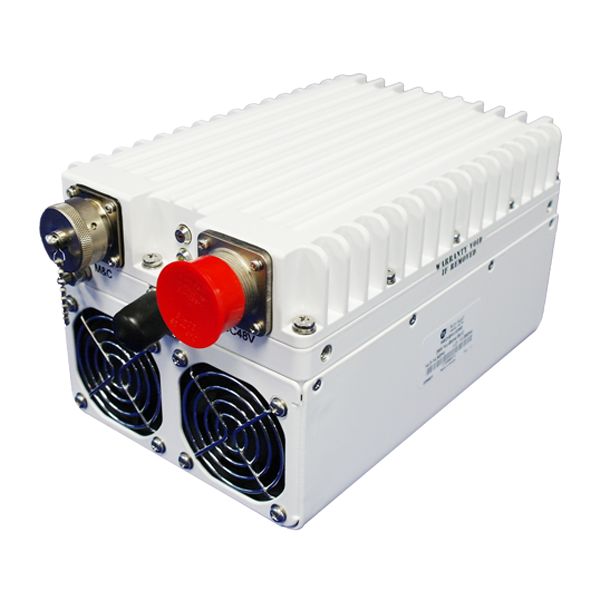

KEY SPECIFICATIONS
|
|
Product Family
|
MEDIAN
|
|
Band
|
Ku-Band
|
|
Output Power (Rated)
|
25W
|
|
Noise Figure
|
65 dB
|
|
Input Frequency - Band 1
|
L-Band: 950 - 1700 MHz
|
|
Output Frequency 1
|
Ku-Band: 13.75 - 14.50 GHz
|
|
|
|
RF SPECIFICATIONS
|
|
Output Power (Saturated)
|
25 W
|
|
Output Power( P1dB)
|
44 dBm min
|
|
LO Frequency 1
|
12.80 GHz
|
|
Phase Noise @ 1KHz offset
|
-73 dBc/Hz
|
|
Phase Noise @ 10KHz offset
|
-83 dBc/Hz
|
|
Phase Noise @ 100KHz offset
|
-93 dBc/Hz
|
|
Phase Noise @ 1MHz offset
|
-103 dBc/Hz
|
|
Conversion Gain
|
65 dBm nominal
|
|
Gain Variation over operating band
|
+/- 2.0 dBm over full extended band
|
|
Gain Variation over temperature
|
+/- 1.5 dBm
|
|
Input VSWR
|
1.5 : 1
|
|
Output VSWR
|
1.25 : 1
|
|
Spurious
|
-55 dBc max
|
|
|
|
ELECTRICAL SPECIFICATIONS
|
|
Power Consumption @ Rated Power
|
240W
|
|
Power Consumption @Psat
|
215W at 3 dB back-off from rated power
|
|
Power Requirements
|
36 - 72 V ; 48 V over IFL (optional)
|
|
|
|
INTERFACE SPECIFICATIONS
|
|
RF Input Connector
|
N-50 Ohm
|
|
RF Output Connector
|
WR75 - G (grooved)
|
|
|
|
M & C SPECIFICATIONS
|
|
M & C Interface
|
RS - 232 / RS - 485 / Ethernet
|
|
M & C Connector
|
1PT02E - 14 - 19P (MS3112)
|
|
LED Indicators
|
Red, Yellow
|
|
|
|
ENVIRONMENTAL SPECIFICATIONS
|
|
Temperature - Operational
|
-30°C to +55°C
|
|
Weatherproofing
|
IP 65
|
|
|
|
PHYSICAL SPECIFICATIONS
|
|
Cooling
|
Fan
|
|
Dimensions (L x W x H)
|
206 x 136 x 117 mm
|
|
Weight
|
4.50 kg
|
