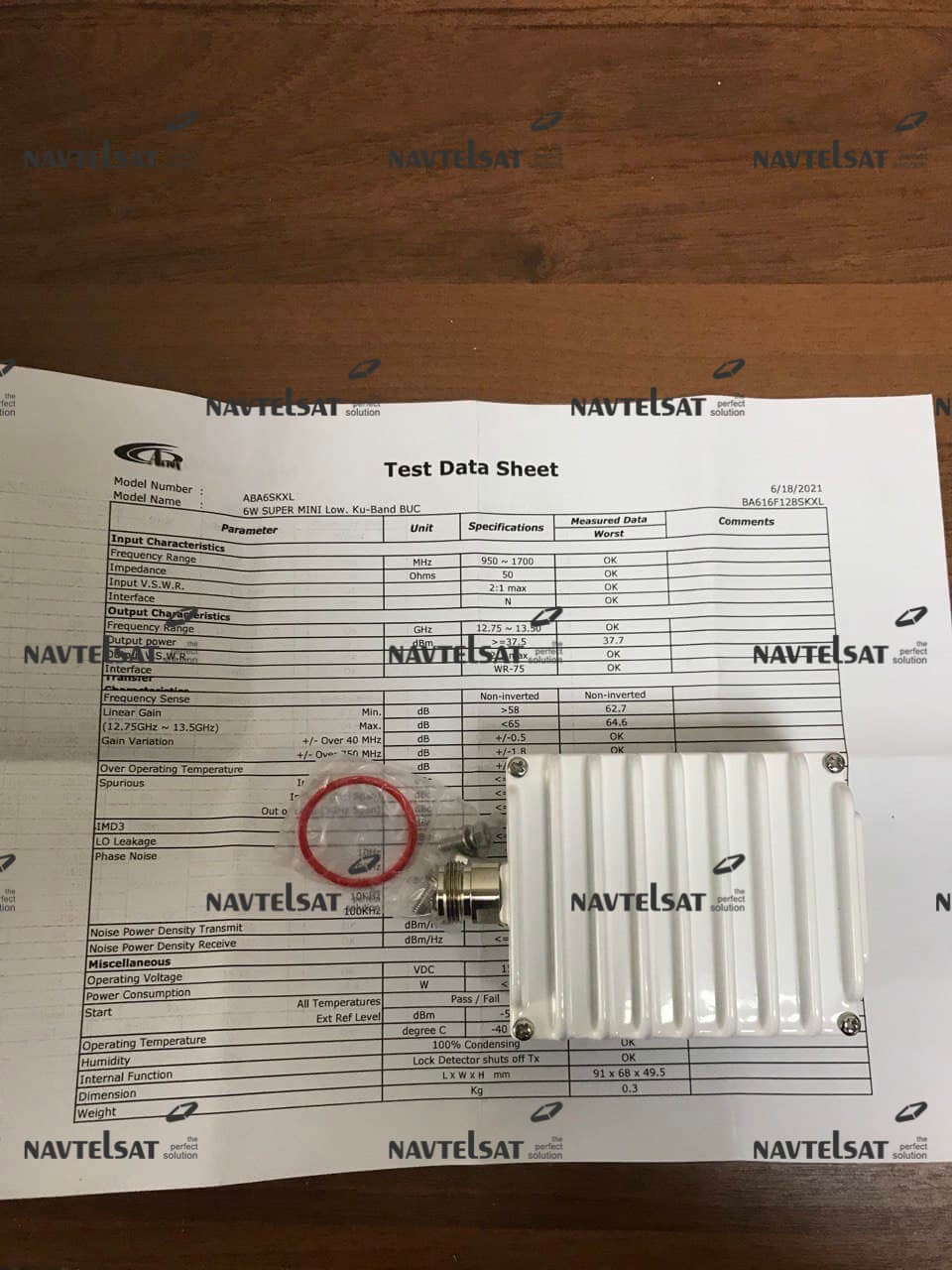

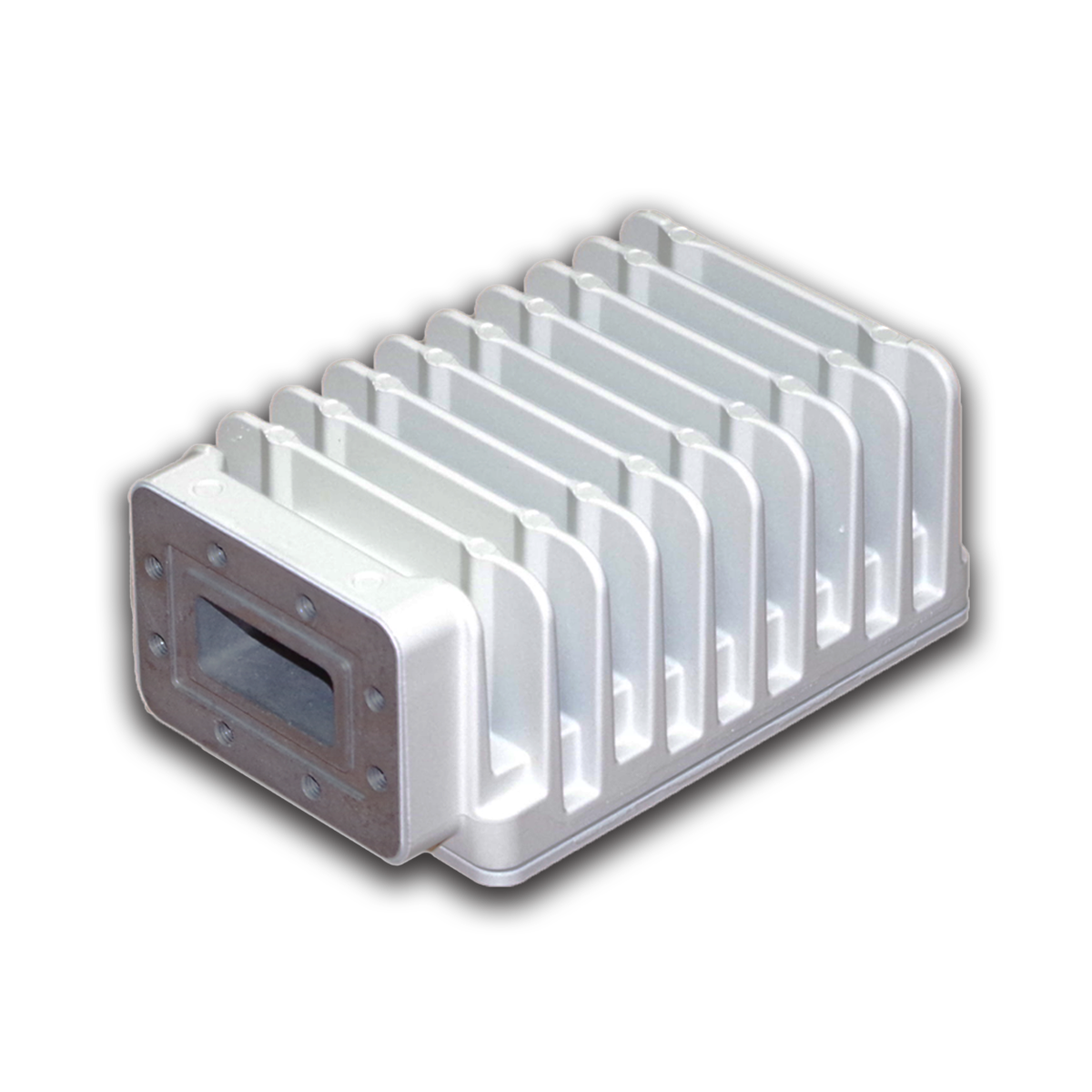

BUC ABA6SKXL / ABA6SKXLF 6W Ku-Band

Parameter

Value

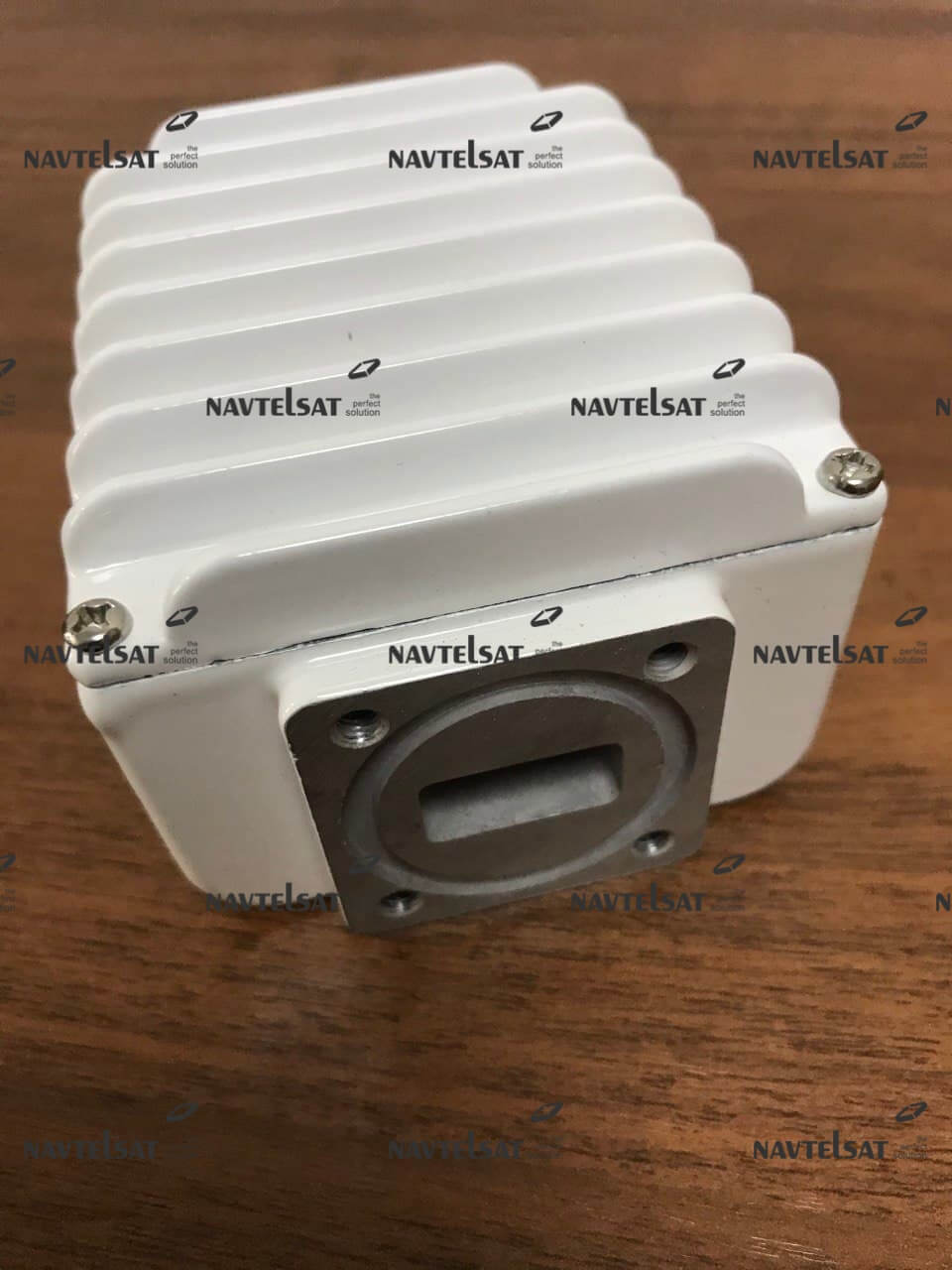

Output interface

Waveguide, WR-75

Output power

6W (+37.8 dBm min.), P-Linear 3W (+34.8 dBm min.)

Conversion gain

62 dB nom.

External reference required frequency

External reference input power

Phase noise (Exceeds Intelsat’s standard IESS308/309)

10 MHz (sine-wave)
-5 to +5 dBm @ input port
-50 dBc/Hz max. @ 10 Hz
-60 dBc/Hz max. @ 100 Hz
-70 dBc/Hz max. @ 1 KHz
-80 dBc/Hz max. @ 10 KHz
-90 dBc/Hz max. @ 100 KHz
-100 dBc/Hz max. @ 1 MHz

Input V.S.W.R.

1.5:1 max

Output V.S.W.R.

1.5:1 max

Power supply

+15 VDC~+24 VDC via IF cable 32 W max.

Mute

Shut off the BUC if LO unlocked

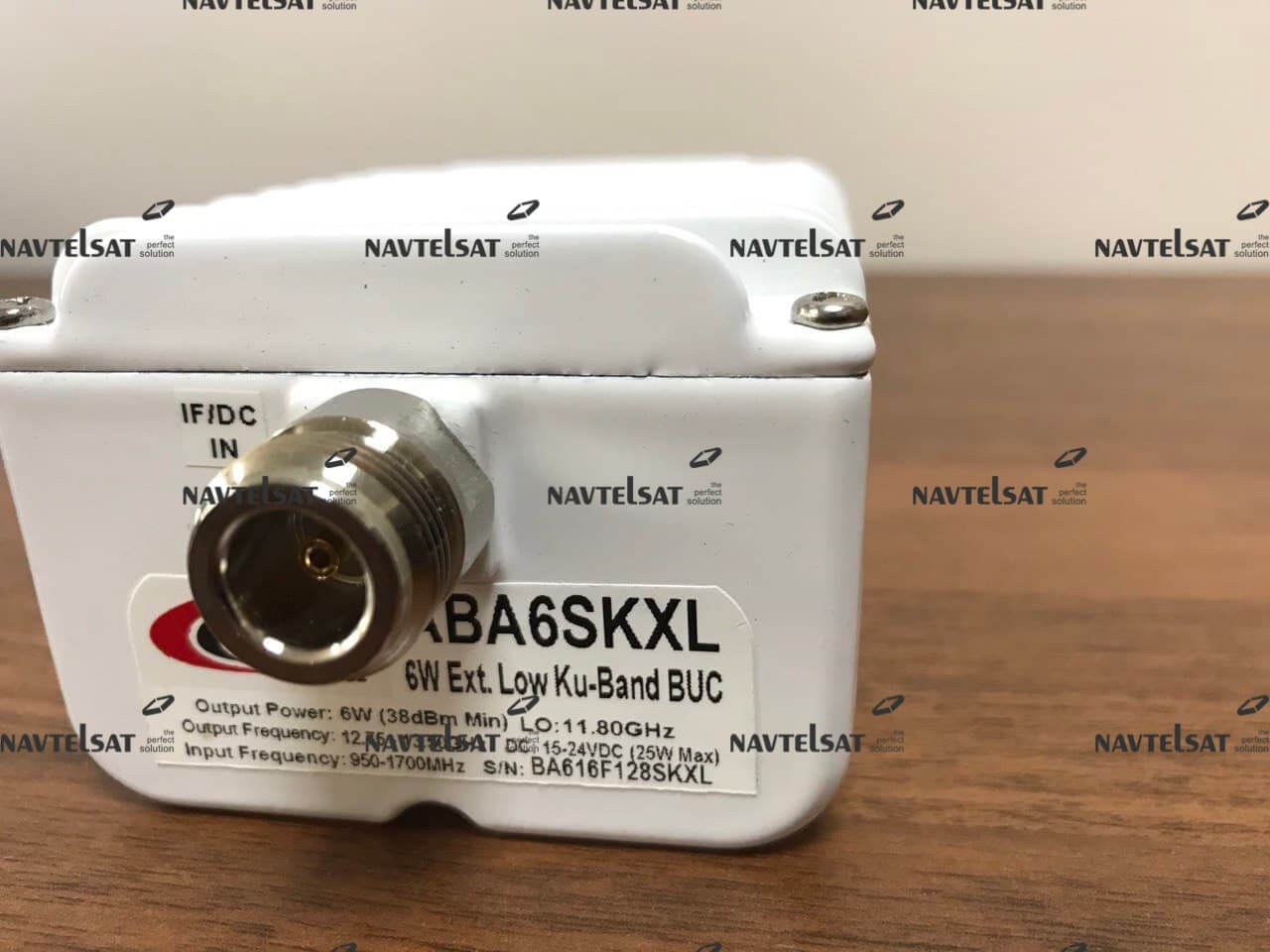

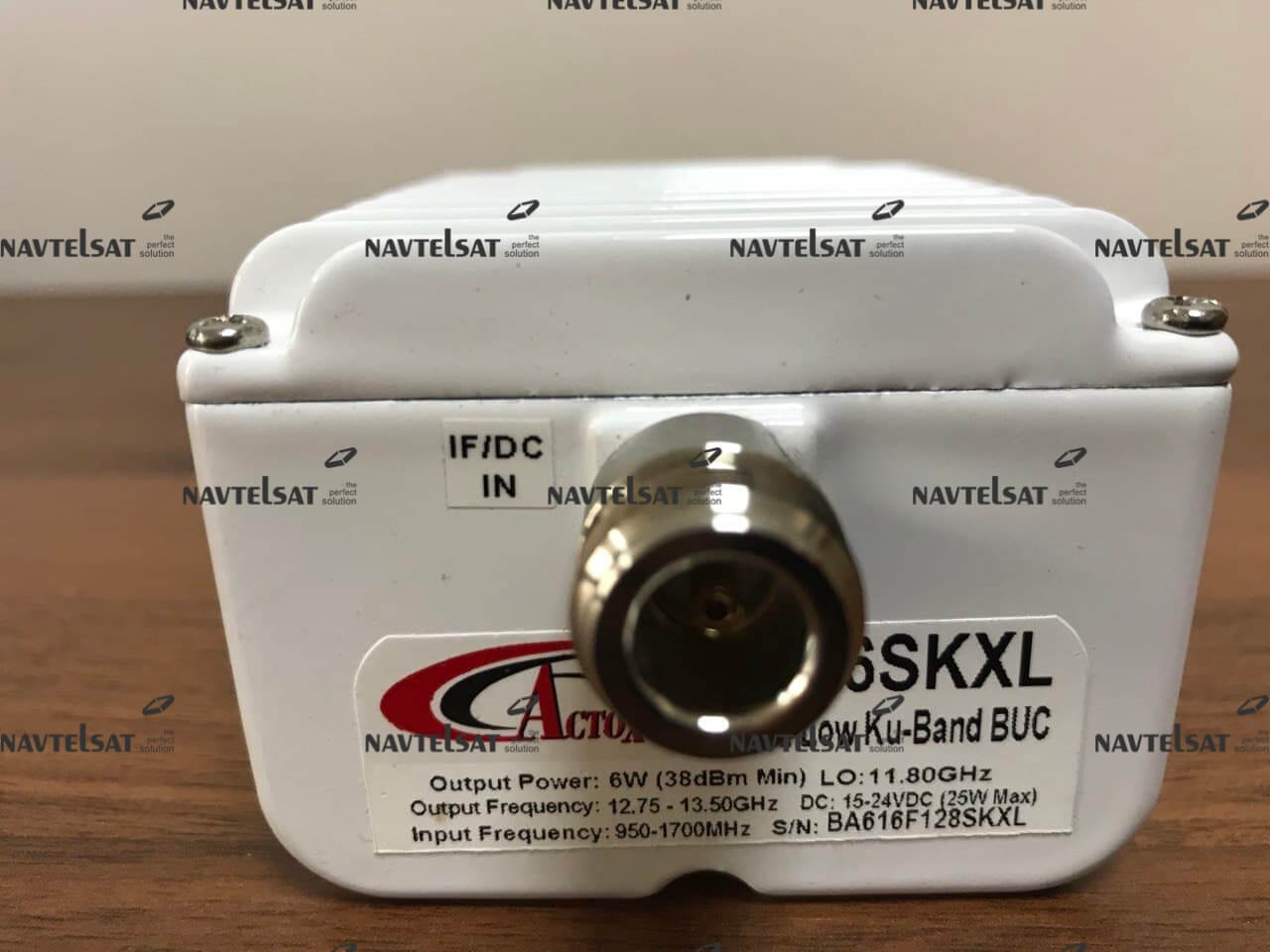

Input interface

N-type, female (50 Ohm)

F-type, female (75 Ohm)

Power consumption

32W max.

Operating temperature

-40 to +55 degrees C

Storage temperature

-55 to +85 degrees C

Vibration & shock

Complies with MIL-STD-810E

Size

84 (L) x 68 (W) x 49.5 (H) mm
3.30” (L) x 2.67” (W) x 1.94” (H)

Weight

0.340 kg (0.75 lbs) max.
