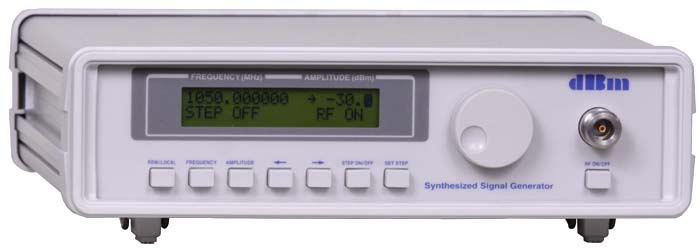

Генератор сигналов SSG

Нет в наличии
Сравнить

Производитель
dBm
Тип оборудования
Synthesized Signal Generator

Frequency Range

10 MHz to 4000 MHz

Frequency Resolution

10 Hz up to 1999.99999 MHz,
20 Hz for 2000-4000 MHz

Frequency Accuracy

+/-2 PPM internal reference or per external reference

Frequency Update Rate

2 ms via LAN or GPIB

Settling Time

Standard:
200 usec typical

Special Purity

Phase Noise:
at 1 GHz
-55 dBc @ 10 Hz
-81 dBc @ 100 Hz
-103 dBc @ 1kHz
-107 dBc @ 10 kHz
-108 dBc @ 100 kHz
-128 dBc @ 1 MHz
Spurious:
< -50 dBc
Output Noise Floor:
< -145 dBm/Hz
2nd Harmonic:
< -20 dBc
3rd Harmonic:
< -30 dBc

Output Power

Power Range:
+10 dbm to -30 dBm
Power Resolution:
0.1 dB
Power Accuracy:
+/- 0.5 dB -20 to +10 dBm
+/- 0.75 dB @ <-20 dBm

Impedance

50 ohms

VSWR

2:1 maximum into 50 ohms

External Reference

10 MHz sine, 0 dBm +/- 3dB

Enviroment

Operating Temp:
0º C to +35º C
Shock and Vibration:
MIL-PRF 28800F
Type III Class 4
EMI:
MIL-STD 461B RE02
Part 2 and CISPR II

Control and Interface

Local Interface:
Front panel keypad and display
Remote Interface:
IEEE-488.2, LAN, RS-232

Primary Power

Voltage:
90-264 VAC autoranging
Frequency:
48-66 Hz
Consumption:
40 VA, maximum
Fuse:
1A, slow-blow

Physical

Ambient operating temp:
0º to 35º C
Dimensions:
10″ W x 2.75″ H x 10″D
