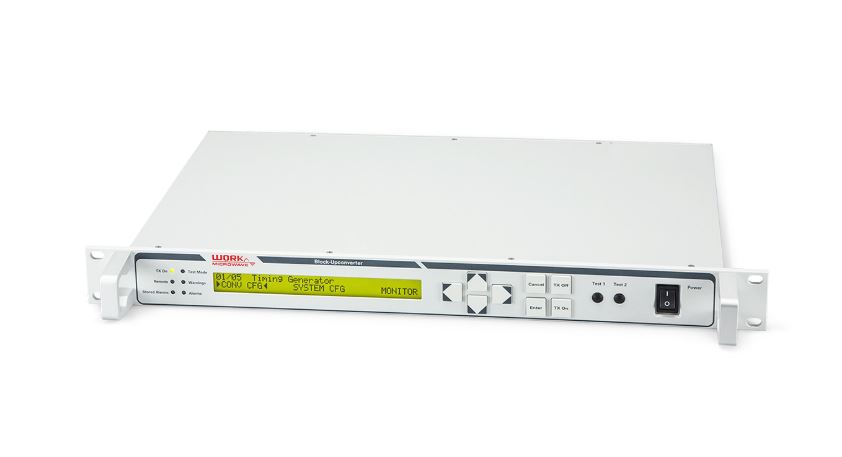

Timing Generator
Timing Generator
- Производитель
- WORK Microwave
- Тип оборудования
- Timing Generator
| 10 MHz OCXO | ||
| OCXO type | MTI 270-0269 or MV180 | |
| stability: | 5.0E-10 (0 .. 75 °C) | |
| aging | 5.0E-10/Tag; 5.0E-8/year | |
| phase noise | offset Hz | dBc/Hz |
| 1 | -90 | |
| 10 | -120 | |
| 100 | -140 | |
| 1k | -150 | |
| 10k | -155 | |
| 100k | -155 | |
| short term stability (1 s) | 7,00E-12 | |
| 10 MHz reference input | ||
| level | 0 .. 10 dBm | |
| connector | SMA female | |
| modes | Internal, External, Automatic | |
| 10 MHz output | ||
| level | 10 ± 3 dBm | |
| phase noise | offset Hz | dBc/Hz |
| 1 | -90 | |
| 10 | -120 | |
| 100 | -140 | |
| 1k | -150 | |
| 10k | -150 | |
| 100k | -155 | |
| connector | SMA female | |
| 10 MHz monitor output | ||
| level | 0 ± 3 dBm | |
| connector | SMA female | |
| 200 MHz rf output | ||
| level | 10 ± 3 dBm | |
| phase noise | offset Hz | dBc/Hz |
| 1 | -63 | |
| 10 | -92 | |
| 100 | -111 | |
| 1k | -123 | |
| 10k | -130 | |
| 100k | -140 | |
| connector | SMA female | |
| 200 MHz monitor output | ||
| level | 0 ± 3 dBm | |
| connector | SMA female | |
|
Phase adjustment at 200 MHz |
||
| range | -360° .. 360° | |
| resolution | 0.5° | |
| accuracy | ± 1° | |
| aging | tbd | |
| Phase modulation at 200 MHz | ||
| modulation | BPSK | |
| bit length | 100ns, bit clock locked to 200 MHz rf signa | |
| modulation data | free programmable bitsequence up to 1024 bits | |
| trigger output | TTL (50R) | |
| trigger input | TTL (50R) | |
| Temperature regulation | ||
| temperature | 60°C for reference board with analogue PLL circuits | |
| Alarms | ||
| temperature regulation | ± 1°C | |
| PLLs | unlocked | |
| Control | ||
| front pane | keyboard , LCD display | |
| remote control | Ethernet | |
| Case | ||
| dimension | 19'' , 1HE, 483x44x260mm ( except connectors ) | |
| Power Supply | ||
| voltage | 85-264 VAC | |
| connector | iec power connector | |
| fuse | 3,15A time lag | |
| Options | ||
| frequency | 243 MHz without BPSK modulation | |
| frequency | 155.52 MHz without BPSK modulation | |
