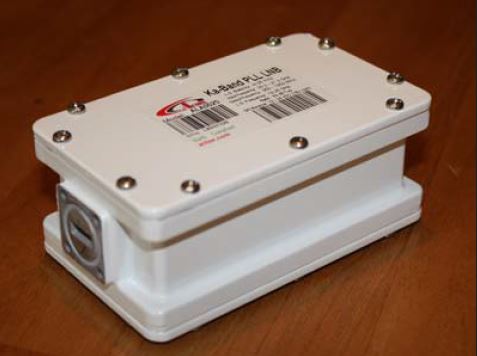

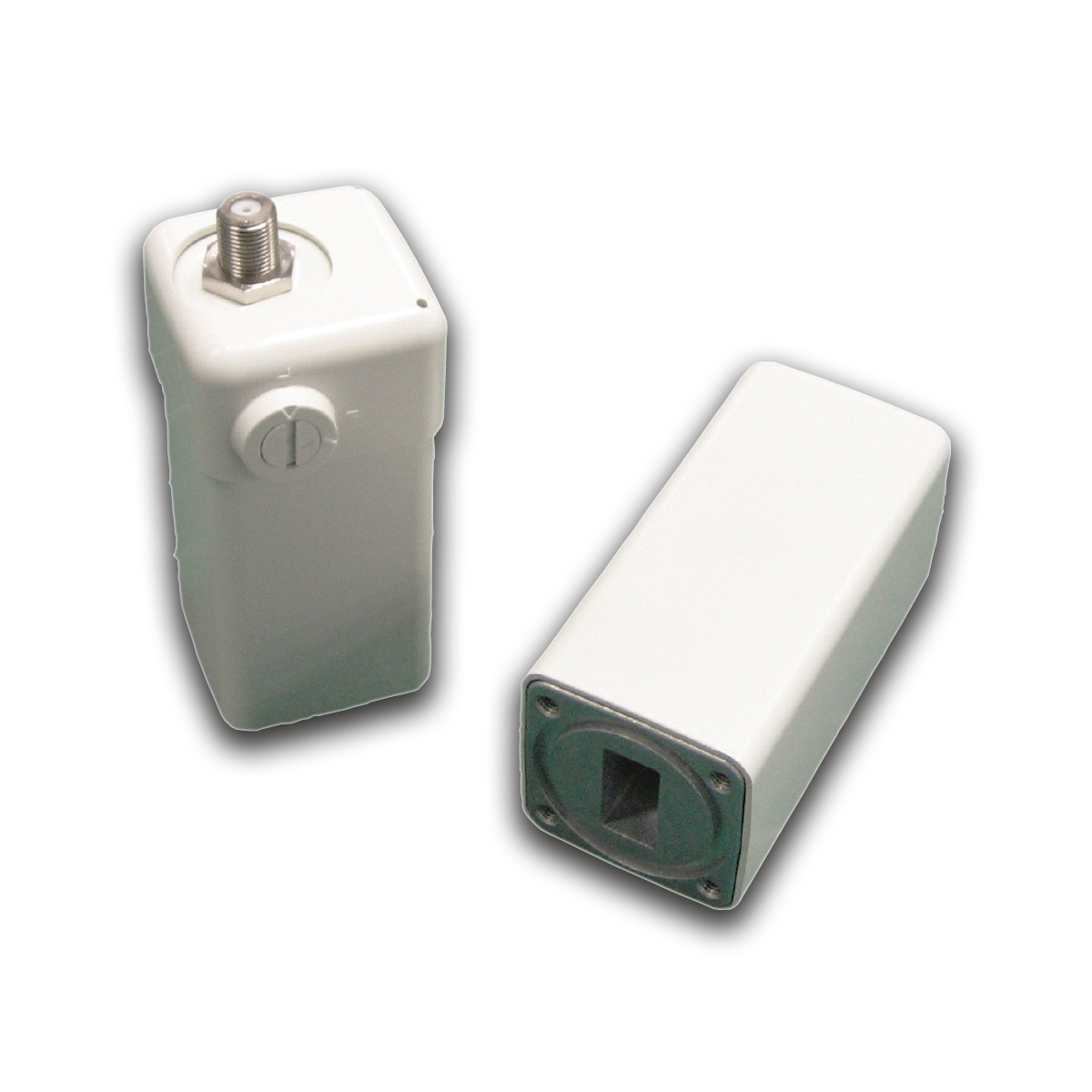

МШУ Ka-Band External Reference LNB
- Производитель
- Actox Corporation
- Диапазон
- Ka-band
- Тип оборудования
- LNB
|
Model |
RF Frequency |
IF Frequency |
L.O. |
|
ALAX |
18.2 - 19.2 GHz |
950 - 1950 MHz |
17.25 GHz |
|
ALBX |
19.2 - 20.2 GHz |
950 - 1950 MHz |
18.25 GHz |
|
ALCX |
20.2 - 21.2 GHz |
950 - 1950 MHz |
19.25 GHz |
|
ALDX |
21.2 - 22.2 GHz |
950 - 1950 MHz |
20.25 GHz |
Conversion gain 55 dB typ.(50dB min. 62dB max.)
Gain flatness 5 dB p-p max.
Input VSWR 2.2 : 1 typ.
Output VSWR 2.2 : 1 typ.
IF connector "F" or "N" - type female
IF impedance 75 or 50 ohms
RF interface WR - 42 Grooved
Leakage -55 dBm max.
Phase noise Ext. ref. dependent
Noise figure .95 dB max.
Ext. ref. frequency 10 MHz
Gain ripple(per 27MHz) 1 dBp-p max.
Ext. ref. level - 10 to 0 dBm
1dB gain comp. point +7 dBm min.
L.O. stability (over temp) Locked Ext. Ref.
Current 300 mA max.
Relative humidity 0% to 95% RH
Storage temperature -40C - + 80C
Power supply +12 - +24 VDC
Weight (g) 350
Operating temperature -30C - +60C
Dimensions (mm) 101 x 60 x 41
