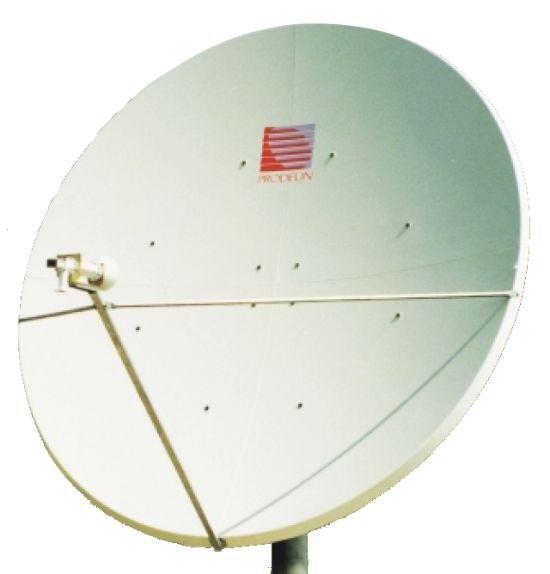

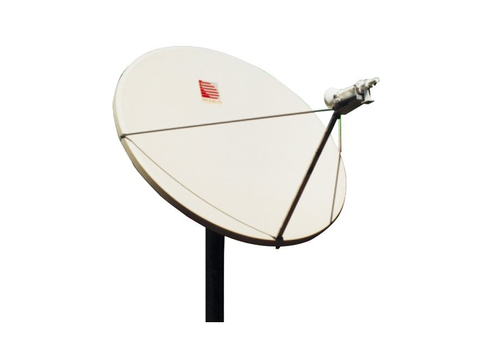

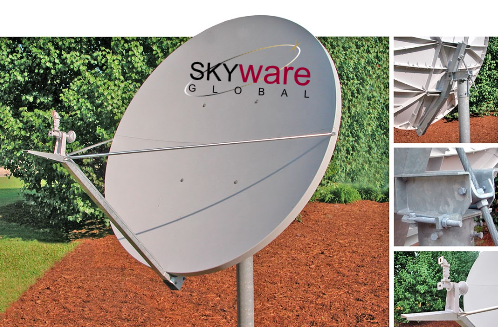

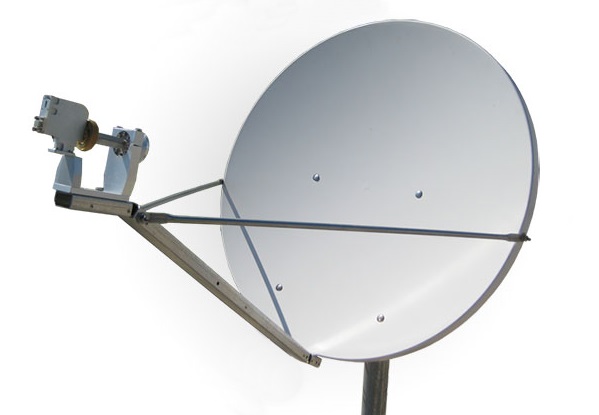

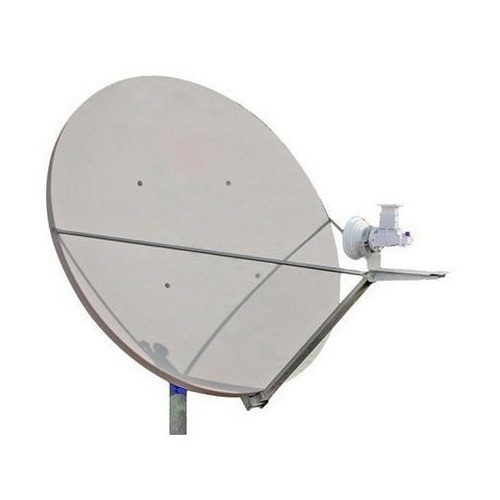

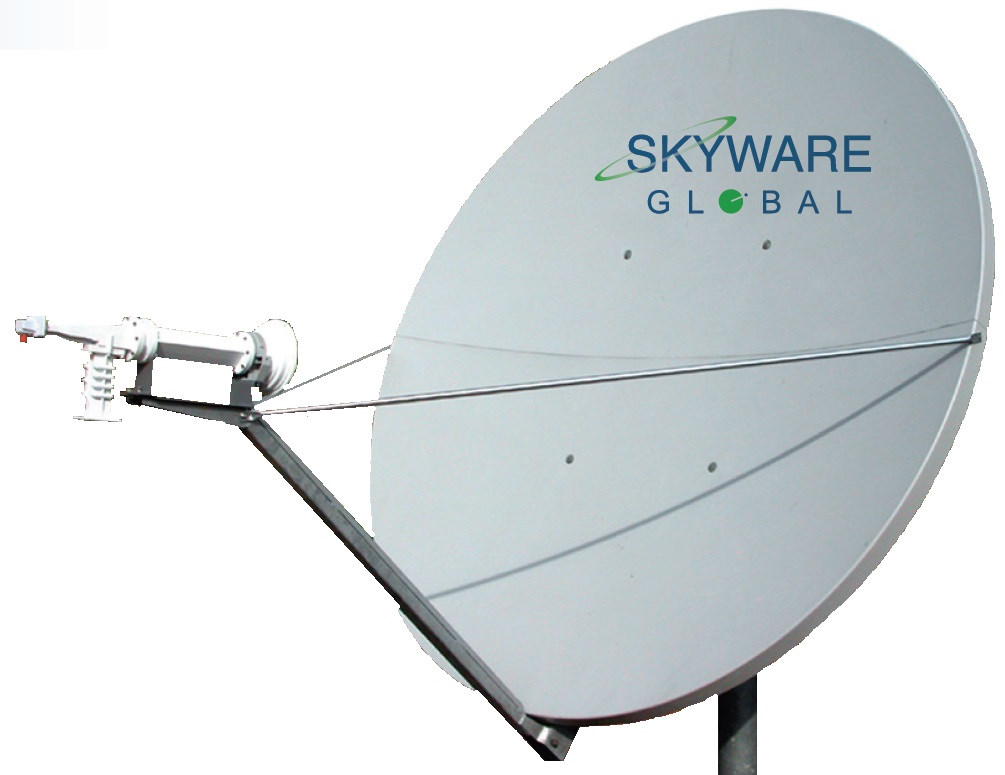

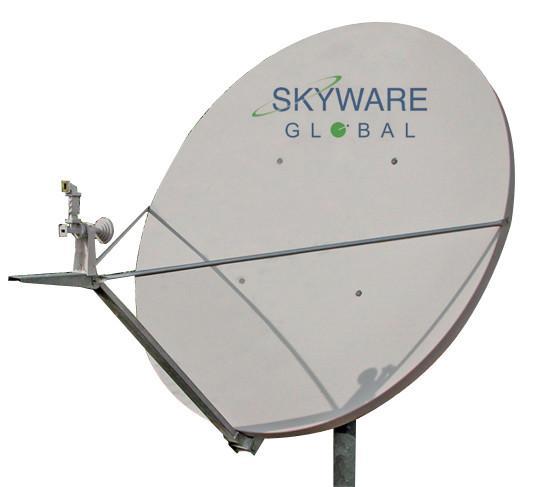

Фиксированная антенна VSAT Prodelin 1,2 м Ku-Band QR Rx/Tx 1134
- Производитель
- CPI
- Диапазон
- Ku
- Тип оборудования
- Фиксированная антенна VSAT
Антенны Prodelin обеспечивают высокое качество благодаря сложной, точной технологии прессования SMC.
Все антенны имеют офсетное исполнение и пластиковые рефлекторы с водоотталкивающим покрытием, что препятствует налипанию снега.
Антенны Prodelin имеют одобрение для работы с Intelsat, AsiaSat и Eutelsat.
|
Electrical |
Series 1134Ku-Band |
|
|
Antenna Size |
1.2 M (48 in.) |
|
|
Operating Frequency (GHz) |
ReceiveTransmit |
10.95 - 12.75 GHz14.00 - 14.50 GHz |
|
Midband Gain ( + .2dB) |
ReceiveTransmit |
41.50 dBi43.00 dBi |
|
Antenna Noise Temperature 20° Elevation 30° Elevation |
46 K43 K |
|
|
Sidelobe Envelope, Co-Pol (dBi) 1° ≤ q ≤ 20° 20° < q < 26.3° 26.3° < q ≤ 48° 48° < q |
29 - 25 Logq dBi-3.5 dBi32 - 25 Logq dBi-10 dBi (averaged) |
|
|
Cross-Polarization |
Within 1 dB contourAny Angle off Axis |
-30 dB Max.-25 dB Max. |
|
VSWR |
1.3:1 Max. |
|
|
Mechanical |
|
|
Reflector Material |
Glass Fiber Reinforced Polyester SMC |
|
Antenna Optics |
Prime Focus, Offset Feed |
|
Mast Pipe Size |
2 1/2” SCH 40 Pipe (2.88” OD) 73.2 mm. |
|
Elevation Adjustment Range |
5° to 90° Continuous Fine Adjustment |
|
Azimuth Adjustment Range |
+/- 20° Fine, 360° Continuous |
|
Mount Type |
Elevation over Azimuth |
|
Shipping Specifications |
90 lbs. (41 kg.) |
|
Environmental Performance |
||
|
Wind Loading |
OperationalSurvival |
50 mph (80 km/h)125 mph (201 km/h) |
|
Temperature |
OperationalSurvival |
-40° to 140° F (-40° to 60° C)-50° to 160° F (-46° to 71° C) |
|
Rain |
OperationalSurvival |
1/2”/hr2”/hr |
|
Ice |
OperationalSurvival |
------1/2” radial |
|
Atmospheric Conditions |
Salt, Pollutants and Contaminants as Encountered in Coastal and Industrial Areas |
|
|
Solar Radiation |
360 BTU/h/ft2 |
|
