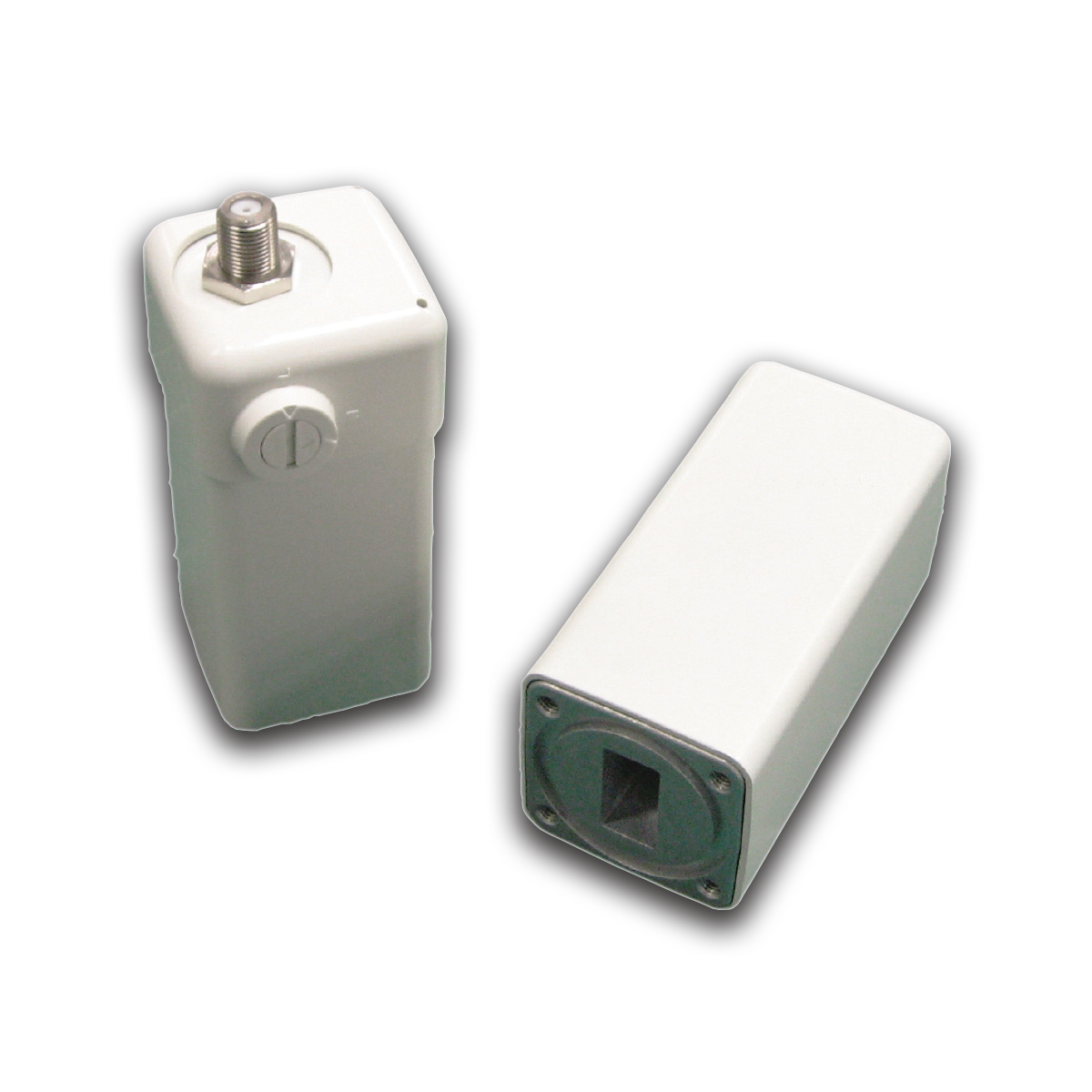

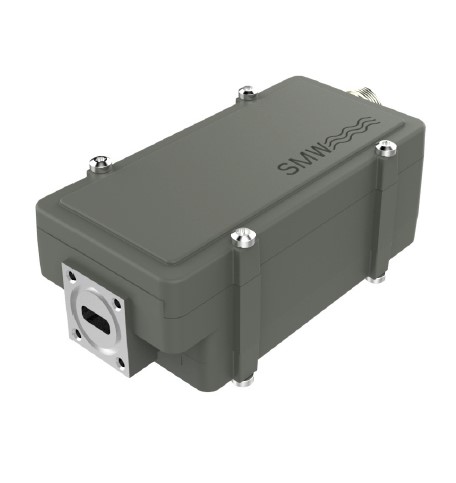

МШУ Ka-Band LNB
- Производитель
- Swedish Microwave
- Диапазон
- Ka-band
- Тип оборудования
- LNB
|

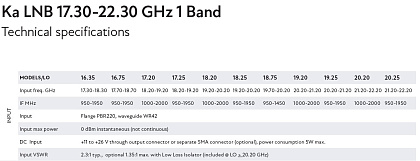

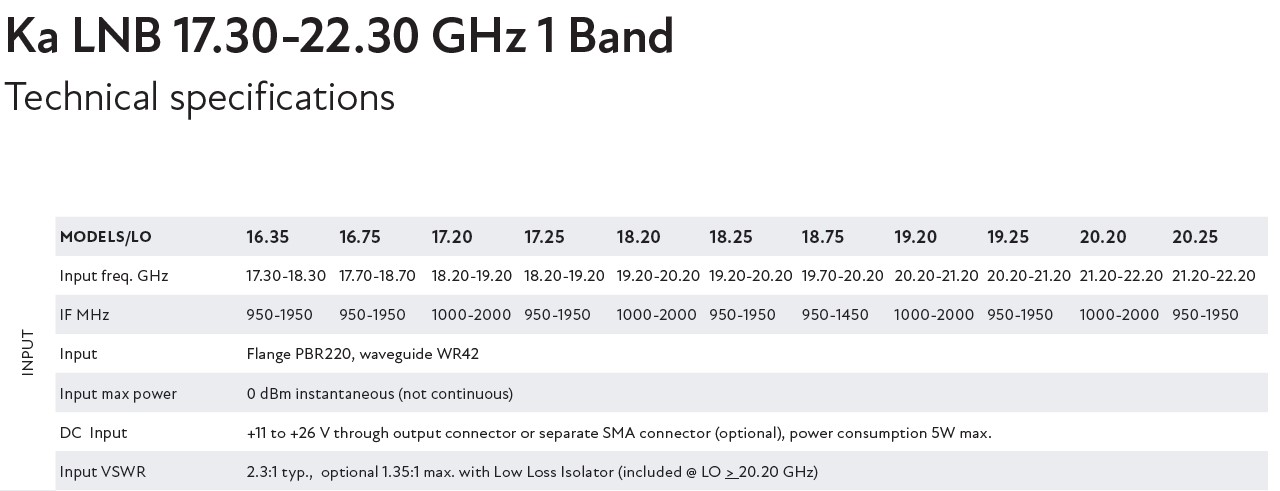

Model |
16.35 GHz (17.30-18.30 GHz), 16.75 GHz (17.70-18.70 GHz), 17.20 GHz (18.20-19.20 GHz), 17.25 GHz (18.20-19.20 GHz), 18.20 GHz (19.20-20.20 GHz ), 18.25 GHz (19.20-20.20 GHz), 18.75 GHz (19.70-20.20 GHz), 19.20 GHz (20.20-21.20 GHz), 19.25 GHz (20.20-21.20 GHz), 20.20 GHz (21.20-22.20 GHz), 20.25 GHz (21.20-22.20 GHz) |
|
Internal/External reference |
±1 ppm -20 to +70ºC (±1,5 ppm -40 to +80ºC), ±2.5 ppm -20 to +80°C, ext. 10 MHz ref. |
|
Output connector |
F-connector, N-connector, SMA-connector |
|
Options |

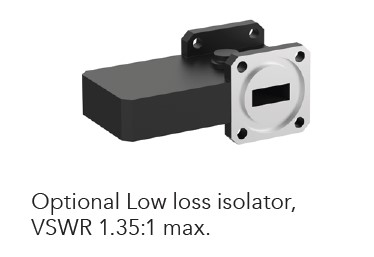

Customized LO, gain & variation, Separate DC input, Separate 10 MHz ref. input, Waveguide Isolator (input VSWR 1.4:1 max), Separate DC input connector F-, N- or SMA-type. Fiber output (Q-ODC) |
|
Gain |
60 dB, 0 dB |
