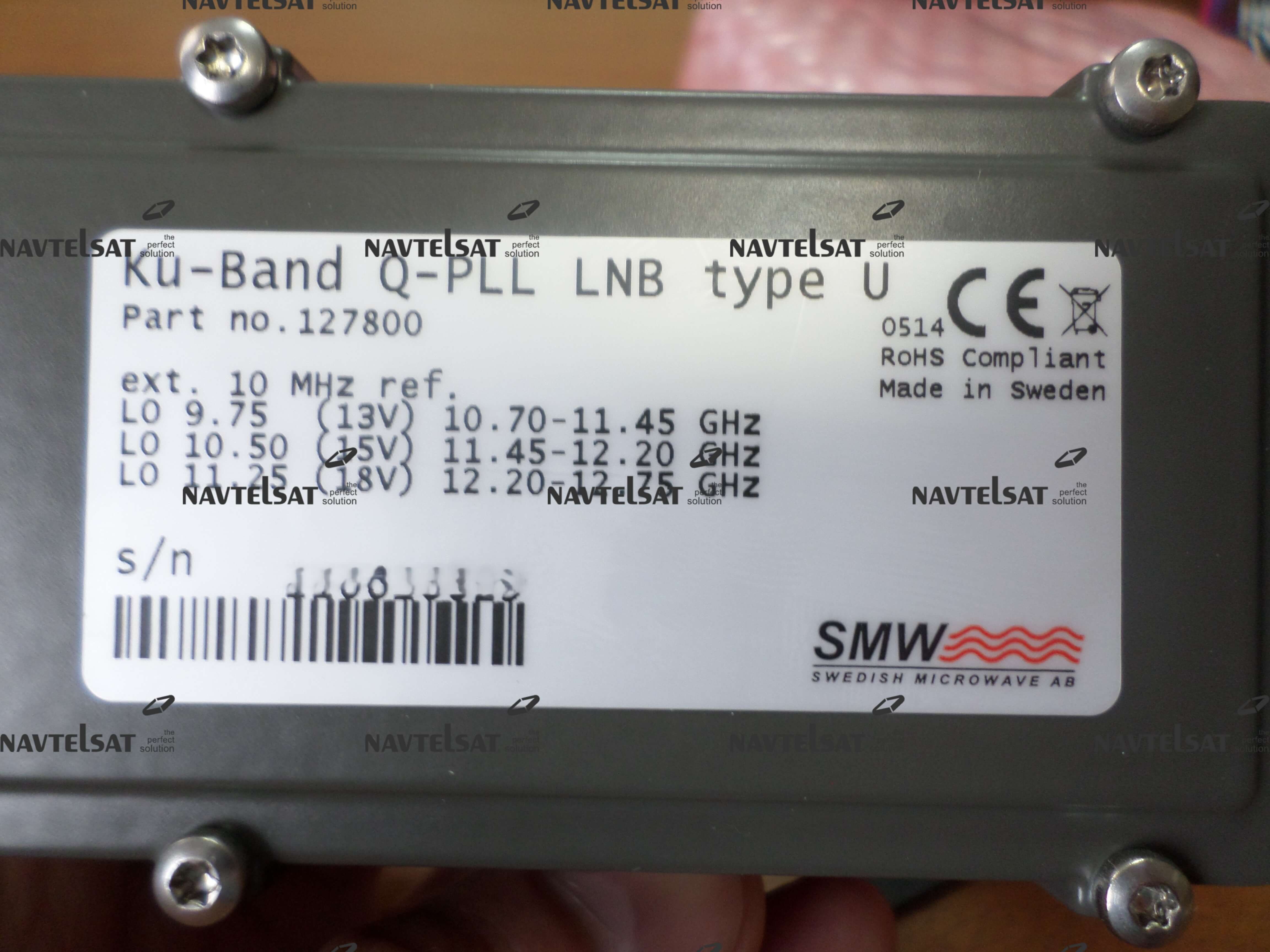

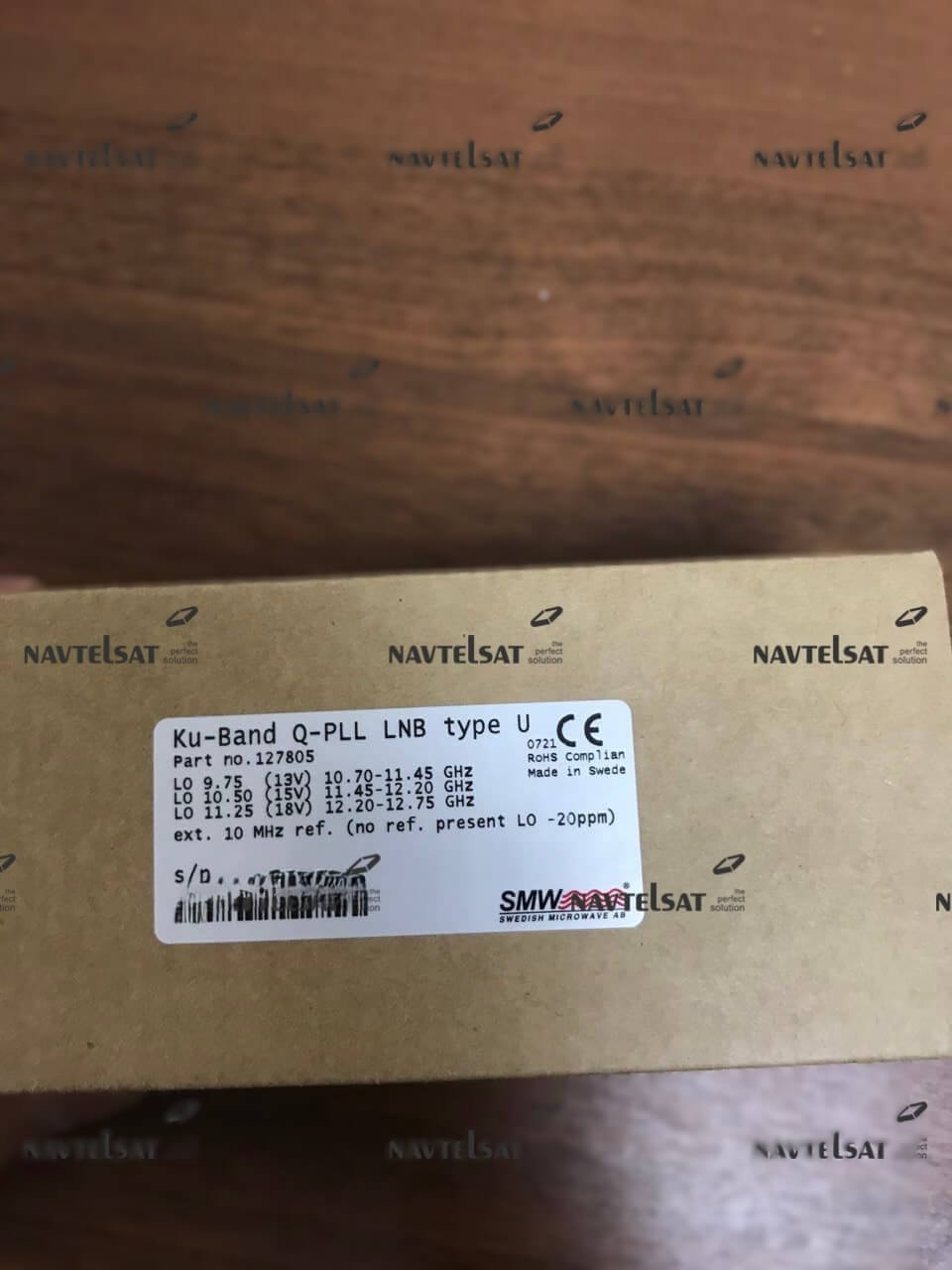

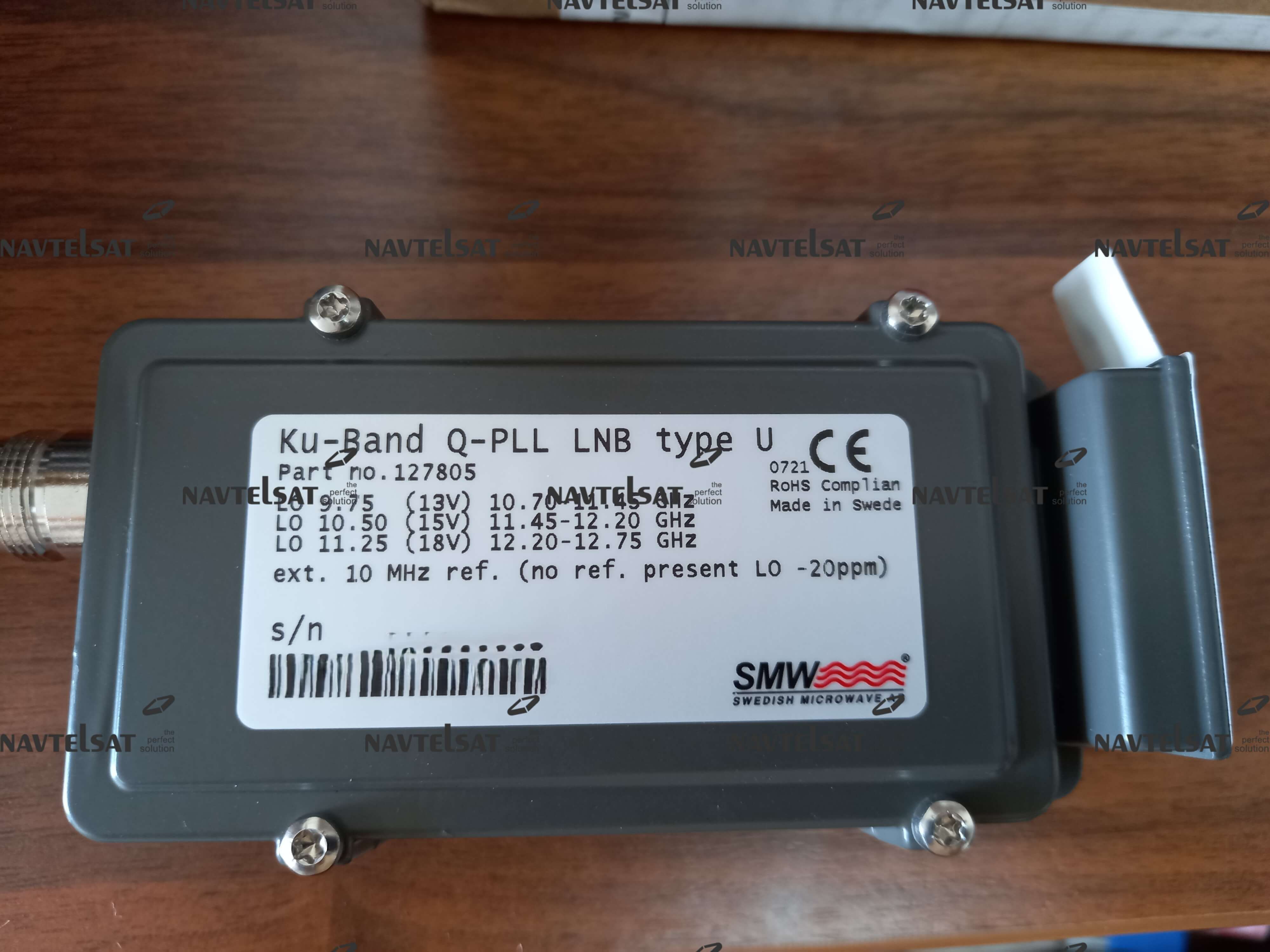

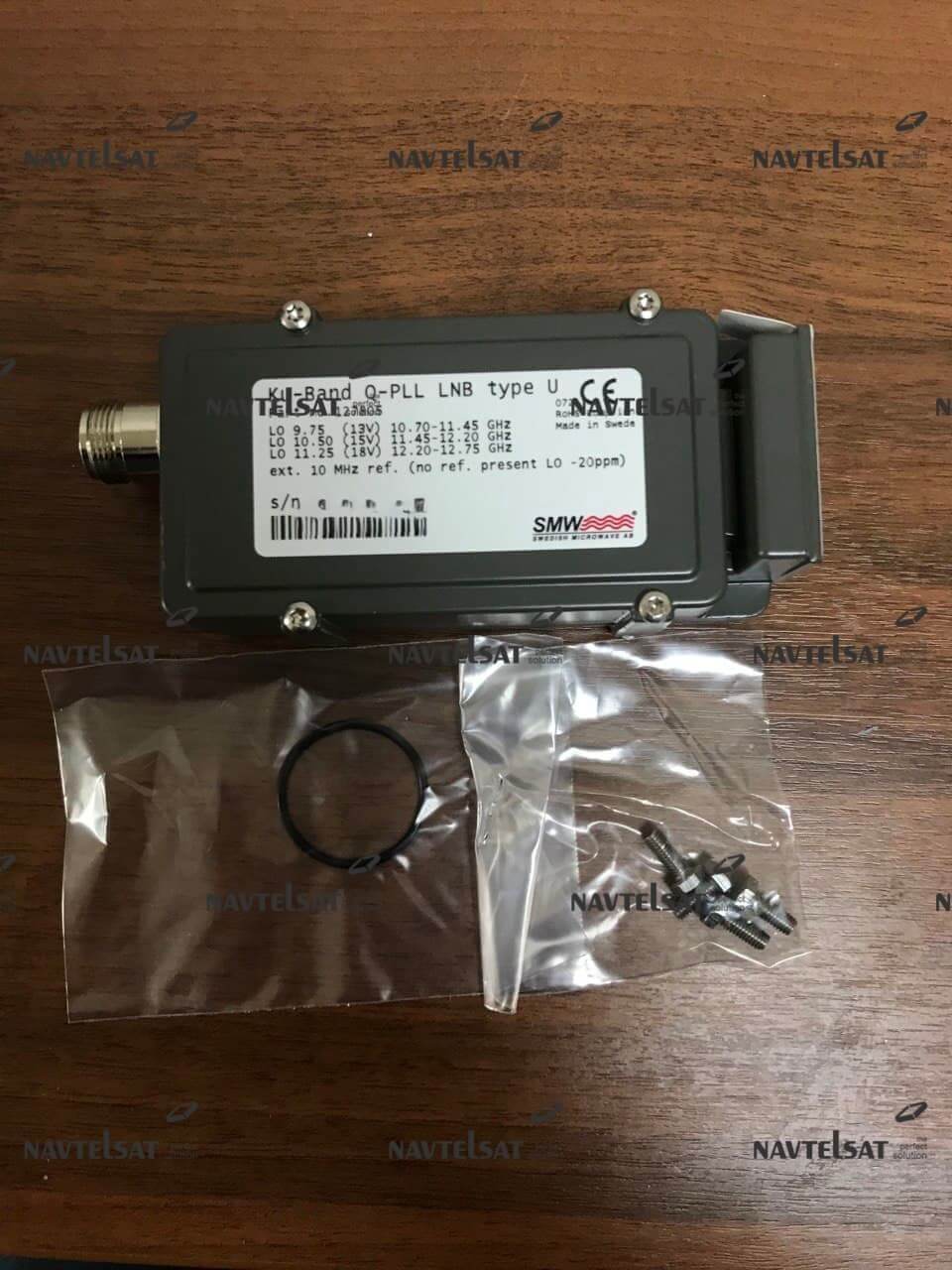

Малошумящий усилитель МШУ/МШПР SMW Ku-Band Q-PLL LNB type U

Band switching

3-Band Voltage (V) 13/15/18 V

Type (LO's): Input freq. (GHz)

9.75 (13V): 10.70–11.45

10.50 (15V): 11.45–12.20

11.25 (18V): 12.20–12.75

Internal/External 10MHz reference

±1 ppm -20 to +70ºC (±1,5 ppm -40 to +80ºC), ±0,5 ppm -20 to +70ºC (±1,0 ppm -40 to +80ºC), External 10 MHz reference

Output connector

F-connector, N-connector, SMA- connector

Sep. input external 10 MHz ref.

F-connector, N-connector, SMA-connector, N/A

Sep. DC input

Sep. DC input (SMA-connector), N/A

Gain

60dB typ. 55dB min.

Options:

Customized LO frequency and frequency range
