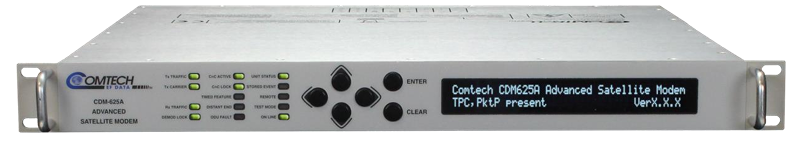

Спутниковый модем Comtech CDM-625A Advanced Satellite Modem
Отправить запрос на коммерческое предложение прямо сейчас
У Вас есть проект или задача, где нужно применить данное оборудование? Компания Navtelsat осуществила поставки и успешную интеграцию уже сотен наименований спутниковых модемов производства Comtech и имеет богатый опыт в данном направлении.
- Производитель
- Comtech
- Диапазон
- L
- Тип оборудования
- Спутниковый модем
Передовой спутниковый модем CDM-625 создан на базе богатого опыта Comtech EF Data по разработке наиболее эффективных спутниковых модемов. Это первый модем, объединяющий технологию Forward Error Correction (FEC) – VersaFEC, коды Low Density Parity Check (LDPC) и революционную технологию сжатия полосы пропускания DoubleTalk Carrier-in-Carrier, что позволяет в любых условиях максимально экономить спутниковый ресурс. Сочетание передовых технологий дает возможность применять многомерную оптимизацию, позволяющую пользователям спутниковой связи:
- минимизировать эксплуатационные расходы (OPEX)
- максимально увеличить пропускную способность без использования дополнительных ресурсов транспондеров
- максимально увеличить доступность без использования дополнительных ресурсов транспондеров
- минимизировать капитальные затраты (CAPEX), допуская меньшие BUC/HPA и/или антенны
- Или использовать комбинацию методов для удовлетворения конкретных потребностей бизнеса
Возможности
- Сжатие полосы DoubleTalk Carrier-in-Carrier
- Автоматическое регулирование мощности суммарного сигнала в режиме Carrier-in-Carrier
- Адаптивное кодирование и модуляция (ACM)
- Пакетный процессор со сжатием заголовков, сжатием полезной информации, улучшенным качеством обслуживания (QoS) и режимом управляемой коммутации (Managed Switch Mode)
- 4-портовый управляемый коммутатор Ethernet с поддержкой VLAN и QoS
- Поддержка Jumbo-кадров
- Поддержка двух частотных диапазонов (70/140 МГц и LBand) в одном устройстве, расширенный диапазон L-Band на прием
- Скорость передачи данных: от 18 кбит/с до 25 Мбит/с
- Символьная скорость: от 18 кбод до 12,5 Мбод
- Модуляции: BPSK, QPSK / OQPSK, 8PSK/8- QAM, 16-QAM
- Алгоритмы FEC: Витерби, последовательный, каскадный Рида-Соломона, TCM, турбокодирование (Turbo Product Code, TPC) (совместимый с IESS-315), код LDPC и VersaFEC (LDPC с низкой задержкой)
- Широкий набор интерфейсов передачи данных: EIA-422/530, V.35, G.703 T1, G.703 E1, G.703 T2, G.703 E2, Quad G.703 E1, ASI, LVDS, HSSI, 4-портовый Ethernet 10/100Base-T
- IEEE 1588v2 Precision Time Protocol
- Мультиплексирование трафика IP/Ethernet и G.703
- Вставка и выделение для T1/E1 (D&I)
- Расширенные вставка и выделение для одиночных T1/E1 и для Quad E1 (D&I++)
- Управление: 10/100Base-T Ethernet для SNMP, SNMP Proxy для удаленной стороны, HTTP, Telnet и EIA-232/EIA-485
- Carrier ID с технологией MetaCarrier®
- Встроенный мониторинг и управление для удаленной стороны (Embedded Distant-end Monitor and Control, EDMAC)
- Автоматический контроль мощности несущей (Automatic Uplink Power Control, AUPC)
- Сервисный канал (Engineering Service Channel, ESC/ESC++)
- Стандартный высокостабильный внутренний источник синхронизации (± 6 x 10-8)
- 5-уровневый адаптивный эквалайзер
- L-Band TX: синхронизация 10 МГц для BUC, модуляция FSK, опциональный блок питания для BUC
- L-Band: Улучшенный FSK для LPOD M&C
- L-Band RX: синхронизация 10 МГц и блок питания для LNB
- Режимы открытой сети
- Возможно применение коммутаторов резерва в режиме 1:1 и 1:10
| Data Rate | 18 kbps to 25 Mbps, in 1 bps steps (modulation, FEC & data interface dependant) |
| Symbol Rate | 18 ksps to 12.5 Msps |
| Operating Frequency | 50 – 180 MHz (standard) and 950 – 2250 MHz (option) 100 Hz resolution, independent TX and RX operation |
|
Major Operating Modes (See User Manual For Details) |
Open network, per IESS-308 / 309 / 310 / 314 transparent, closed network per IESS-315 LDPC / TPC Codec (option) VersaFEC Codec (option) with ACM or Constant Coding & Modulation (CCM) EDMAC Framed with/without AUPC RS Outer Codec High rate ESC / Enhanced ESC (ESC++) Drop & insert (D&I) /Enhanced D&I++ (option) Quad E1 drop & insert (QDI) (option) DoubleTalk Carrier-in-Carrier (option) |
| FEC & Modulation |
|
| None | Uncoded BPSK/QPSK/OQPSK |
| Viterbi: k=7, per IESS-308/309 |
Rate 1/2 BPSK/QPSK/OQPSK Rate 3/4 QPSK/OQPSK Rate 7/8 QPSK/OQPSK |
| Viterbi with Reed Solomon |
Rate 3/4 16-QAM Rate 7/8 16-QAM |
| Sequential | See CDM-625A user manual for details |
| Reed Solomon | Open network and closed network modes |
| TCM (Per IESS-310) | 8PSK/TCM Rate 2/3 |
| Integrated LDPC and TPC (2nd Gen) Codec (Optional Plug-in Module) |
LDPC Code Rates Rate 1/2 BPSK/QPSK/OQPSK Rate 2/3 QPSK/OQPSK/8PSK/8-QAM Rate 3/4 QPSK/OQPSK/8PSK/8-QAM/16-QAM TPC Code Rates Rate 5/16 BPSK Rate 21/44 BPSK/QPSK/OQPSK Rate 3/4 QPSK/OQPSK/8PSK/8-QAM/16-QAM Rate 7/8 QPSK/OQPSK/8PSK/8-QAM/16-QAM Rate 0.95 QPSK/OQPSK/8PSK/8-QAM |
| VersaFEC Codec (Option) |
BPSK Rate 0.488 QPSK Rate 0.533, 0.631, 0.706, 0.803 8-QAM Rate 0.576 (ECCM), 0.642, 0.711, 0.780 16-QAM Rate 0.644 (ECCM), 0.731, 0.780, 0.829, 0.853 BPSK 0.493 (ULL) QPSK 0.493, 0.654, 0.734 (ULL) |
| VersaFEC-2 Codec (Option) |
Long Block: BPSK Rate 0.489 QPSK Rate 0.489, 0.537, 0.586, 0.611, 0.635, 0.660, 0.684, 0.733 8-QARY Rate 0.521, 0.537, 0.562, 0.586, 0.611, 0.635, 0.660, 0.684, 0.708, 0.733 16-QARY Rate 0.586, 0.611, 0.635, 0.660, 0.684, 0.708, 0.733, 0.757, 0.782 32-ARY Rate 0.660, 0.684, 0.708, 0.733, 0.757, 0.782, 0.801, 0.831, 0.855, 0.879 Short Block: BPSK Rate 0.489 QPSK Rate 0.489, 0.537, 0.586, 0.611, 0.635, 0.660, 0.684, 0.733 8-QARY Rate 0.521, 0.537, 0.562, 0.586, 0.611, 0.635, 0.660, 0.684, 0.708, 0.733 16-QARY Rate 0.586, 0.611, 0.635, 0.660, 0.684, 0.708, 0.733, 0.757, 0.782 32-ARY Rate 0.660, 0.684, 0.708, 0.733, 0.757, 0.782, 0.801, 0.831, |
| Scrambling |
IDR Mode, no RS, - per ITU V.35 (Intelsat variant) IBS mode, no RS - per IESS-309, externally frame synchronized Transparent Closed Network mode, no RS or Turbo coding - per ITU V.35 (Intelsat variant) EDMAC mode, no RS coding - externally frame synchronized - proprietary Turbo Product Code/LDPC/VersaFEC modes - externally frame synchronized - proprietary All RS modes - externally frame synchronized per IESS-308/309/310 |
| Management | 10/100Base-T Ethernet with SNMP, HTTP and Telnet support, EIA-232, EIA-485 (2- or 4-wire) |
| Form C Relays | Hardware fault, RX and TX traffic alarms, open network backward alarms |
|
External Reference (Input OR Output) |
BNC connector Input: 1, 2, 5, or 10 MHz, -6 dBm to +10 dBm, 50 Ω/75 Ω (nominal) Output: 10 MHz, 2.7 V peak-to-peak ± 0.4 V, low impedance output |
| Data Interfaces |
|
| EIA-422/-530 DCE , Up to 14 Mbps | 25-pin D-sub (female) |
| V.35 DCE , Up to 14 Mbps | 25-pin D-sub (female) |
| LVDS Serial , Up to 25 Mbps | 25-pin D-sub (female) |
| HSSI Serial , Up to 25 Mbps | 25-pin D-sub (female) |
| G.703 T1, 1.544 Mbps (Balanced 100 Ω) | 9-pin D-sub (female) or BNC (female) |
| G.703 T2, 6.312 Mbps (Unbalanced 75 Ω or balanced 110 Ω) | 9-pin D-sub (female) or BNC (female) |
| G.703 E1, 2.048 Mbps (Unbalanced 75 Ω or balanced 120 Ω) | 9-pin D-sub (female) or BNC (female) |
| G.703 E2, 8.448 Mbps (Unbalanced 75 Ω) | 9-pin D-sub (female) or BNC (female) |
| ASI , Up to 25 Mbps | BNC (female) |
| Additional 2.048 Mbps E1 Ports for Quad-E1 (Balanced 120 Ω) | 9-pin D-sub (female) |
| Overhead Data | 44-pin High-density D-sub (male) |
| Modem Alarms | 15-pin D-sub (male) |
|
4-port 10/100Base-T Managed Ethernet Switch (Optional Packet Processor Available) |
4 x RJ-45 |
| Modulator | |
|---|---|
| Frequency Stability | ± 0.06 ppm (± 6 x 10-8), 0° to 50°C (32° to 122°F) with internal reference |
| Transmit Filtering | Per IESS-308 |
| Alpha (Rolloff) | 5%, 10%, 15%, 20%, 25%, 35% |
| Harmonics and Spurious |
Better than -60 dBc/4 kHz (typically <-65 dBc/4kHz) Measured from 1 to 500 MHz (50-180 MHz band) Measured F0 ± 500 MHz (950-2250 MHz band) |
| Transmit On/Off Ratio | -60 dBc minimum |
|
Output Phase Noise (dB/Hz - Freq. Offset) < 0.480° rms double sided, 100 Hz to 1 MHz (Minimum 16 dB better overall than the Intelsat IESS-308/309 requirements) |
-63.0 dB/Hz - 100 Hz -73.0 dB/Hz - 1 kHz -83.0 dB/Hz - 10 kHz -93.0 dB/Hz - 100 kHz |
| Fundamental AC line spurious is -42 dBc or lower The sum of all other single sideband spurious, from 0 to 0.75 x symbol rate, is -48 dBc or lower |
|
| Output Power |
50-180 MHz: 0 to -25 dBm, 0.1 dB steps 950-2250 MHz: 0 to -40 dBm, 0.1 dB steps |
| Power Accuracy |
50-180 MHz: ± 0.5 dB over frequency, data rate, modulation type and temperature range of 15 to 35° C ± 0.8 dB over frequency, data rate, modulation type and temperature range of 0 to 50° C 950-2250 MHz: ± 0.7 dB over frequency, data rate, modulation type and temperature range of 15 to 35° C ± 1.0 dB over frequency, data rate, modulation type and temperature range of 0 to 50° C |
| Output Impedance & Return Loss |
50-180 MHz: 50 Ω/75 Ω, 16 dB minimum return loss (18 dB typical), BNC connector 950-2250 MHz: 50 Ω, 19 dB minimum return loss (21 dB typical), Type-N connector |
| Clocking Options |
Internal, ± 0.06 ppm (SCT) External, locking over a ± 100 ppm range (TT) Loop timing (RX satellite clock) – supports asymmetric operation External clock |
| External TX Carrier Off | By TTL ‘low’ signal or external contact closure |
| BUC Reference (10 MHz) | Via TX IF center conductor, 10.0 MHz ± 0.06 ppm (with internal reference), selectable on/off, 0.0 dBm ± 3 dB |
| BUC Power Supply (HW Option) |
24 VDC, 4.17 Amps max., 90 W @ 50° C 48 VDC, 3.125 Amps max., 150 W @ 50° C (180 W @ 30° C) Supplied through TX IF center conductor and selectable on/off via M&C control |
| Demodulator | |
| Input Power Range, Desired Carrier |
50-180 MHz: -105 + 10 log (symbol rate) to -70 + 10 log (symbol rate) dBm 950-2250 MHz: -130 + 10 log (symbol rate) to -80 + 10 log (symbol rate) dBm |
| Max Composite Operating Level |
50-180 MHz: 94 – 10 log (symbol rate, desired carrier) dBc, +10 dBm max., with the additional requirement that within ± 10 MHz of the desired carrier the composite power is ≤ +30 dBc 950-2250 MHz: 102 – 10 log (symbol rate, desired carrier) dBc, +10 dBm max., with the additional requirement that within ± 10 MHz of the desired carrier the composite power is ≤ +30 dBc |
| Absolute Maximum | +20 dBm |
| Adaptive Equalizer | 5-tap design, selectable on/off |
| Acquisition Range | Programmable in 1kHz increments |
| Below 64 ksymbols/sec | ± 1 kHz to ± (Rs/2) kHz, where Rs = symbol rate in ksymbols/sec |
| Between 64 and 389 ksymbols/sec | ± 1 kHz to ± 32 kHz |
| Above 389 ksymbols/sec | ± 1 kHz to ± (0.1 * Rs) kHz, up to a maximum of ± 200 kHz |
| Acquisition Time | Highly dependent on data rate, FEC rate, and demodulator acquisition range. E.g. 120 ms average at 64 kbps, R1/2 QPSK, ± 10 kHz acquisition sweep range, 6 dB Eb/No |
| Plesiochronous/ Doppler Buffer | Selectable from 64 to 262,144 bits, in 16-bit steps (Additional limitations for G.704 frame boundaries) |
| Receive Clock | RX satellite, TX terrestrial, external reference |
| Clock Tracking | ± 100 ppm minimum |
| LNB Reference (10 MHz) | Via RX IF center conductor, 10.0 MHz ± 0.06 ppm (with internal reference), selectable on/off, -3.0 dBm ± 3 dB |
| LNB Voltage | Selectable on/off, 13 VDC, 18 VDC per DiSEq 4.2 and 24 VDC at 500 mA maximum |
| Monitor Functions | Eb/N0 estimate, corrected BER, frequency offset, buffer fill state, receive signal level |
| DoubleTalk Carrier-in-Carrier | |
| Delay Range | 0 to 330 ms |
|
Power Spectral Density Ratio (Interferer to Desired) |
BSPK/QPSK/8PSK/8-QAM: –7 dB to +11 dB 16-QAM: -7 dB to +7 dB |
| Maximum Symbol Rate Ratio | 3:1 (TX:RX or RX:TX) |
| Eb/No Degradation |
0 dB Power Spectral Density Ratio BPSK/QPSK/OQPSK: 0.3 dB 8-QAM: 0.4 dB 8PSK: 0.5 dB 8-ARY: 0.4 dB 16-QAM: 0.6 dB 16-ARY: 0.6 dB 32-ARY: 0.6 dB +10 dB power spectral density ratio Additional 0.3 dB |
| Satellite Restrictions |
Satellite in “loop-back” mode (i.e., the transmit station can receive itself) “Non-processing” satellite (i.e., does not demodulate or remodulate the signal) |
| Environmental and Physical | |
| Temperature |
Operating: 0 to 50°C (32 to 122°F) Storage: -25 to 85°C (-13 to 185°F) |
| Power Supply |
100 – 240 VAC, +6%/-10%, 50/60 Hz, auto sensing -24 VDC (HW option) -48 VDC (HW option) |
| Dimensions (1RU) (height x width x depth) | 1.75” x 19.0” x 17.65” (4.4 x 48 x 44.8 cm) approximate |
| Weight | 10.8 lbs (4.9 kg) maximum, with all option modules and 48 VDC BUC power supply installed |
| CE Mark |
EN 301 489-1 (ERM) EN55022 (Emissions) EN55024 (Immunity) EN 61000‐3‐2 EN 61000‐3‐3 EN60950 (Safety) |
| FCC | FCC Part 15, Subpart B |
