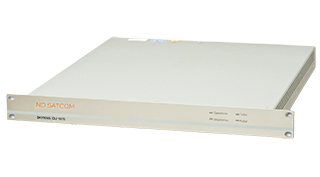

Спутниковый модем ND SATCOM SKYWAN 1070
- Производитель
- ND SATCOM
- Диапазон
- L
- Тип оборудования
- Спутниковый модем
Он полностью совместим с существующими терминалами серии SKYWAN 7000 и поддерживает несколько IP-интерфейсов.
В целях повышения безопасности, для трафика управления используется выделенный IP-интерфейс.
Терминал SKYWAN 1070 доступен с различными встроенными опциями переменного и постоянного тока для питания широкого спектра блоков ODU.
CONFIGURATION
Network Topology True full mesh / star / hybrid / multi-star
Encoding Turbo-Φ
Modulation & FEC Code Rates QPSK: 1/3 / 2/5 / 4/9 / 1/2 / 2/3 / 3/4 / 4/5 / 5/6 / 6/7
8PSK: 2/3 / 3/4 / 4/5 / 5/6 / 6/7
BPSK: 1/3 / 2/5 / 4/9 / 1/2 / 2/3
Eb / No 2.6 dB at FEC 1/2 with BER 10-7
Channel Spacing / Roll-off 1.2 , 1.4 / 0.2 , 0.4
Modem Symbol Rate 100 KBaud – 6 MBaud, variable in 1 KBaud increments
User Data Rate 64 Kbit/s – 10 Mbit/s
Satellite Channel Access Type MF-TDMA / data rate hopping / multiple carrier hopping / transponder hopping/ cross-strapping / Doppler Shift
/compensation / optional WGS compliant modemAccess Scheme Bandwidth-on-Demand / real-time / non-real-time / guaranteed throughput / QoS classes
Security Optional LINK ENCRYPTION with AES 256 Encryption and internal Key Management
INTERFACES
LAN Interface 1 x 10/100/1000 Mbit/s plus 3 x 10/100 Mbit/s Ether net LAN / IEEE802.3 / RJ-45
Protocol Dynamic Routing / OSPF / Static Routing / Multicast / Load Balancing / TCP / TCP-Acceleration / UDP /
IGMP / VoIP / QoS / Diffserv / Robust Header Compression / Platinum Dynamic QoS for VoIP and Live Video
Modulator L-Band 950 – 1750 MHz / 0… - 30 dBm / N connector, female, 50ohm / optional 24 VDC, max. 3.5 A
Demodulator L-Band 950 – 1750 MHz / -35…-75 dBm / N connector, female, 50ohm / optional 24 VDC, max. 700 mA
10 MHz reference signal Configurable on Tx / Rx / reference clock output, SMA female connector, 50ohm
RADIOS *
RFT 5000 C-Band 20 / 40 / 60 W Ku-Band 10 / 20 / 35 W Extended Ku-Band 20 / 30 W
COMPACT (NJR BUC) C-Band 5 W Ku-Band 3, 4 and 6 W
Others Radios with L-Band interface, LNBs with external clock reference from SKYWAN
NETWORK MANAGEMENT *
NMS Platform SKYWAN NMS
NMS Architecture Central station, additional stations may be used for monitoring
IDU Management Interfaces Remote access with in-band management (from central NMS station over satellite) via SNMP
Remote access with dial-in (via public telephone network with attached modem)
Local access via integrated console port EIA-232
Lineup Manager Easy tool to commission remote SKYWAN station via local console port or Ethernet port
Security NMS & Station Authentication of NMS station / dedicated IP Network for management / authentication of remote station
Dimensions (L x W x H) 1 RU x 415 mm (19“) x 513,6 mm
Weight 4.3 kg (including built-in power supply for ODU)
Power Supply IDU Auto sensing 100 – 240 V +/- 10% / inp ut frequency 47 – 63 Hz /
Option: 24V DC, up to 6,5 A via external source
Power Consumption 50 VA nominal (without external load) 160 VA nominal (with external load of max. 4 A at 24 VDC)
Temperature Range +0 °C to +50 °C
Humidity 5% - 85 %
