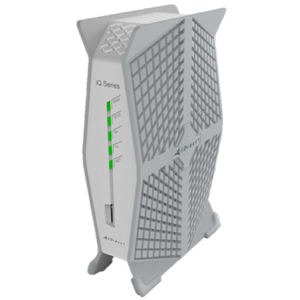

Спутниковый модем IDIRECT IQ DESKTOP
- Производитель
- ST ENGINEERING
- Диапазон
- L
- Тип оборудования
- Спутниковый модем
IQ Desktop является частью серии iDirect следующего поколения DVB-S2/S2X, основанной на оборудовании будущего, с программной архитектурой для максимальной гибкости и расширения. IQ Desktop обладает высокой масштабируемостью и идеально подходит для широкополосного доступа и приложений для небольших предприятий и совместим как с Evolution®, так и с iDirect Velocity®.
|
Network Configuration |
||||
|
Network Topology |
DVB-S2*/S2X* with Adaptive TDMA Returns |
|||
|
|
Downstream |
|
Upstream |
|
|
|
DVB-S2X*/ACM |
DVB-S2*/ACM |
Adaptive TDMA |
|
|
Modulation |
QPSK, 8PSK, 16APSK, 32APSK, 64APSK, 128APSK, 256APSK |
QPSK, 8PSK, 16APSK, 32APSK |
BPSK, QPSK, 8PSK, 16QAM* |
|
|
Symbol Rates |
5 to 100 Msps |
1 to 45 Msps |
128 ksps to 7.5 Msps |
|
|
Interfaces |
||||
|
SatCom Interfaces |
Tx: L-band/F-Type, 950-2400 MHz, 75Ω Rx: L-band/F-Type, 950-2150MHz, 75 Ω |
|||
|
|
RF Power Transmit: Pmax of +0 dBm to Pmin of -35 dBm RF Power Receive: Max composite wide band receive level: a) -5 dBm for symbol rates ≤ 45 Msps b) 10 dB above wanted signal power level for symbol rates > 45 Msps Minimum Receive Level: -115+10*log (Fsym(sps)) single carrier |
|
||
|
Available BUC Power (IFL) |
+24V, 2.0A** max available @ connector Tx Out |
|||
|
Available LNB Power (IFL) |
13, 18, 21V @ 0.5A**, 22kHz tone @ connector Rx in |
|||
|
Data Interfaces I/O |
LAN: Two 10/100/1000 Mbps Ethernet - 1 for user traffic, 1 for management traffic RJ45 console |
|||
|
Protocols Supported |
TCP, UDP, ICMP, DHCP, NAT/PAT, DNS, ROHCv2, RIPv2, IGMPv2, IGMPv3, ICMP, IPv4 (IPv6 over L2oS), L3 |
|||
|
Traffic Engineering |
QoS, CIR (Static and Dynamic) |
|||
|
Licensable Features |
Inbound throughput, 256-bit AES Encryption* |
|||
|
Mechanical/Environmental |
||||
|
Size |
W 4.78 cm (1.88 in) x D 11.43 cm (4.5 in) x H 18.26 cm (7.19 in) |
|||
|
Weight |
0.37 kg, (0.83lb) |
|||
|
Temperature |
Operational: 0° to 40°C (32° to 104°F), 0° to 35°C (32° to 95°F) at 10,000 ft |
|||
|
Storage: -40° to +85°C (-40° to +185°F) |
||||
|
Humidity |
Operational: 10-90% non-condensing |
|||
|
Storage: 5-95% non-condensing |
||||
|
Input Voltage |
100-240 VAC, 50-60Hz |
|||
