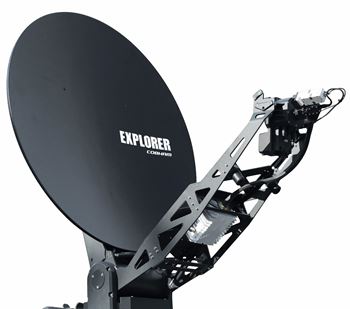

Drive Away антенна COBHAM EXPLORER 8120
- Производитель
- COBHAM
- Диапазон
- Ku
- Тип оборудования
- Drive Away антенна
|
ANTENNA CHARACTERISTICS |
Ku-Band |
|
|
|
Receive |
Transmit |
|
Frequency (GHz) |
10.7 -12.75 |
13.75 -14.5 |
|
Antenna Gain (dBi ± 0.2) |
40.7-42.2 |
43.3-44 |
|
Cross Pol Isolation (dB) within 1dB beamwidth |
26 |
26 |
|
Cross Pol Isolation (dB) On-Axis |
>30 |
>35 |
|
|
35 |
80 w/filter |
|
Beamwidth (degrees) at -3dB |
1.4 - 1.6 |
1.2 - 1.3 |
|
Beamwidth (degrees) at -10dB |
2.4 - 2.8 |
2.1 - 2.2 |
|
Antenna Noise Temp. (°K) at 30° Elevation |
55° |
|
|
G/T - Comm (dB/°K) |
20.8 @ 30° EL Midband |
|
|
Radiation Pattern Compliance |
FCC §25.209, ITU-R S.580, EESS 502 |
|
|
Polarization |
Linear Orthogonal Std |
|
|
Standard BUC Options |
8W / 20W |
|
|
EIRP with 8W / 20W BUC Options (dBW) |
52.8 dBW / 56.8 dBW nom @ midband |
|
