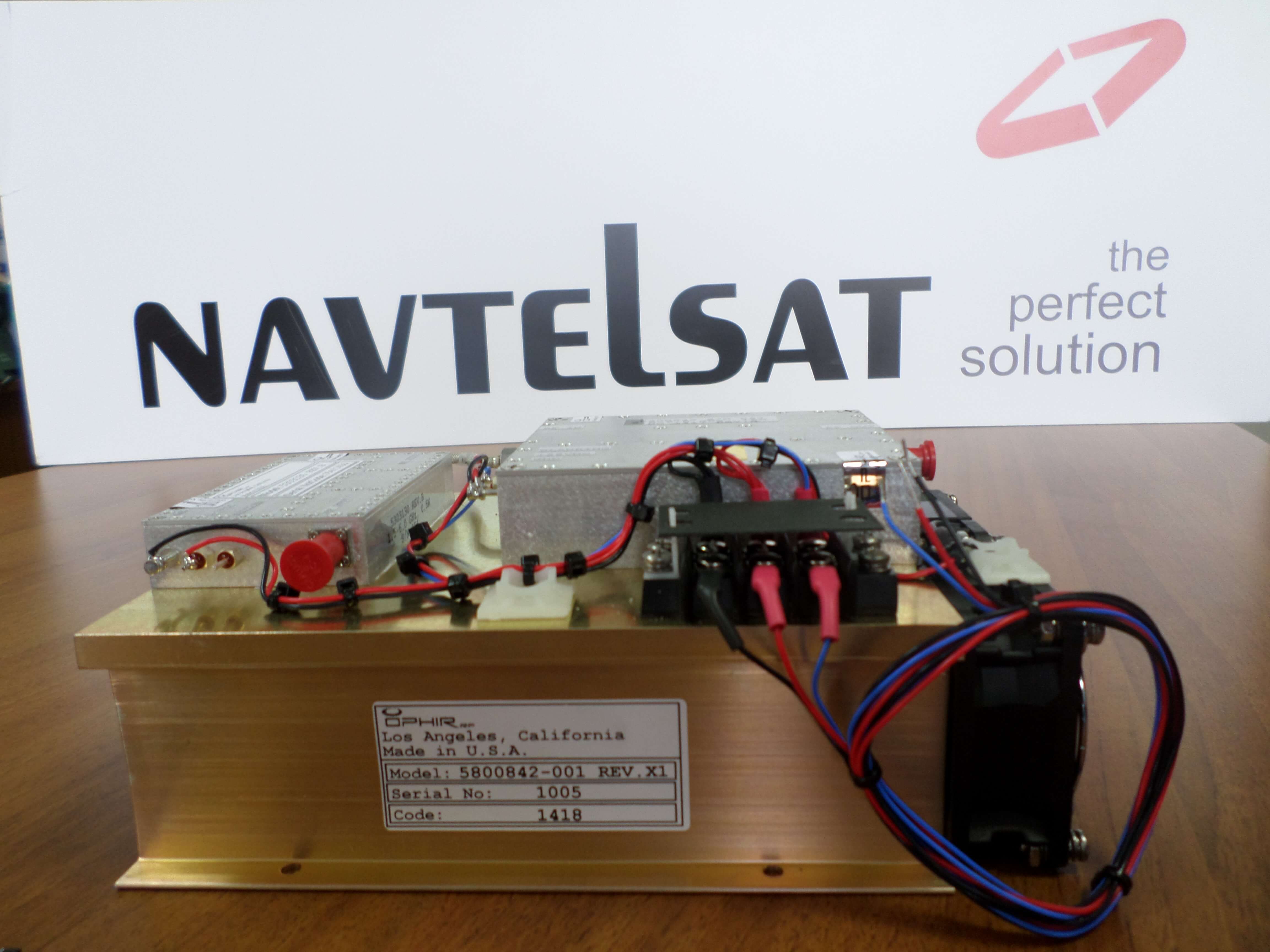

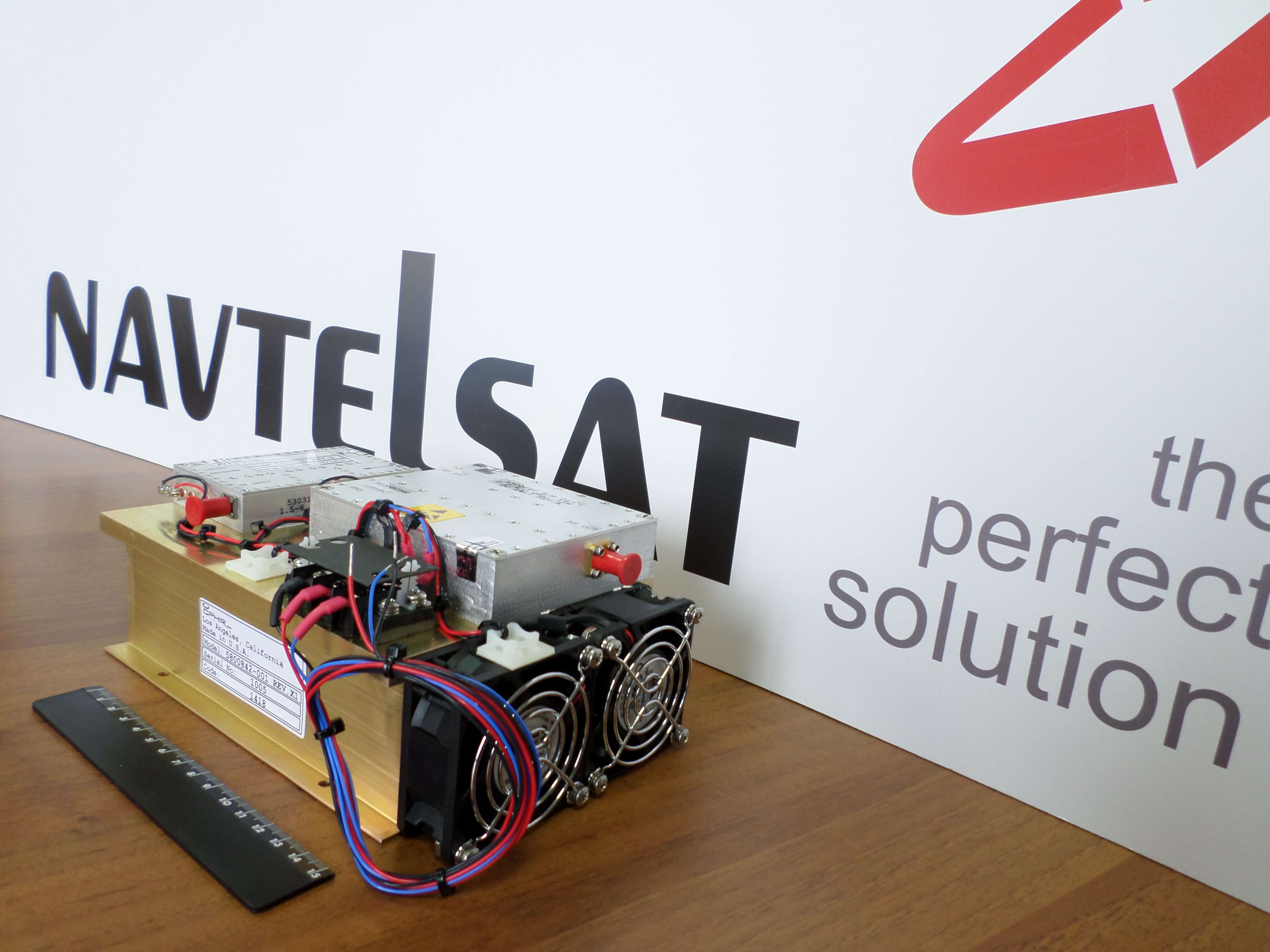

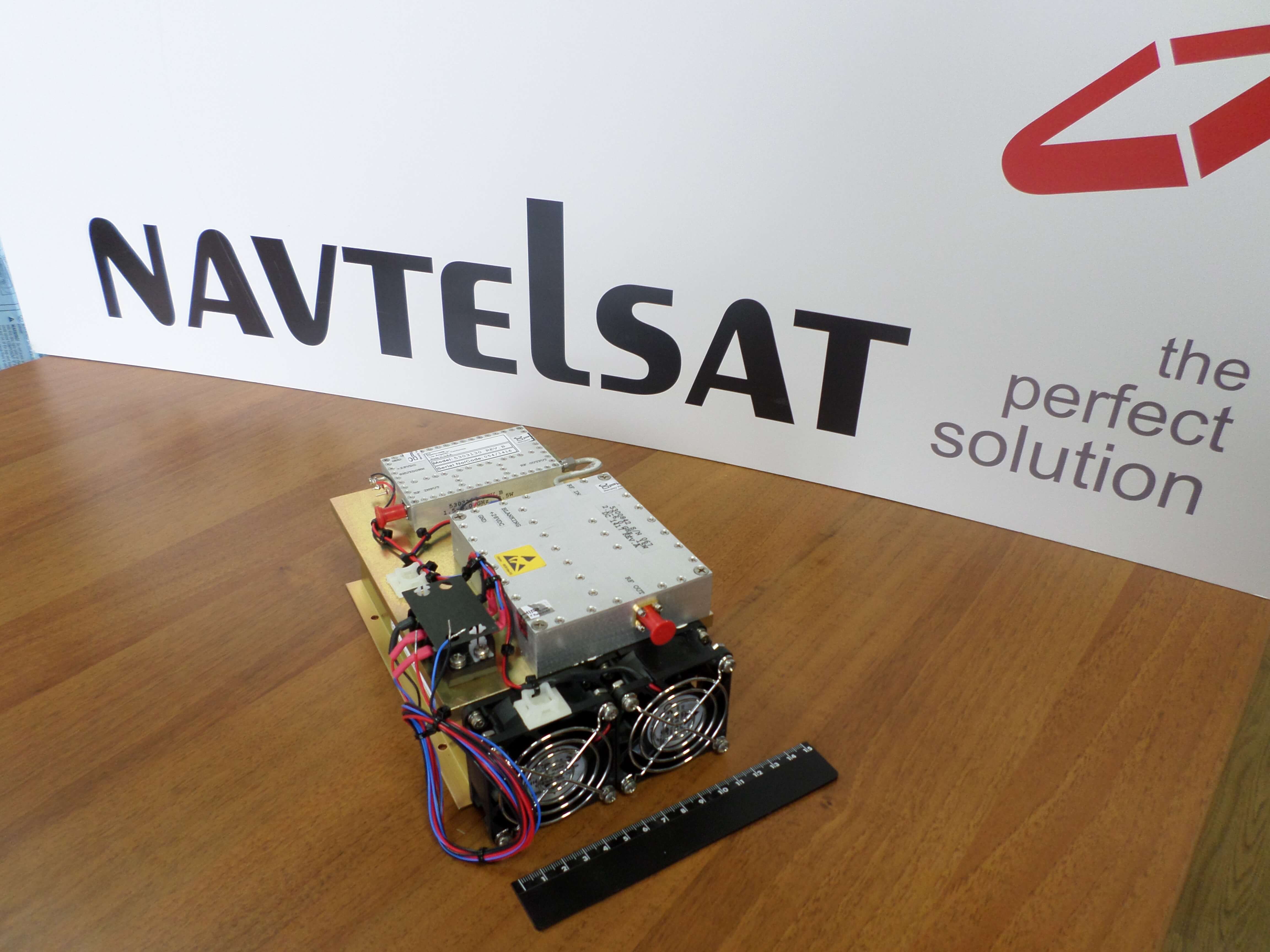

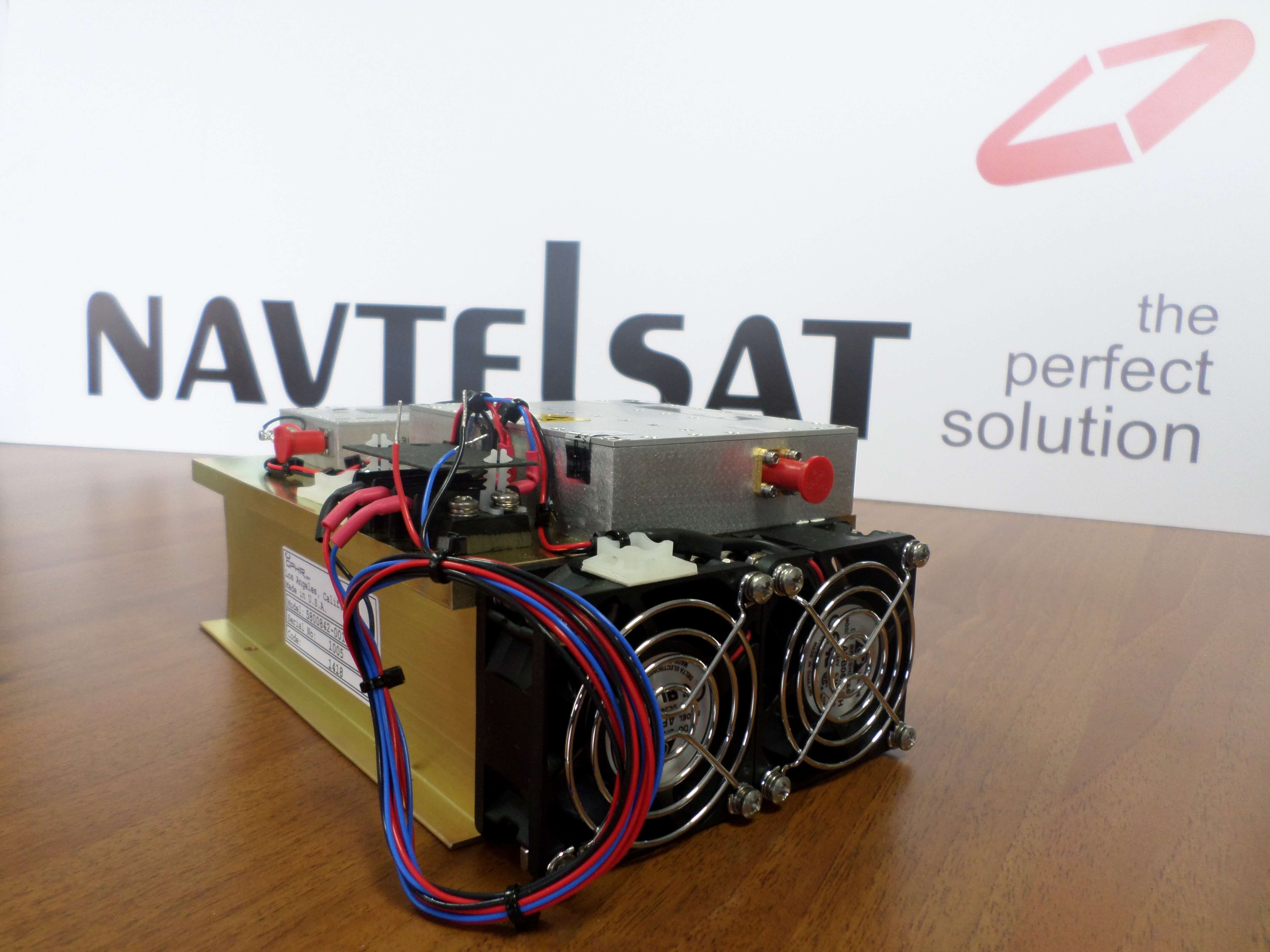

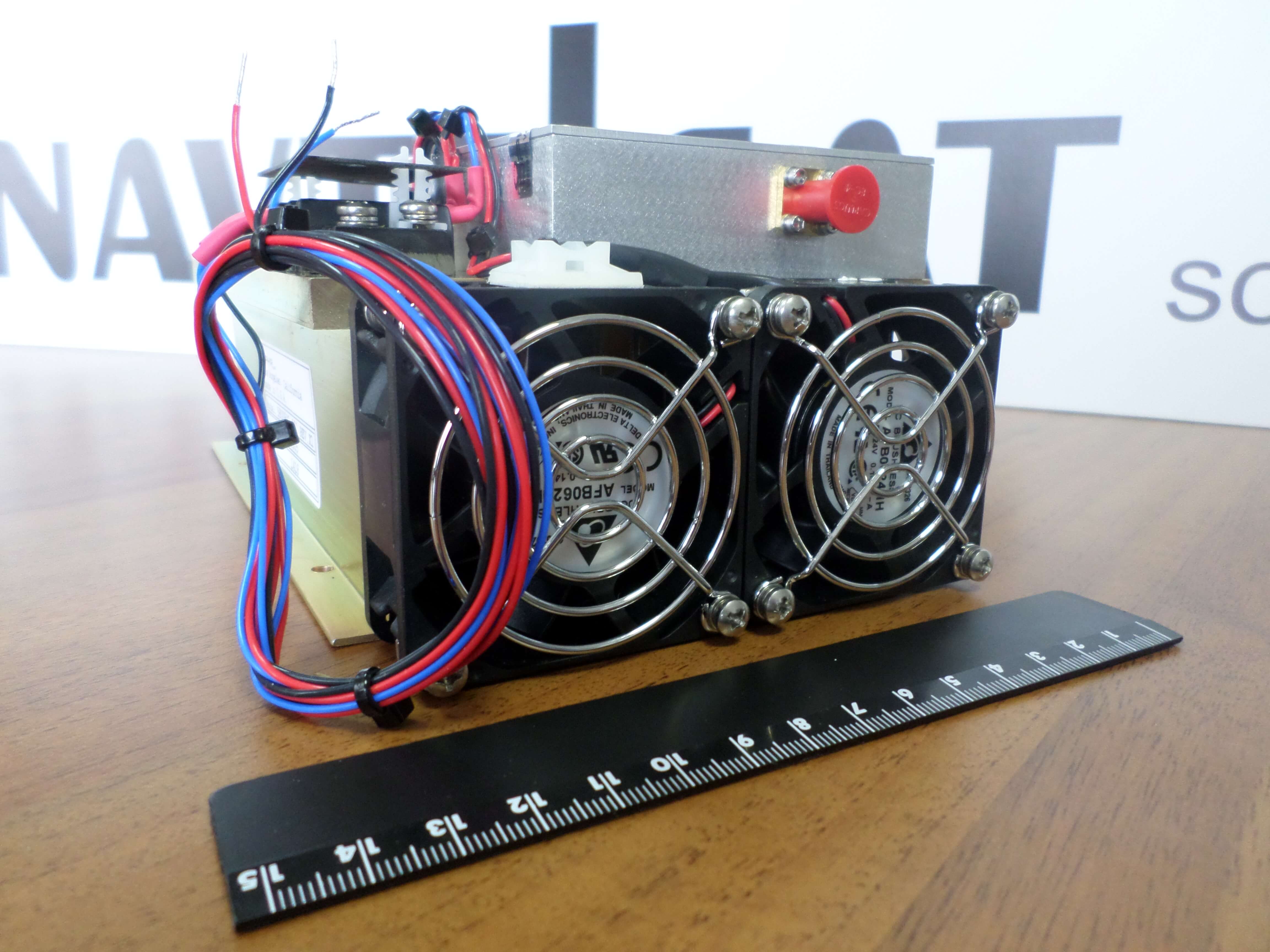

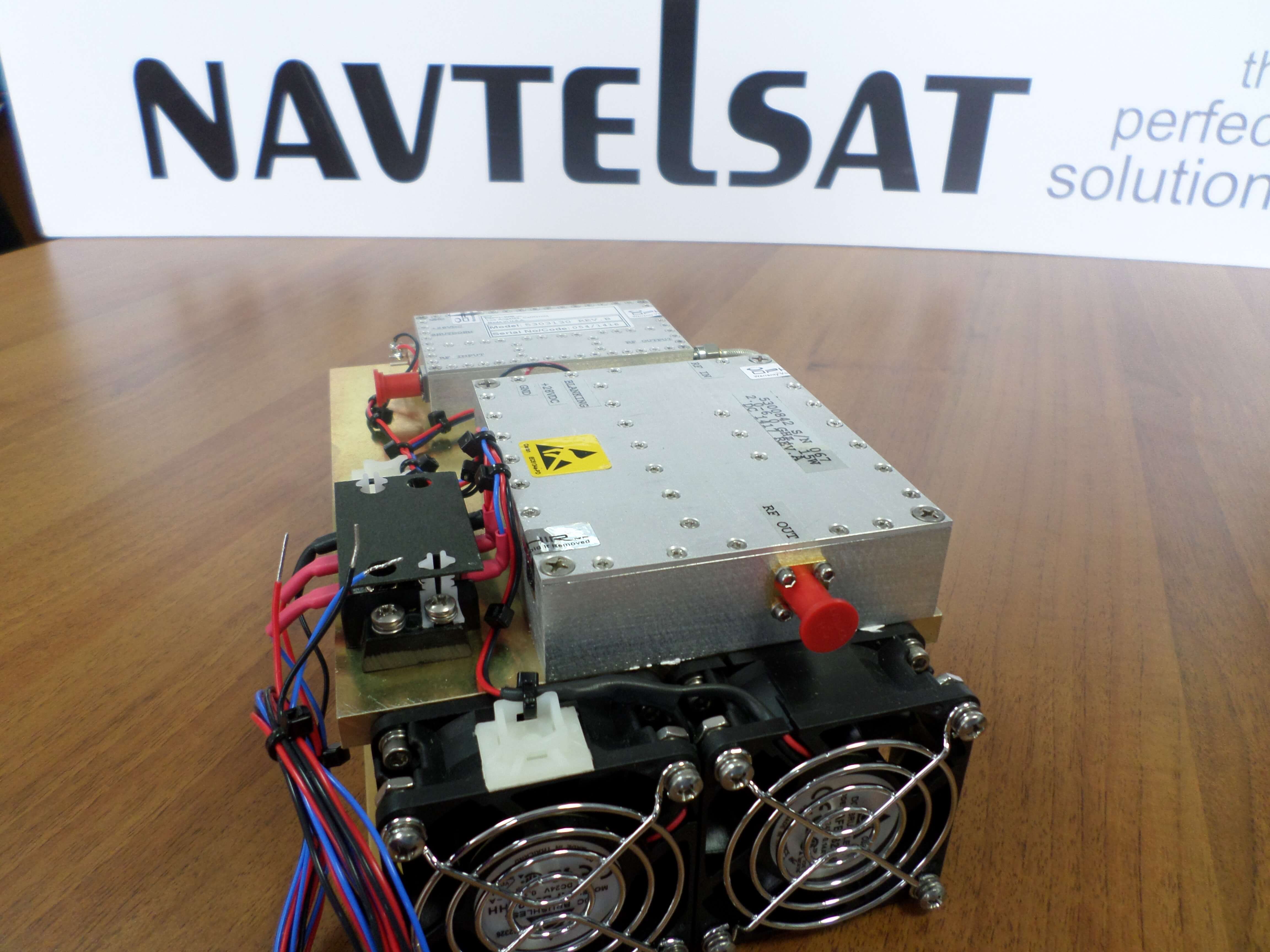

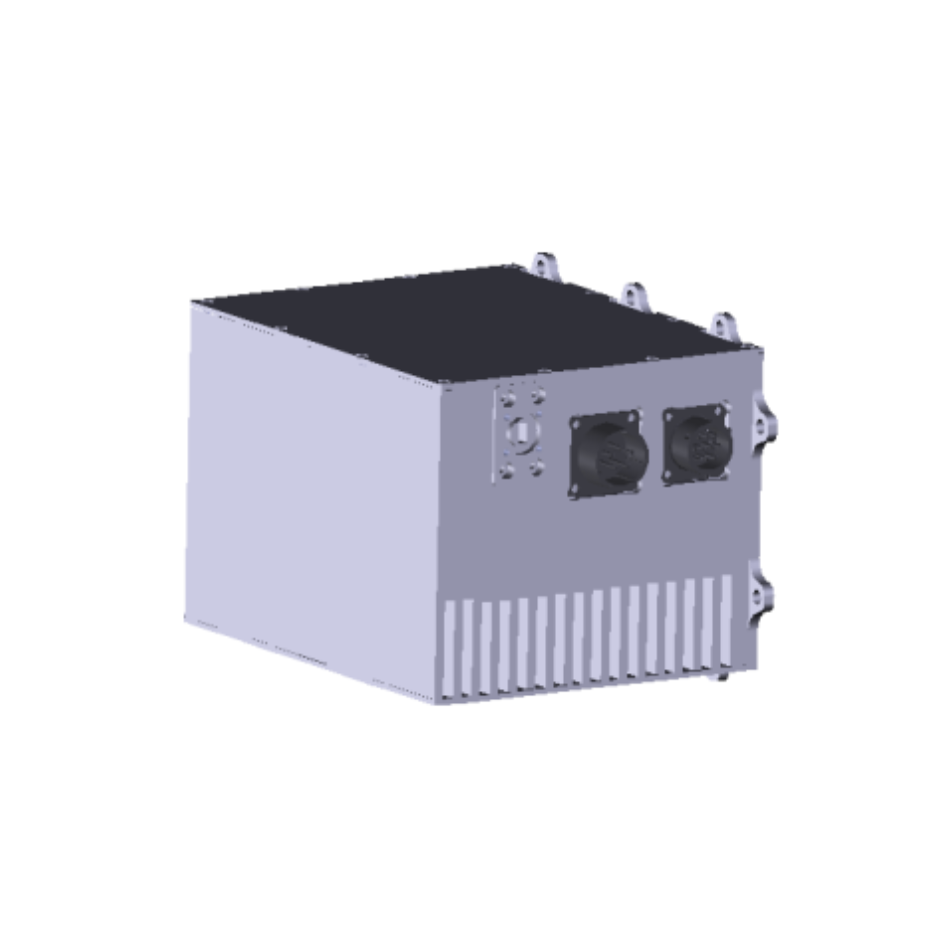

Твердотельный усилитель 58000842-001 5W 2-6 ГГц
- Производитель
- Ophir
- Диапазон
- 2.0-6.0 ГГц
- Тип оборудования
- SSPA
|
Electrical |
||
|
1 |
Frequency Range |
2.0-6.0 GHz |
|
2 |
Saturated Output Power |
5 Watts Typ. |
|
3 |
Power at P1dB Compression |
2.5 Watts Min |
|
3 |
Small Signal Gain |
+40 dB min |
|
4 |
Small Gain Flatness |
+ 2.5 dB max |
|
5 |
IP3 |
+46 dBm typical |
|
6 |
Input VSWR |
2:1 max |
|
7 |
Harmonics |
-20 dBc typical @ 5 Watts |
|
8 |
Spurious Signals |
< -60 dBc typical @ 5 Watts |
|
9 |
Input/Output Impedance |
50 Ohms nominal |
|
10 |
DC Input Current |
3 Amps max |
|
11 |
DC Input |
24 –30 VDC* |
|
12 |
RF Input |
+3 dBm max |
|
13 |
RF Input Signal Format |
CW/AM/FM/PM/Pulse |
|
14 |
Class of Operation |
A/AB |
|
15 |
Blanking |
On = Open 3-5 Vdc Off = <0.5 Vdc |
|
Mechanical |
||
|
16 |
Dimensions (W Heatsink and Fans) |
L 9” x W 5.2” x H 4.25” |
|
17 |
Weight (W Heatsink and Fans) |
4.20 Lbs. |
|
18 |
Connectors |
RF IN/Out: SMA female DC terminals: Voltage in |
|
19 |
Grounding |
Chassis |
|
20 |
Cooling |
Adequate Heatsink Required |
|
Environmental |
||
|
21 |
Baseplate Temperature |
0º C to +50º C |
|
22 |
Operating Humidity |
95% Non-condensing |
|
23 |
Operating Altitude |
Up to 10,000’ Above Sea Level |
|
24 |
Shock and Vibration |
Normal Truck Transport |
