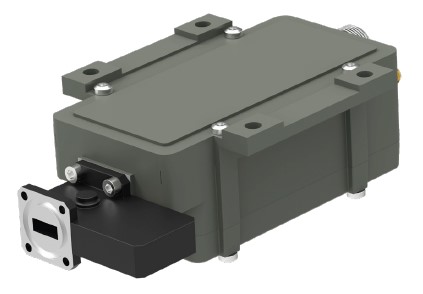

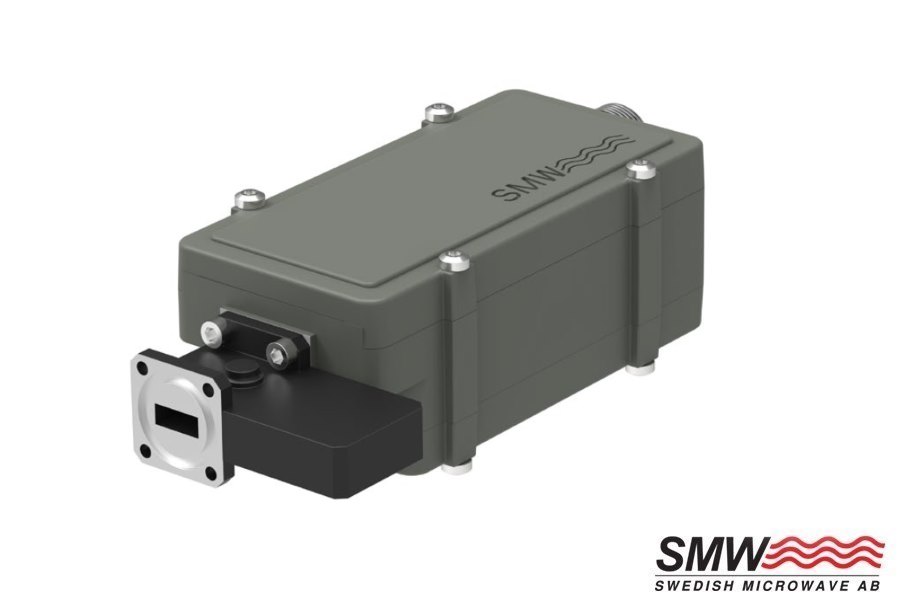

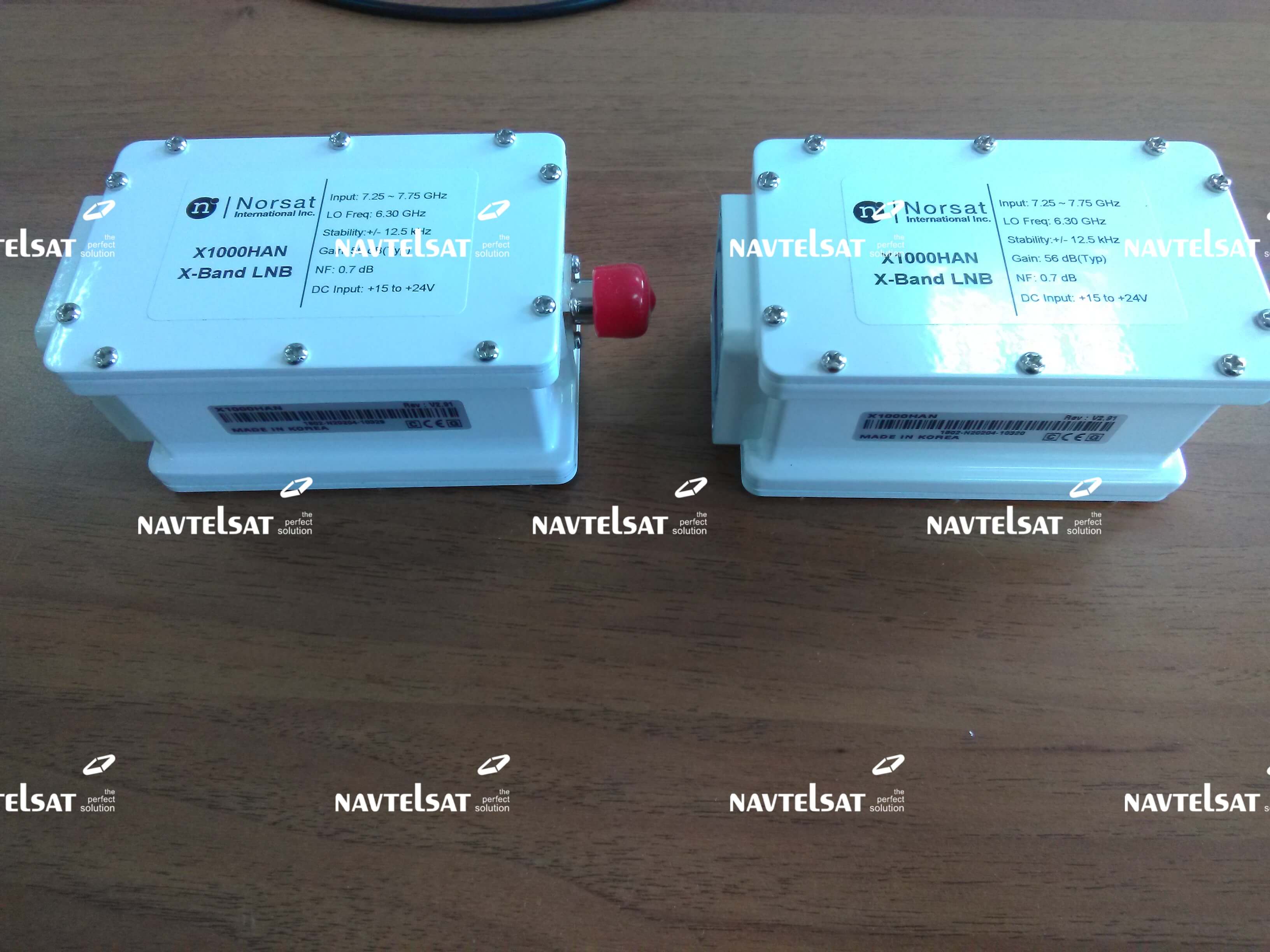

МШУ X-BAND PLL X1000HA

Noise figure

0.7 dB

L.O. stability

±12.5 kHz

Phase noise (SSB) max

-70dBc at 1kHz

-78dBc at 10kHz

-95dBc at 100kHz

Input VSWR

2.0 : 1

Output VSWR

2.0 : 1

Conversion gain

56 dB

Output P1dB

5 dBm

Power requirements

+15 to +24 V supplied through

center conductor of IF cable

Current drain

230 mA

Input Waveguide

WR112

Dimensions

137 (L) x 70 (W) x 59 (H) mm

(5.4 x 2.8 x 2.3 in)

Weight

600 g

Temperature Range

-40 to + 60°C

Input frequency (GHz)

7.25 to 7.75

L.O. frequency (GHz)

6.30

Output frequency (MHz)

950 to 1450
