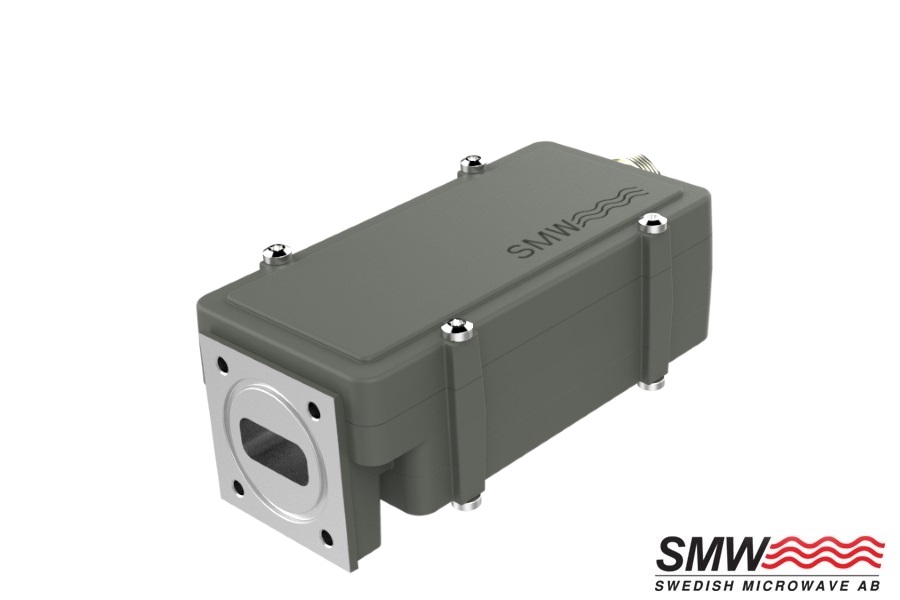

МШУ Ku Band LNB

Нет в наличии
Сравнить

Производитель
Swedish Microwave
Диапазон
Ku-band
Тип оборудования
LNB

Model

9.75 (10.70-11.80 GHz), 10.00 (10.95-11.80 GHz), 10.0 E (10.95-12.10 GHz), 10.25 (11.20-11.70 GHz), 10.50 (11.45-12.20 GHz), 10.60 (11.70-12.75 GHz), 10.7 (11.65-12.75 GHz), 10.75 (11.70-12.75 GHz), 11.20 (12.20-12.75 GHz), 11.25 (12.20-12.75 GHz), 11.30 (12.25-12.75 GHz)

Internal/External reference

±5 kHz -20 to +70ºC (±10 kHz -40 to +80ºC), ±10 kHz -20 to +70ºC (±15 kHz -40 to +80ºC), ext.10 MHz ref.

Output connector

F-connector, N-connector, SMA-connector

Options:

Customized Gain, variation, LO frequency and frequency range, Separate DC input connector F-, N- or SMA-type,
Twin-LNB with OMT + bend and protecting cover, SMA connector input via transition.

Gain

40 dB typ, 48 dB typ, 48 dB max, 50 dB typ, 50 dB max, 52 dB typ, 55 dB typ, 56 dB typ, 60 dB typ
