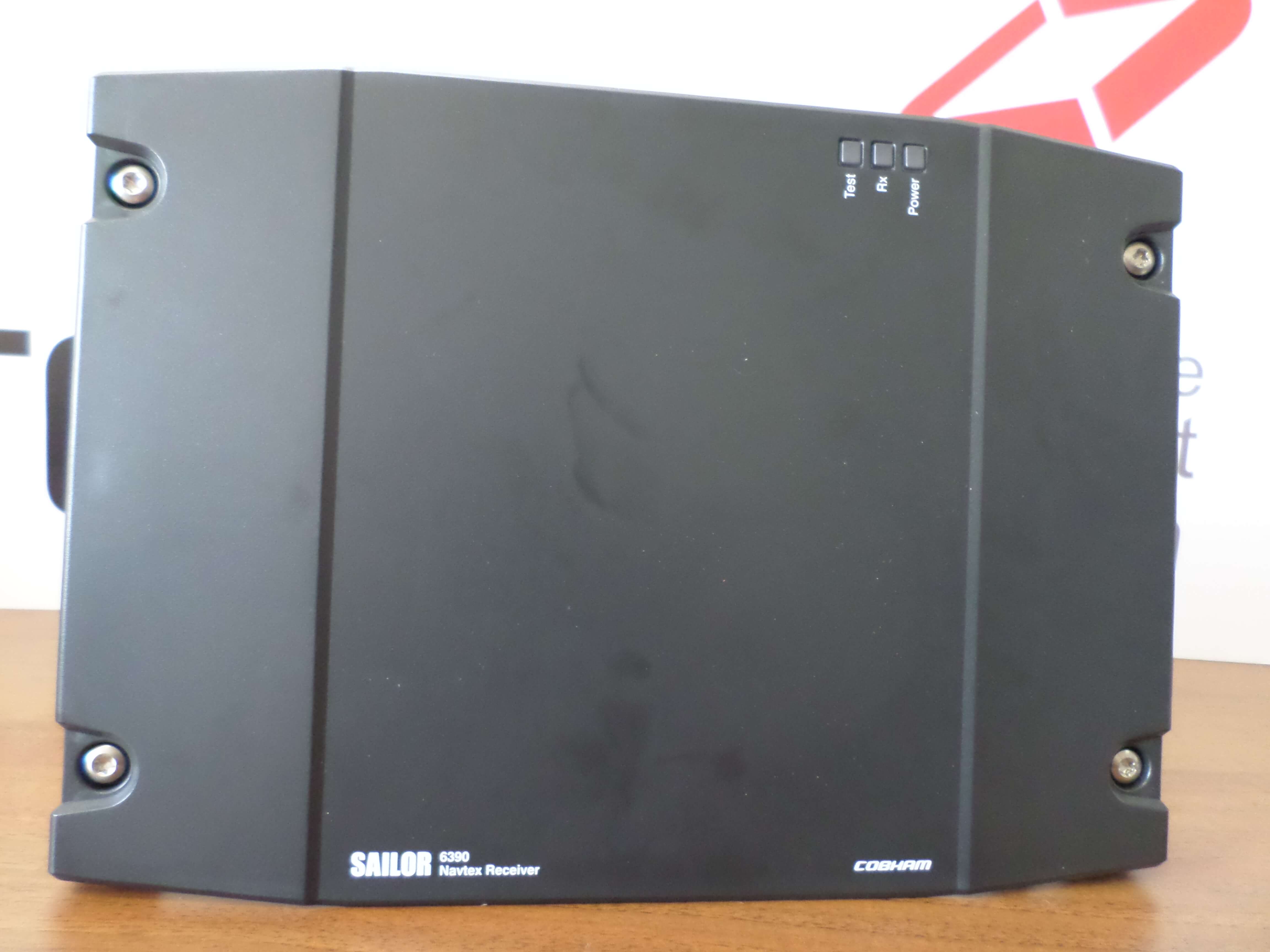

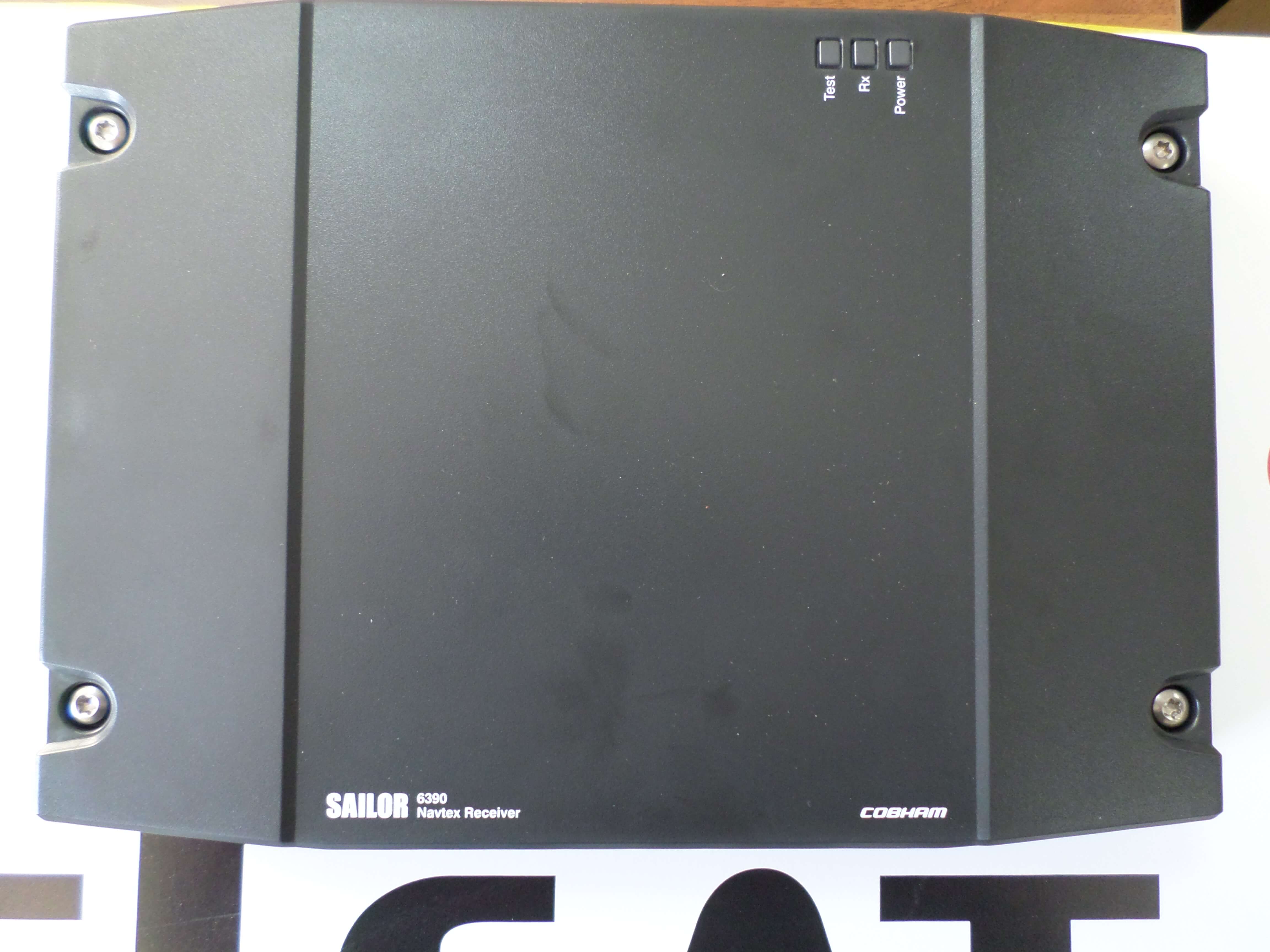

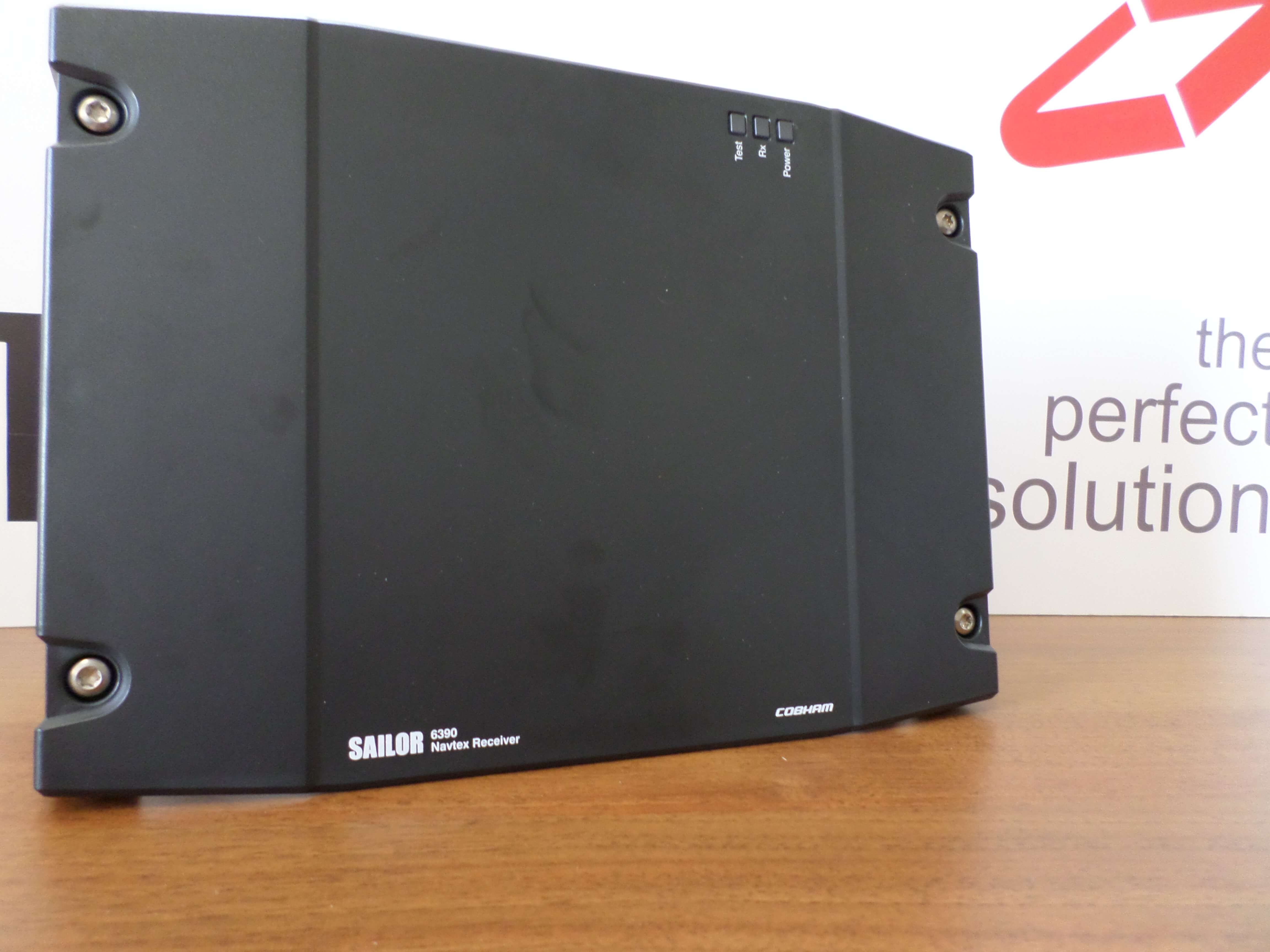

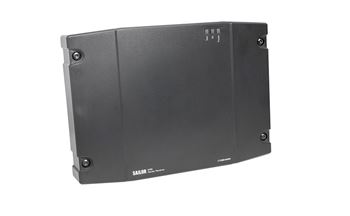

Приемник Навтекс COBHAM SAILOR 6390
- Производитель
- COBHAM
- Диапазон
- MF
- Тип оборудования
- Приемник Навтекс
SAILOR 6390 принимает сообщения Navtex на международных частотах 490 кГц, 518 кГц и 4209,5 кГц.
SAILOR 6390 Navtex может использоваться как автономный приемник, и в то же время допускает интеграцию с любой навигационной системой (INS).
|
TECHNICAL SPECIFICATIONS |
|
|
Navtex Receiver |
490 kHz, 518 kHz and 4209.5 kHz simultaneous reception SW updatable to future 500 kHz NAVDAT Support for both active and passive antenna (12V@60mA antenna supply) |
|
Weight |
1.3 kg |
|
Temperature |
-15°C to 55°C - Operational -15°C to 55°C - Storage |
|
Sensitivity |
490-518 kHz - 12dBuV@10ohm/150pF - 6dBuV@50ohm 4209,5 kHz - 12dBuV@10ohm/150pF - 6dBuV@50ohm Excellent interference rejection and blocking immunity |
|
POWER SUPPLY AND CONSUMPTION |
|
|
DC input range (isolated) |
12 to 24VDC nominal supply voltage (10.8 - 31.2VDC) |
|
Typical power consumption |
Typical 6.5W |
|
INTERFACE |
|
|
Relay for alarm output |
|
|
TNC antenna connector |
|
|
Dual LAN interface (RSTP support) |
|
|
Remote on/off |
|
|
NMEA0183 INS Support (in/out) |
|
|
NMEA0183 GPS input (or GPS input via LAN) |
|
|
Printer support via LAN |
|
|
600ohm audio interface for e.g. troubleshooting |
|
|
NMEA SENTENCES |
|
|
NMEA0183 input, EN61162-1 (ACK ,NRM and CRQ sentences) |
|
|
NMEA0183 output, EN61162-1 (ALR, NRM and NRX sentences) |
|
|
GPS input, RMC, ZDA sentences |
|
|
Furthermore proprietary NMEA sentences (which will be enclosed in the manual) |
|
|
SOFTWARE FEATURES |
|
|
Navtex message sorting and filtering |
|
|
Software upgradable with TMA (Thrane Management Application) |
|
|
Validation of RF-reception by LED (and network status) |
|
|
Self-test validation by LED (and network status) |
|
