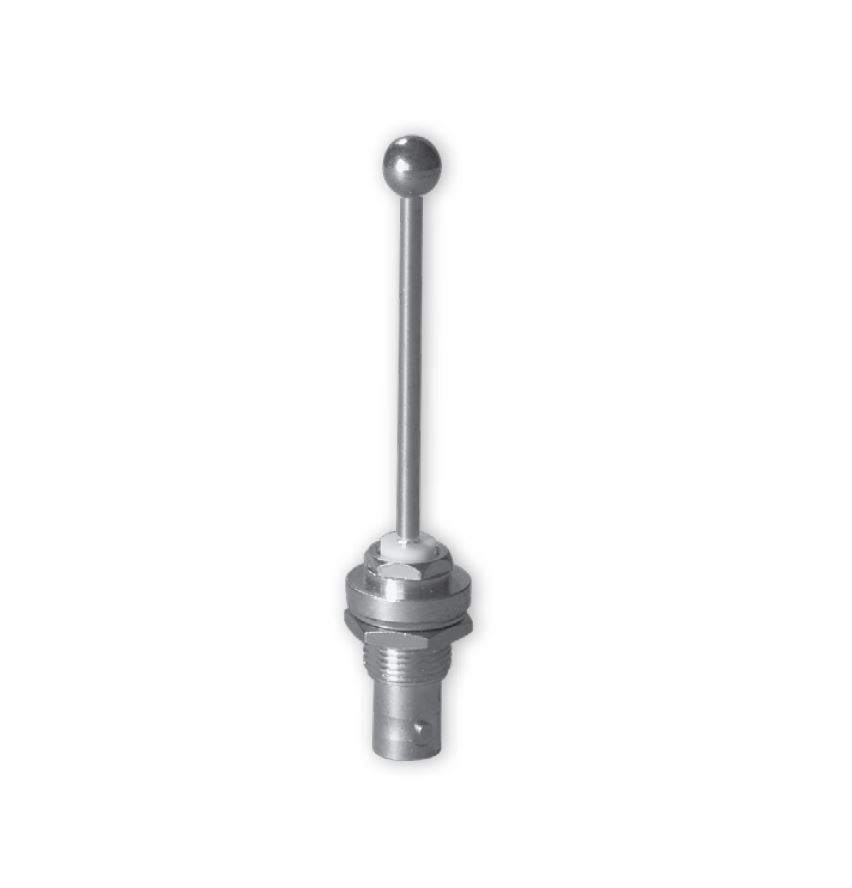

Антенна Comant CI 101

Electrical

Frequency                               1030 to 1090 MHz

VSWR                                     1.5:1 1030 MHz /Return Loss 14.0 dB

                                                1.5:1 1090 MHz /Return Loss 14.0 dB

Polarization                             Vertical

Radiation Pattern                    Equivalent of 1/4 wave stub typical

Impedance RF                        50 Ohms

Resistance DC                        Open Circuit

Power RF                                1.0 KW Peak

Mechanical

Weight                                    0.06 lb. Maximum

Height                                     3.33 in. Maximum

Finish                                      Tin-nickel Alloy

Connector                               BNC (Female)

Environmental

Temperature                          -54C to +55C

Altitude                                  30,000 ft
