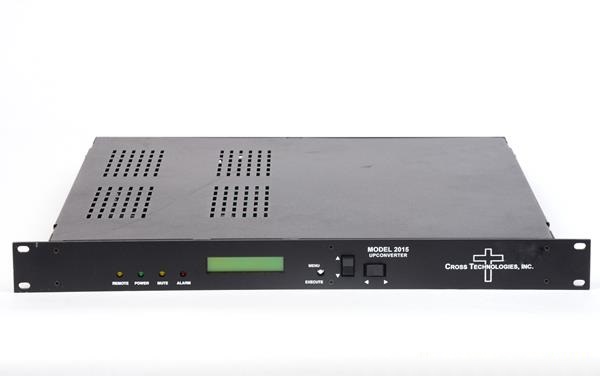

2015-03 Upconverter

Input Characteristics (IF)

Impedance/Return Loss 75 Ω /18 dB

Frequency 70 ± 18 MHZ

Input Level -40 to -10 dBm

Output Characteristics (RF)

Impedance/Return Loss 75 Ω/12 dB

Frequency 950 to 1525 MHz

Output level 0 to -20 dBm

Output 1 dB comp. +5 dBm

Channel Characteristics

Gain range (adjustable) -10.0 to +30.0 dB, 1±1 dB steps

Frequency Response ±1.5 dB, 950 - 1525 MHz; ± 0.5 dB, 36 MHz BW; ±1.0 dB, 40 MHz BW

Spurious Response < -50 dBC, in band

Group Delay, max 0.015 ns/MHz2 parabolic; 0.05 ns/MHz linear; 1 ns ripple

Frequency Sense Non-inverting

Synthesizer Characteristics

Frequency Accuracy ± 1.0 ppm max over temp (±0.01 ppm, option H)

Frequency Step 1.0 MHz (125 kHz to 1 kHz step options available)

10 MHz Level (In or Out) 3 dBm, ± 3 dB, 75 ohms (option E)

Controls, Indicators

Freq/Gain Selection direct readout LCD; manual or remote selection

Pwr; Alarm; Rem; Mute Green LED; Red LED; Yellow LED; Yellow LED

Remote RS232C, 9600 baud (RS485, Ethernet Optional)
