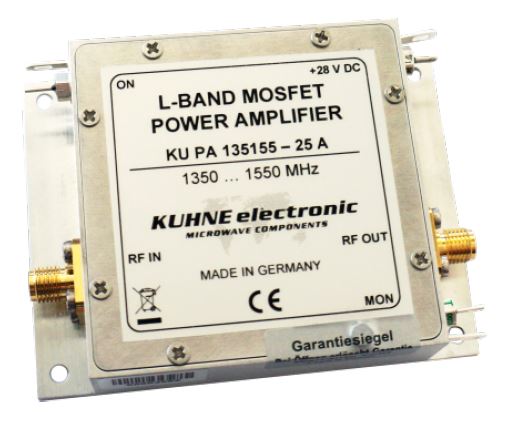

Усилитель KU PA 135155-25 A

Frequency range

1350..1550 MHz

Input power for P1dB

typ.    23 dBm

Maximum input power

29 dBm

Output power P1dB

min. 44 dBm (CW)
min. 25 W (CW)

Saturation power

min. 45,4 dBm
min. 35 W

Output power COFDM (1)

typ. 37.7 dBm
min. 5 W

Gain (small signal)

min. 21 dB

Gain flatness (small signal)

typ. +/- 1.5 dB

Harmonic rejection

typ. 20 dB @ 25 W

IM3 (2)

min. 35 dBc @ 40 dBm PEP

Efficiency

min. 46 % @ 30 W (CW)

Supply voltage

+28 V DC

Quiescent current

typ. 300 mA

Current consumption

max. 3.5 A

Forward detection

yes (diode detector)

Operating case temp. range

-20 ... +55 °C

VSWR of load

max. 1.8 : 1

Input connector / impedance

SMA-female / 50 ohms

Output connector / impedance

SMA-female / 50 ohms

Case

milled aluminium

Dimensions (mm)

80 x 60 x 20

(1)

Measured with QAM 64, single carrier, EVM: 2%

(2)

Measured 2-tone, frequency spacing: 1 MHz
